Schneider Electric Ethernet TCP/IP Connexium Managed Switch TCSESM083F2CU0

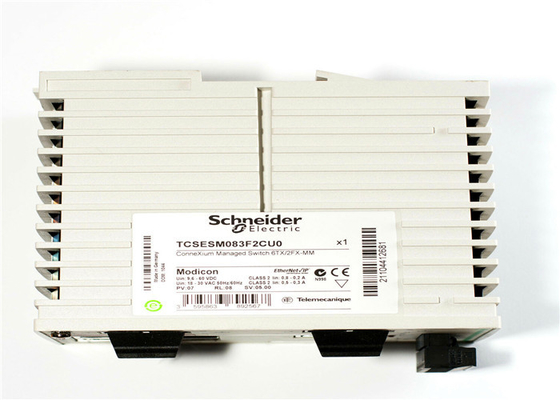

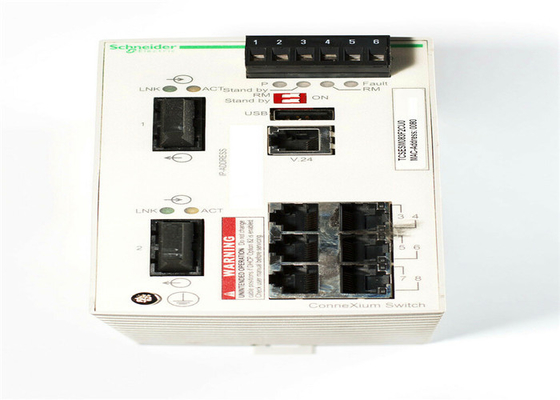

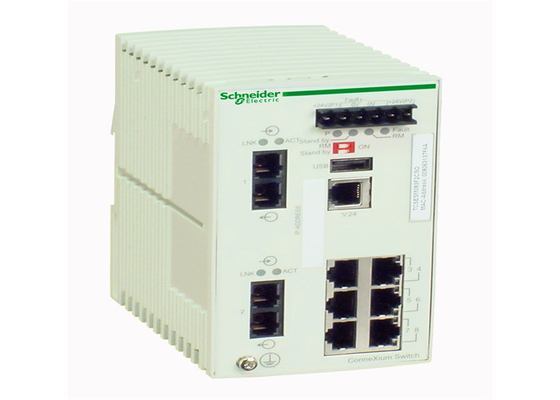

Large Image : Schneider Electric Ethernet TCP/IP Connexium Managed Switch TCSESM083F2CU0 Get Best Price

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Certification:	CE
Model Number:	TCSESM083F2CU0

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD

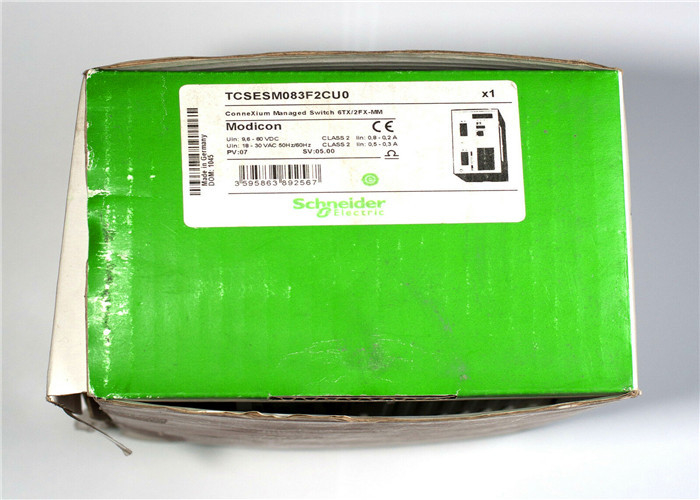

Packaging Details:	original box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Brand:	Schneider	Model:	TCSESM083F2CU0
Range Of Product:	Modicon Quantum Automation Platform	Origin Of Country:	France
Maximum Cable Distance Between Devices:	328.08 Ft (100 M) Copper Cable	[Us:	0
Highlight:	schneider electric modicon quantum , modicon tsx quantum

Schneider Electric Ethernet TCP/IP managed switch ConneXium TCSESM083F2CU0

Quick Details:

SCHNEIDER ELECTRIC
SQUARE D
TCSESM083F2CU0
ETHERNET TCP/IP MANAGED SWITCH
CONNEXIUM
6TX/2FX
MULTIMODE
24V
7.7W
One Year warrabty

SPECIFICATION

range of product	ConneXium
product or component type	Ethernet TCP/IP managed switch
concept	Transparent Ready
communication port protocol	Ethernet TCP/IP
port Ethernet	100BASE-FX - 2 fiber optic 10BASE-T/100BASE-TX - 6 copper cable
maximum number of switches in cascade	Unlimited

Complementary
integrated connection type	Duplex SC fiber optic Shielded RJ45 copper cable
transmission support medium	Twisted shielded pairs cable CAT 5E copper cable Multimode optical fiber fiber optic
maximum cable distance between devices	328.08 ft (100 m) copper cable
attenuation	11 dB 62.2/125 µm) 8 dB 50/125 µm)
Ethernet service	Configuration via web server Secure port Data stream control SNTP client SMTP V3 FDR Multicast filtering Rapid Scanning Tree Protocol (RSTP) Priority port VLAN IGMP Snooping
maximum number of switches in a ring	50
redundancy	Redundant single ring Redundant power supplies Ring coupling
[Us] rated supply voltage	24 V
supply voltage limits	9.6…60 V DC SELV 18…30 V AC SELV
power consumption in W	7.7 W
electrical connection	Removable connector 6 ways power supply
mounting support	35 mm symmetrical DIN rail
marking	CE
local signalling	P1 P2 power supplies 2 LEDs Fault 1 LED Ring manager 1 LED Stand-by 1 LED Copper port activity 1 LED per channel Copper port status 1 LED per channel
alarm output	1 voltfree contact 1 A
alarm function	Switch fault Redundancy ring fault Power supply fault Data link status
Ethernet cabling system	TF switches
width	2.91 in (74 mm)
height	5.16 in (131 mm)
depth	4.37 in (111 mm)
net weight	0.90 lb(US) (0.41 kg)

Environment
ambient air temperature for operation	32…140 °F (0…60 °C)
relative humidity	10…95 % without condensation
IP degree of protection	IP20
standards	UL 508 CSA C22.2 No 214 CSA C22.2 No 213 Class I Division 2 UL 1604 Class 1 Division 2 EN/IEC 61131-2
product certifications	GL C-Tick

Ordering and shipping details
Category	18225 - PLC NTWRK HRDWR & PROWORX SOFTWARE
Discount Schedule	PC41
GTIN	00785901637059
Package weight(Lbs)	0.68 kg (1.5 lb(US))
Returnability	Yes
Country of origin	DE

Offer Sustainability
Sustainable offer status	Green Premium product
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	No need of specific recycling operations
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
