Brand: | Schneider | Model: | 140NOC78000 |
---|---|---|---|
Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
Transmission Support Medium: | Twisted Pair | Port Ethernet: | RJ45 10BASE-T/100BASE-TX |
High Light: | schneider electric modicon quantum,plc control module |

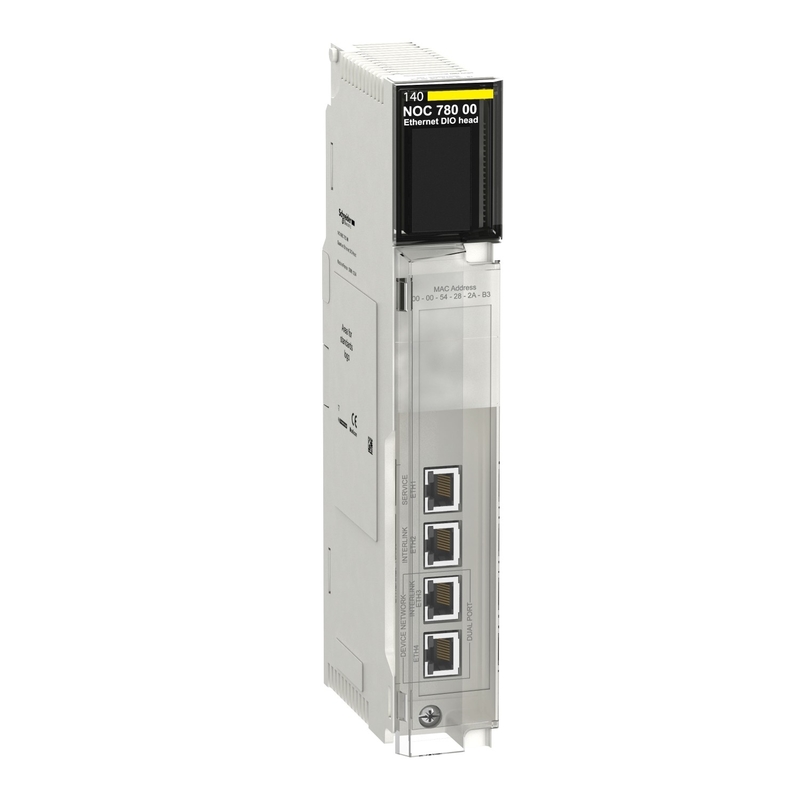

Electric Modicon Quantum Ethernet DIO network module - RJ45 - 10/10 140NOC78000
Quick Details:
SCHNEIDER ELECTRIC
MODICON
140NOC78000
TSX QUANTUM ETHERNET DIO HEAD
One Year warrabty
SPECIFICATION
Manufacturer |
Schneider Electric |
Series |
Modicon Quantum |
Module format |
Standard |
Product or component type |
Ethernet I/O head module |
Product compatibility |
140CPU6xxxx |
Communication port protocol |
Modbus TCP |
|
Ethernet/IP |
Exchange mode |
Full duplex |
Maximum number of connections |
128 |
Transmission rate |
10/100 Mbit/s |
Redundancy |
Yes hot standby redundant architecture |
Topology |
Daisy chain loop |
|
Redundant ring |
Web server |
Embedded |
Communication service |
FDR server |
|
CIP Explicit messaging (client messaging) |
|
Quality of Service (QoS) |
|
DHCP/BootP server |
|
Device Type Manager (DTM) |
|
CIP implicit messaging (I/O communication) |
|
NTP time synchronization |
|
Embedded 4-port switch |
|
SNMP agent |
Ethernet service |
Rapid Scanning Tree Protocol (RSTP) |
Transmission support medium |
Twisted pair |
Port Ethernet |
10BASE-T/100BASE-TX, connector type: RJ45 |
Marking |
CE |
Supply |
Via the power supply of the rack |
Local signalling |
1 LED green for communication on the bus (Active) |
|
1 LED green for configuration status (Ready) |
|
1 LED green/red for device network status (Net Status 1) |
|
1 LED green/red for extended DIO network status (Net Status 2) |
|
1 LED green/red for module status (Mod Status) |
|
1 LED green/red for network communication status (Net Status) |
