| Brand: | Schneider | Model: | 140DAI54000 |
|---|---|---|---|
| Range Of Product: | Modicon Quantum Automation Platform | Origin Of Country: | France |
| Addressing Requirement: | 1 Input Word | Discrete Input Voltage: | 115 V AC |
| High Light: | schneider electric modicon quantum,plc control module |
||

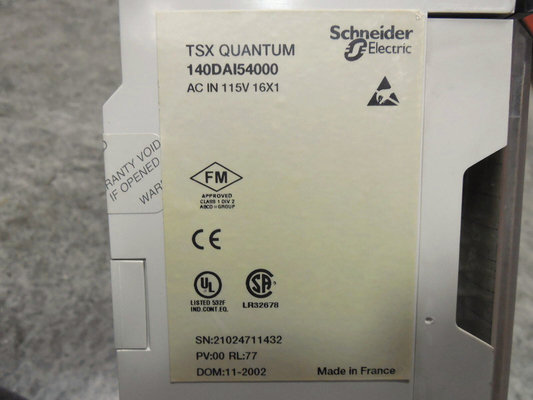

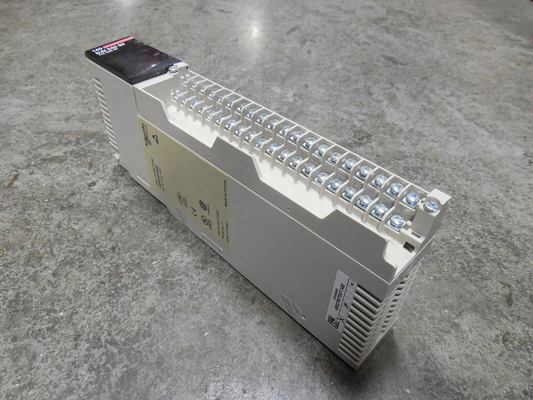

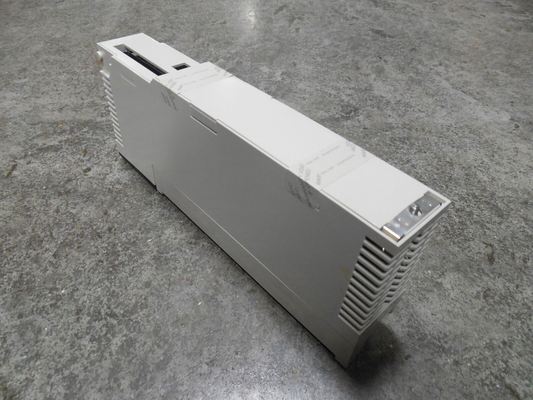

Schneider Modicon TSX Quantum 140DAI54000 Input Module 140 DAI 540 00
Quick Details:
SCHNEIDER ELECTRIC
MODICON

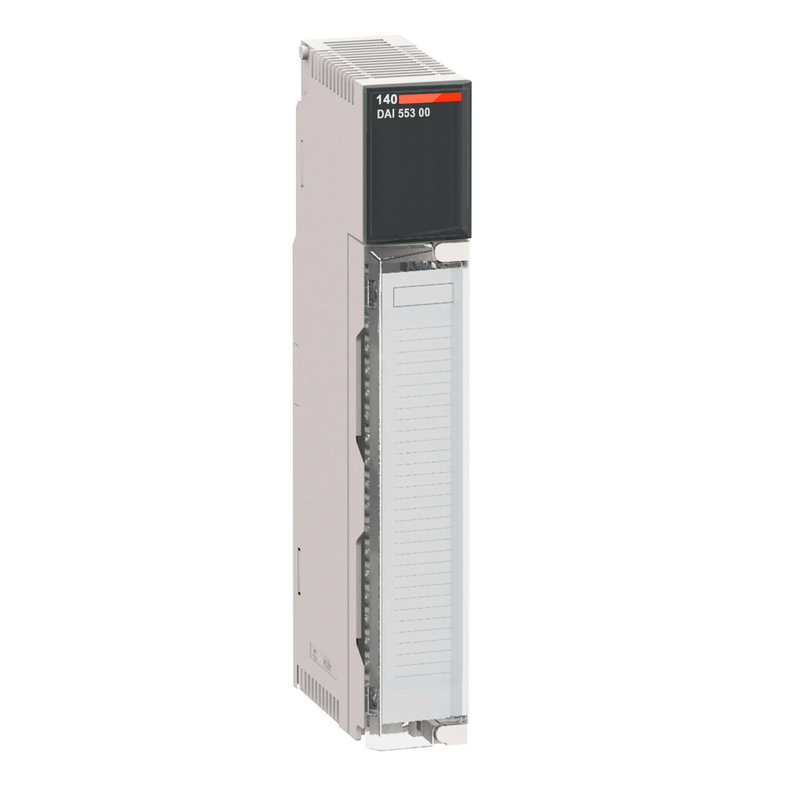

140-DAI-553-00
140DAI55300
INPUT MODULE
DISCRETE
32POINT
115VAC
One Year warrabty
SPECIFICATION
|
Manufacturer |
Schneider Electric |
|
Series |
Modicon Quantum |
|
Module format |
Standard |
|
Range of product |
Modicon Quantum automation platform |
|
Product or component type |
VAC discrete input modules |
|
Software name |
Concept |
|
|
ProWORX 32 |
|
|
Unity Pro |
|
Discrete input number |
16 |
|
Group of channels |
16 |
|
Addressing requirement |
1 input word |
|
Discrete input voltage |
115 V AC |
|
Input current |
<= 13.2 mA 47...53 Hz |
|
|
<= 11.1 mA 57...63 Hz |
|
Voltage state1 guaranteed |
85...132 V AC at 47...53 Hz |
|
|
79...132 V AC at 57...63 Hz |
|
Voltage state 0 guaranteed |
0...20 V AC at 47...53 Hz |
|
|
0...20 V AC at 57...63 Hz |
|
Input impedance |
14400 Ohm capacitive at 47...53 Hz |
|
|
12000 Ohm capacitive at 57...63 Hz |
|
Network frequency limits |
47...63 Hz |
|
Leakage current |
<= 2.1 mA |
|
Absolute maximum input |
200 V 1 cycle |
|
|
156 V 10 s |
|
|
132 V continuous |
|
Response time |
7.3...12.3 ms On-Off |
|
|
4.9...0.75 ms x line cycle Off-On |
|
Isolation between channels |
1780 Vrms for 1 minute |
|
Isolation between channels and bus |
1780 Vrms for 1 minute |
|
Bus current requirement |
180 mA |
|
Power dissipation in W |
<= 5.5 W |
|
Local signalling |
16 LEDs green input status |
|
|
1 LED red external fault detected (F) |
|
|
1 LED green bus communication is present (Active) |
|
Marking |
CE |
