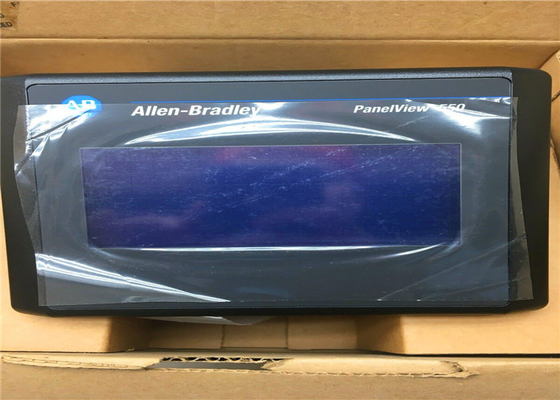

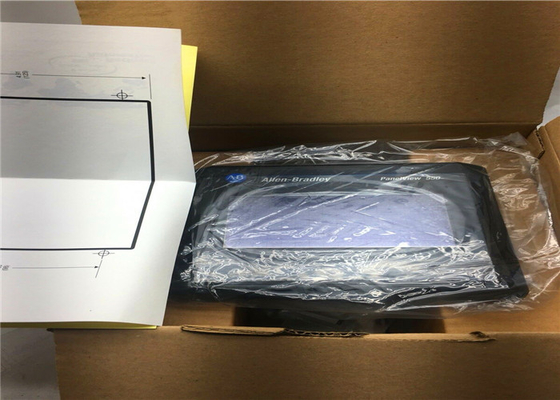

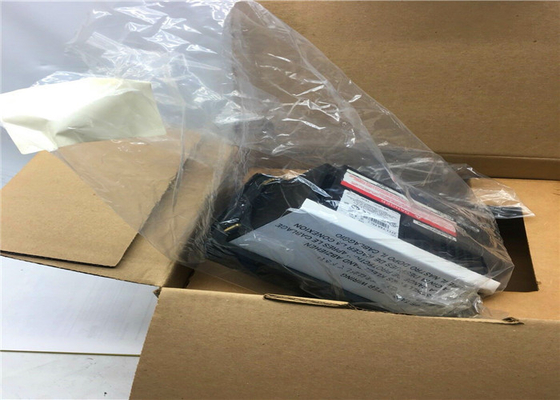

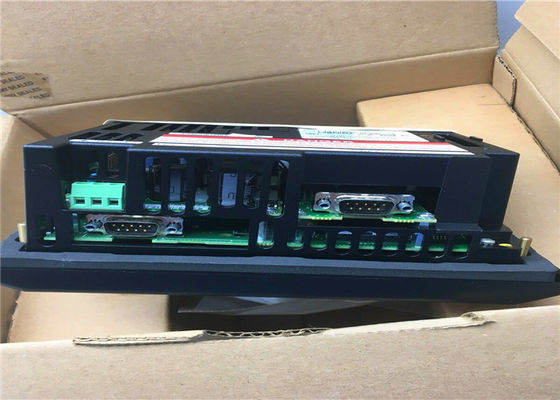

2711-T5A16L1 HMI Touch Screen FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB

2711-T5A16L1 HMI Touch Screen  FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB
2711-T5A16L1 HMI Touch Screen  FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB 2711-T5A16L1 HMI Touch Screen  FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB 2711-T5A16L1 HMI Touch Screen  FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB 2711-T5A16L1 HMI Touch Screen  FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB

Large Image :  2711-T5A16L1 HMI Touch Screen FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 2711-T5A16L1

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 2711-T5A16L1
Type: Touch Screen Origin Of Country: USA
Shipping Dimensions: 14x11x8 Inches Series: A,B,C,D,E,F,G,H
High Light:

touch screen hmi panels

,

hmi display touch screen

2711-T5A16L1 HMI Touch Screen FRN 4.48 Ser B ALLEN BRADLEY PANELVIEW 550 RS-232 DF1 TOUCH NIB



Quick Detials



  • ALLEN BRADLEY

  • 2711-T5A16L1

  • 2711T5A16L1

  • OPERATOR INTERFACE

  • PANELVIEW 550

  • MONOCHROME TERMINAL

  • 5.5-INCH TOUCHSCREEN

  • RS-232 (DF1) COMMUNICATION & RS-232 PRINTER PORT

  • DC POWER

  • 24 VDC

  • 18 WATT

  • one year warranty



Description:



The 2711-T5A16L1 is part of the Panelview 550 series. It has a 5.5 inch Monochrome display, Touchscreen user input, 24 VDC input power, and has RS-232 (DF1) Communication and RS-232 Printer/Download Port.



About 2711-T5A16L1



The 2711-T5A16L1 is a Panel 550 series Human Machine Interface device. It is designed with a blue monochrome LCD touch screen featuring a monochrome display screen of 5.5 inches. The 2711-T5A16L1 comes with an operating ambient temperature code of 300 degrees Celsius should not be installed in an environment where the atmospheric gases have an ignition temperature less than 300 degrees Celsius. The 2711-T5A16L1 meets the EMC directive 89/336/EEC and the electromagnetic compatibility, as well as the amending directives. This module is required to be kept in an enclosure that helps to ensure that its internal circuitry is protected. During the installation process, it is important to verify that there is enough space within the enclosure, as adequate ventilation is highly important for this module.



The 2711-T5A16L1 meets NEMA type 12/13 and 4X ratings when properly mounted in a panel or enclosure with an equivalent rating. The 2711-T5A16L1 features a resolution of 256 by 128 that is part of the PanelView 550 series. It comes with a 24 Volt DC power featuring an application runtime internal memory of about 170 KB. The unit uses the Panelbuilder32 Windows operating system for developing the application on a PC. The 2711-T5A16L1 features support for touch screen graphics input. The LCD is also illuminated through the use of a halogen lamp, which is replaceable when it reaches its limit. The illumination lamp can be switched on and off and supports a timed mode as well. To ensure network connectivity, the 2711-T5A16L1 features an RS-232 (DF1) communication port that links to the DF1 port used on any MicroLogix, any PLC, or any SLC controllers. After installation, the DF1 screen allows users to view and edit the DF1 or the full duplex communication setting for the DF1 PanelView terminal. The unit also features an RS-232 printer port that connects with the printing device.



Technical specifications:

Manufacturer

Rockwell Automation

Brand

Part Number/Catalog No.

2711-T5A16L1

Product Line

Panelview 550

Product Type

Human-Module Interface

Display Size

5.5 inches

Display Color

Monochrome LCD blue mode

Input Type

Touchscreen

Communication

RS-232 (DF1), RS-232 Printer/Download Port



Input Power

24 Volts DC

Software

Panelbuilder 32

Memory

170 KB application runtime

Backlight

2711-NL1

Communication Cable

2711-NC13

Shipping Weight

5 pounds

Shipping Dimensions

14x11x8 inches

Series

A,B,C,D,E,F,G,H

Firmware

1.00 to 4.48
