Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis

Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis
Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis

Large Image :  Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 2711-T6C20L1

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 2711-T6C20L1
Type: Touch Screen Origin Of Country: USA
Product Line: Panelview 600 Series: A, B, C, D, E, F, G, H, I, J, K, And L
High Light:

touch screen hmi panels

,

allen bradley display panel

Allen Bradley 2711-T6C20L1 /A 2711T6C20L1 HMI Touch Screen PanelView 600 Color 5" Touch Dis



Quick Detials



  • ALLEN BRADLEY
  • 2711-T6C20L1
  • 2711T6C20L1
  • OPERATOR INTERFACE
  • 24VDC
  • PANELVIEW 600
  • COLOR TERMINAL
  • 6 INCH
  • TOUCHSCREEN
  • ETHERNET/IP COMMUNICATION AND RS-232 PRINTER PORT
  • one year warranty



Description:



EtherNet/IP Communication and RS-232 Printer Port Touchscreen 6 in. Color Display 24V DC



About 2711-T6C20L1

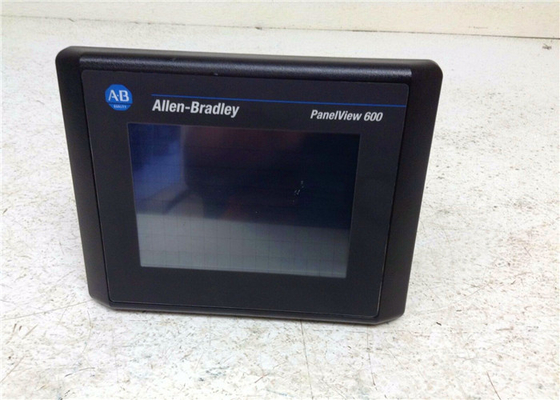

The 2711-T6C20L1 is a color touchscreen operator panel. It belongs to the PanelView 600 series of touchscreen operator panels designed by /Rockwell Automation. It must be supplied with 24 Volts DC of power to operate. The 2711-T6C20L1 is equipped with a standard 6-inch display that is used to capture users’ inputs over a network of 128 touch cells. The advantages of this human-machine interface are the Ethernet/IP communication port and the possibility for connecting to printers with an additional RS-232 port. This PanelView 600 series terminal can print triggered messages in a message display, individual alarms and alarms lists, and the active states of a multi-state indicator. This printing communication port is usually used to interact with IBM printers that support enhanced character sets. Parameters such as the Gateway Address, DNS Server and Domain Name, and the Timeout values are chosen in the Communication Setup Display of the PanelBuilder32 software and these parameters are downloaded with the application. The 2711-T6C20L1 has the following internal memory: 240 KB.

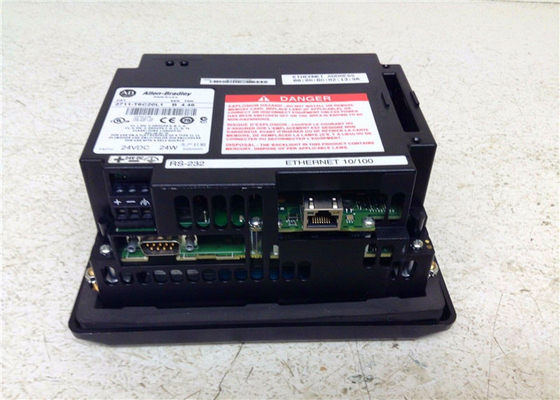

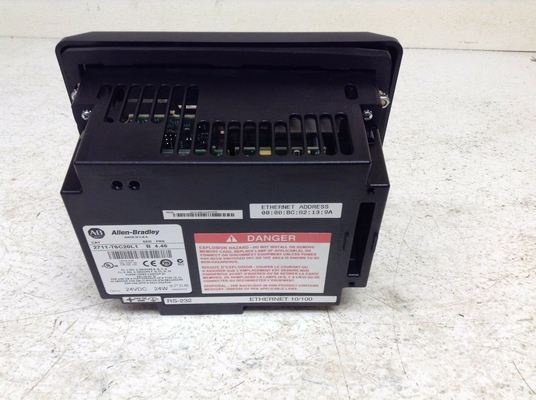

The 2711-T6C20L1 uses Windows-based software called the PanelBuilder 32 software for creating PanelView applications on a PC. The unit is designed to be installed in an IP54 or IP65 (NEMA Type 12, 13, NEMA 4X - indoor use only) enclosure. On the back of the device, there is a reset button to reinitiate the start of the application that is running on the display without terminating the power supply to the unit. Always press this button with a narrow, non-conductive tool. The 2711-T6C20L1 can store application backup on the memory card that is inserted in the back part of the device. The unit is shipped with approximate dimensions of 185 millimeters x 152 millimeters x 96 millimeters. During the installation, leave enough space around it for mounting, maintenance, air circulation, and memory card and legend label installation. Tighten the mounting screws in a way to make a tight and even gasket seal contact. The most common series that the drive comes in are Series A, B, C, D, E, F, G, H, I, J, K, and L and the most common firmware versions include Versions 1.00 to 4.48.



Technical specifications:

Manufacturer

Rockwell Automation

Brand

Part Number/Catalog No.

2711-T6C20L1

Product Line

Panelview 600

Display Size

5 inches

Display Color

Color

Input Type

Touchscreen

Communication

EtherNet/IP and RS-232 Printer

Input Power

18 to 32 Volts DC



Software

Panelbuilder 32

Memory

240 KB

Backlight

2711-NL3

Communication Cable

Ethernet cable

Shipping Weight

4 pounds

Shipping Dimensions

14 x 11 x 8 inches

Series

A, B, C, D, E, F, G, H, I, J, K, and L

Firmware

1.00 to 4.48
