Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model: | FX1N-2EYT-BD |
|---|---|---|---|
| Type: | Programmable Logic Controller | Country Of Origin: | Japan |
| Module Type: | EXTENSION BOARDS | For Use With: | FX1S And FX1N Series |
| High Light: | plc communication module,digital temperature controller |
||

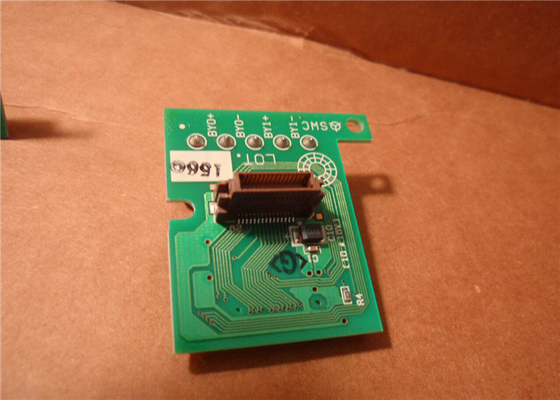

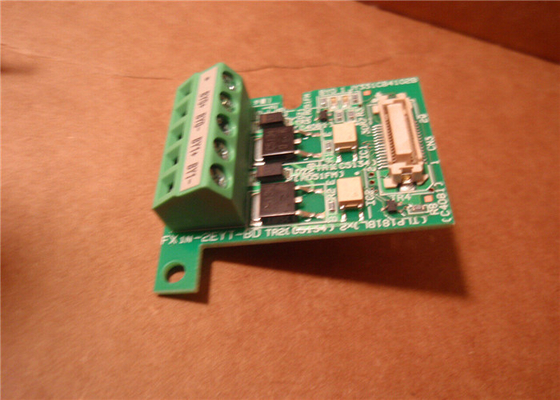

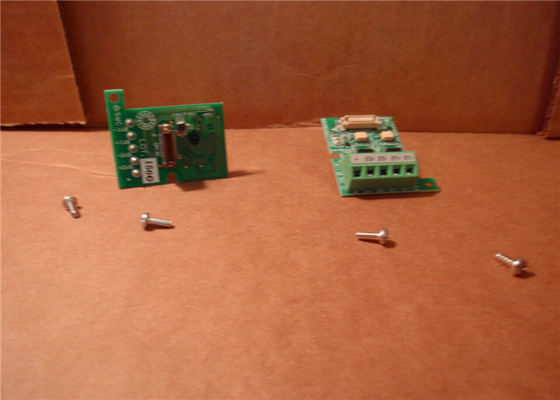

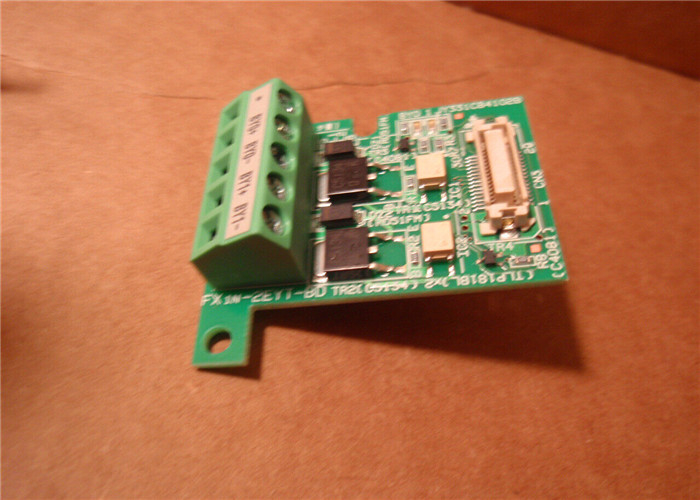

FX1N-2EYT-BD Mitsubishi PLC 2 Point Output Expansion BD Option Board FX1N2EYTBD
Quick Details:
MITSUBISHI
FX1N-2EYT-BD
FX1N2EYTBD
EXTENSION BOARDS
2 PT TRANSISTOR OUTPUT BOARD
One Year Warranty
Introduction
The FX1N-2EYT-BD output expansion board (hereafter referred to as "FX1N-2EYT-BD" or "Function expansion board") is a function expansion board to be installed in the FX1S or FX1N series programmable controller (hereafter referred to as "PLC"), to increase the output of two points.
Features of the FX1N-2EYT-BD
1) Additional increase of two output points.
2) Internal mounting in the top of the PLC meaning no need for change to the installation area of the PLC.
3) Additional outputs have special auxiliary relays associated to each point, which are turned ON or OFF depending on the required output state of the FX1N-2EYT-BD.
As special auxiliary relays are used in the PLC program for the output points, the additional outputs are not included in the regular system I/O count.
Power supply specifications
|
Item |
Specification |
|
Consumption current |
5V DC Supply by PLC. |
Output specifications
|
Item |
Specification |
|
External power supply |
5 to 30V DC |
|
Circuit insulation |
Photo coupler |
|
Operation display |
LED lighting when photo coupler is driven |
|
The maximum resistance load |
0.5A/1 point |
|
The maximum, inductive load |
12W/24V DC |
|
Open road leakage current |
0.1mA/DC30V |
|
Response time OFF to ON |
0.2ms or less |
|
Response time ON to OFF |
0.2ms or less |
Dimension
| Main Units | |
| Discontinued Product | Suggested Replacement |
| FX1N-24MR | FX3G-24MR/ES |
| FX1N-24MT | FX3G-24MT/ES |
| FX1N-40MR | FX3G-40MR/ES |
| FX1N-40MT | FX3G-40MT/ES |
| FX1N-60MR | FX3G-60MR/ES |
| FX1N-60MT | FX3G-60MT/ES |
| FX1N-24MR-D | FX3G-24MR/DS |
| FX1N-24MT-D | FX3G-24MT/DS |
| FX1N-40MR-D | FX3G-40MR/DS |
| FX1N-40MT-D | FX3G-40MT/DS |
| FX1N-60MR-D | FX3G-60MR/DS |
| FX1N-60MT-D | FX3G-60MT/DS |
| FX1N-14MR-ES/UL | FX3G-14MR/ES |
| FX1N-14MT-ESS/UL | FX3G-14MT/ESS |
| FX1N-24MR-ES/UL | FX3G-24MR/ES |
| FX1N-24MT-ESS/UL | FX3G-24MT/ESS |
| FX1N-40MR-ES/UL | FX3G-40MR/ES |
| FX1N-40MT-ESS/UL | FX3G-40MT/ESS |
| FX1N-60MR-ES/UL | FX3G-60MR/ES |
| FX1N-60MT-ESS/UL | FX3G-60MT/ESS |
| FX1N-14MR-DS | FX3G-14MR/DS |
| FX1N-14MT-DSS | FX3G-14MT/DSS |
| FX1N-24MR-DS | FX3G-24MR/DS |
| FX1N-24MT-DSS | FX3G-24MT/DSS |
| FX1N-40MR-DS | FX3G-40MR/DS |
| FX1N-40MT-DSS | FX3G-40MT/DSS |
| FX1N-60MR-DS | FX3G-60MR/DS |
| FX1N-60MT-DSS |
FX3G-60MT/DSS |
FX1N Series Programmable Logic Controllers
Product introduction
| Model | Description |
| FX1N-14MR-001 | basic unit, built-in 8 in /6 out (relay), AC power supply |
| FX1N-14MT-001 | basic unit, built-in 8 in /6 out (relay), AC power supply |
| FX1N-24MR-001 | basic unit, built-in 14 in /10 out (relay), AC power supply |
| FX1N-40MR-001 | basic unit, built-in 24 in /16 out (relay), AC power supply |
| FX1N-60MR-001 | basic unit, built-in 36 in /24 out (relay), AC power supply |
| FX1N-14MT-001 | basic unit, built-in 8 input /6 out (transistor), AC power supply |
| FX1N-24MT-001 | basic unit, built-in 14 input /10 out (transistor), AC power supply |
| FX1N-40MT-001 | basic unit, built-in 24 input /16 out (transistor), AC power supply |
| FX1N-60MT-001 | basic unit, built-in 36 input /24 out (transistor), AC power supply |
