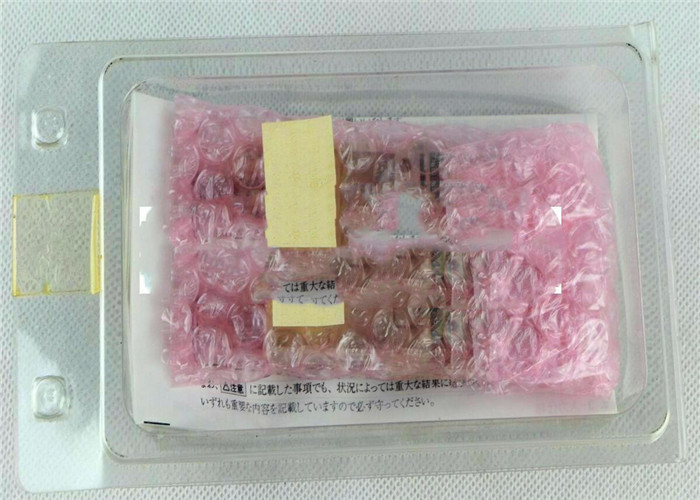

Mitsubishi FX1N-4EX-BD Programmable Logic Controller Input Expansion Board
Quick Details:
MITSUBISHI
FX1N-4EX-BD
FX1N4EXBD
4PT DC INPUT BD BOARD
One Year Warranty
Introduction
The FX1N-4EX-BD output expansion board (hereafter referred to as "FX1N-4EX-BD" or "Function expansion board") is a function expansion board to be installed in the FX1S or FX1N series programmable controller (hereafter referred to as "PLC"), to increase the output of two points.
Features of the FX1N-4EX-BD
1) Additional increase of two output points.
2) Internal mounting in the top of the PLC meaning no need for change to the installation area of the PLC.
3) Additional outputs have special auxiliary relays associated to each point, which are turned ON or OFF depending on the required output state of the FX1N-4EX-BD.
As special auxiliary relays are used in the PLC program for the output points, the additional outputs are not included in the regular system I/O count.
Applicable PLC
Series Name |
Applicable Version |
FX1S |
V2.0 or later |
FX1N |
V2.0 or later |
Specifications
Environmental specifications
The environmental specifications are equivalent to those of the PLC main unit, (Refer to the manual of the PLC main unit.)
Power supply specifications
Item |
Specification |
|
Consumption current |
5VDC |
Supply by PLC |
24VDC |
25mA or less. Supply from external power supply |
Input Specifications
Item |
Specification |
Input signal voltage |
24VDC +20%-15% |
Input signal current |
About 5mA/24VDC |
Input ON current |
3.5mA or more |
Input OFF current |
1.5mA or less |
Input response time |
About 10mS |
Input signal form |
Without voltage contact or opening collector Transistor |
Circuit insulation |
Photo coupler |
Operation display |
LED lighting when photo coupler is dirven |
Main Units | |
Discontinued Product | Suggested Replacement |
FX1N-24MR | FX3G-24MR/ES |
FX1N-24MT | FX3G-24MT/ES |
FX1N-40MR | FX3G-40MR/ES |
FX1N-40MT | FX3G-40MT/ES |
FX1N-60MR | FX3G-60MR/ES |
FX1N-60MT | FX3G-60MT/ES |
FX1N-24MR-D | FX3G-24MR/DS |
FX1N-24MT-D | FX3G-24MT/DS |
FX1N-40MR-D | FX3G-40MR/DS |
FX1N-40MT-D | FX3G-40MT/DS |
FX1N-60MR-D | FX3G-60MR/DS |
FX1N-60MT-D | FX3G-60MT/DS |
FX1N-14MR-ES/UL | FX3G-14MR/ES |
FX1N-14MT-ESS/UL | FX3G-14MT/ESS |
FX1N-24MR-ES/UL | FX3G-24MR/ES |
FX1N-24MT-ESS/UL | FX3G-24MT/ESS |
FX1N-40MR-ES/UL | FX3G-40MR/ES |
FX1N-40MT-ESS/UL | FX3G-40MT/ESS |
FX1N-60MR-ES/UL | FX3G-60MR/ES |
FX1N-60MT-ESS/UL | FX3G-60MT/ESS |
FX1N-14MR-DS | FX3G-14MR/DS |
FX1N-14MT-DSS | FX3G-14MT/DSS |
FX1N-24MR-DS | FX3G-24MR/DS |
FX1N-24MT-DSS | FX3G-24MT/DSS |
FX1N-40MR-DS | FX3G-40MR/DS |
FX1N-40MT-DSS | FX3G-40MT/DSS |
FX1N-60MR-DS | FX3G-60MR/DS |
FX1N-60MT-DSS |
FX3G-60MT/DSS |
