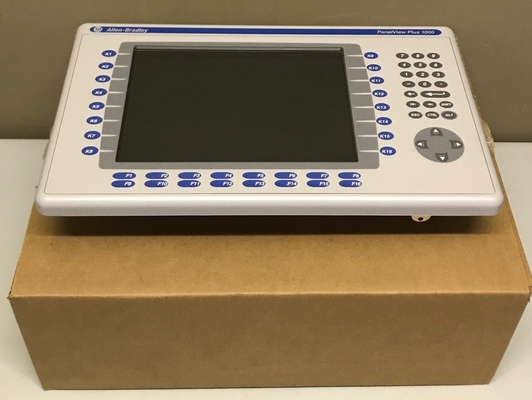

2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B

2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B
2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B 2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B 2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B 2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B

Large Image :  2711P-RP8A Touch Screen Hmi Panels Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B Get Best Price

Product Details:

Place of Origin: USA
Brand Name: AB
Certification: CE
Model Number: 2711P-K10C4A8

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: 1-500USD
Packaging Details: orginal box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 30 PCS/ PER Month
Detailed Product Description
Brand: AB Model: 2711P-K10C4A8
Type: Touch Screen Origin Of Country: USA
Communication: Ethernet And RS-232 Shipping Dimensions: 16 X 14 X 8 In
High Light:

touch screen hmi panels

,

allen bradley display panel

Allen Bradley 2711P-K10C4A8 2711P-RDK10C Ser B, 2711P-RP8A PanelView Plus 1000



Quick Detials



  • ALLEN BRADLEY

  • 2711P-K10C4A8

  • 2711PK10C4A8

  • A-B 2711P-K10C4A8 PANELVIEW PLUS TE

  • one year warranty


Description:



PanelView Plus 6 Operator interface , 1000 Terminal, Keypad, Color display, - Ethernet & RS-232, AC Powered Unit, and the Windows CE 6.0 Operating System



About 2711P-K10C4A8



The current Allen Bradley Panelview 6 Plus 2711P-K10C4A8 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display. This Panelview Plus 6 allows the user to connect using FactoryTalk View Machine Edition software and an Ethernet and RS-232 communication port with a 2711-NC14 communication cable(s). The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 100-240 VAC power. This unit has the following internal memory: 512 MB RAM. If applicable this unit has an internal backlight replacement part number of 2711P-RL10C2. The approximate shipping weight and dimensions are 8 lbs. and 16 x 14 x 8 in. The most common Series are Series A and Series B and the most common firmware include 6.00-8.10. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.



Technical specifications:

Manufacturer

Rockwell Automation

Brand

Part Number/Catalog No.

2711P-K10C4A8

Product Line

Panelview 6 Plus

Display Size

10.4 in.

Display Color

Color

Input Type

Keypad

Communication

Ethernet and RS-232

Input Power

100-240 VAC



Software

FactoryTalk View Machine Edition

Memory

512 MB RAM

Backlight

2711P-RL10C2

Communication Cable

2711-NC14

Shipping Weight

8 lbs.

Shipping Dimensions

16 x 14 x 8 in

Series

Series A and Series B

Firmware

6.00-8.10



MORE INFORMATION

DELIVERY

Logistic partners UPS, FedEx and DHL

International delivery available

Same day dispatch from group stock


WARRANTY

All parts new are covered by Shenzhen Viyork 12 month warranty


RETURNS

No hassle returns policy

Dedicated customer support team


PAYMENT

Trade credit

We understand that credit is a necessary part of business and offer credit agreements on request, subject to status.


Payment options

We accept Bank transfers and the following methods of payment:

Western Union PayPal VISA
