| Brand: | AB | Model: | 2711P-T7C4A8 |
|---|---|---|---|
| Type: | Touch Screen | Origin Of Country: | USA |
| Firmware: | 6.00 To 8.10 | Operating System: | Windows CE 6.0 |
| High Light: | touch screen hmi panels,allen bradley display panel |
||
New 2711P-T7C4A8 2711P-T7C4A9 PanelView Plus 6 Touch Ethernet/RS232 512MB
Quick Detials
one year warranty
Description:
Technical specifications:
| Manufacturer | Rockwell Automation |
| Brand | |
| Part Number/Catalog No. | 2711P-T7C4A8 |
| Product Line | Panelview 6 Plus |
| Display Size | 6.5 inches |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 100 to 240 Volts AC |
| Software | FactoryTalk View Machine Edition |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL7C2 |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 8 pounds |
| Shipping Dimensions | 14 x 11 x 8 inches |
| Series | Series A and Series B |
| Firmware | 6.00 to 8.10 |
| Operating System | Windows CE 6.0 |

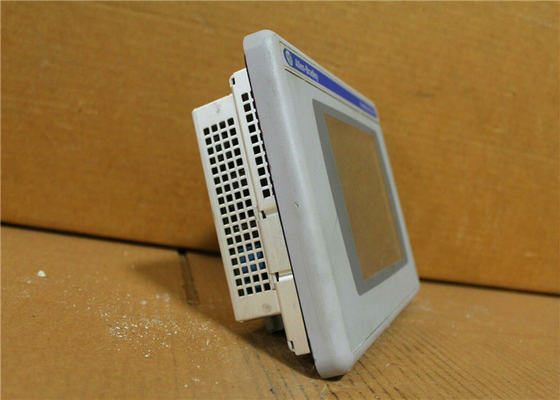

The 2711P-T7C4A8 is an PanelView Plus 6 Model 700 Terminal. As indicated by the "T" in the part number, it has a touchscreen input. The operators can input information into the 2711P-T7C4A8 through this touchscreen. It has a 6.5-inch of color active-matrix TFT display (hence the "C" in the part name). The display resolution is 640 x 480 pixels with 18-bit color graphics and the brightness is 300 cd/m2 (Nits). For communication, the 2711P-T7C4A8 has an Ethernet port (10/100 Mbps, Auto-MDI/MDI-X), an RS-232 port, and 2 USB host ports. The 2711P-T7C4A8 terminal allows the users to connect the terminal to other machines by using the FactoryTalk View Machine Edition software with the Ethernet and RS-232 communication ports and with the 2711-NC13 communication cables.
The 2711P-T7C4A8 is powered using 18 to 30 Volts DC and 100 to 240 Volts AC at 50 to 60 Hertz. The DC power consumption is 15 Watts maximum (0.6 Amps at 24 Volts DC), 9 Watts typical (0.375 Amps at 24 Volts DC) and the AC power consumption is 35VA maximum, and 20 VA typical. It has an internal memory of 512 MB RAM and 512 MB nonvolatile ROM. The approximate shipping weight is 8 pounds and the dimensions are 14 x 11 x 8 inches. This device works on the Windows CE 6.0 operating system, but it does not support the extended features and file viewers. The internal backlight of the 2711P-T7C4A8 terminal is replaceable and the replacement part number is 2711P-RL7C2. The most common series for the 2711P-T7C4A8 are Series A and Series B and the most common firmware include versions 6.00 to 8.10.
