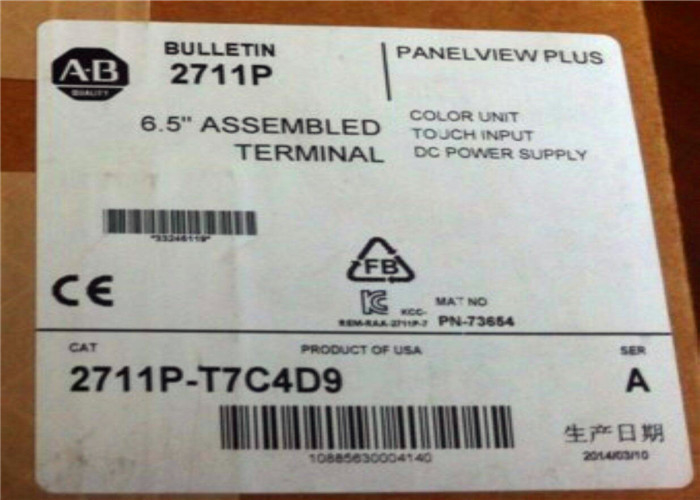

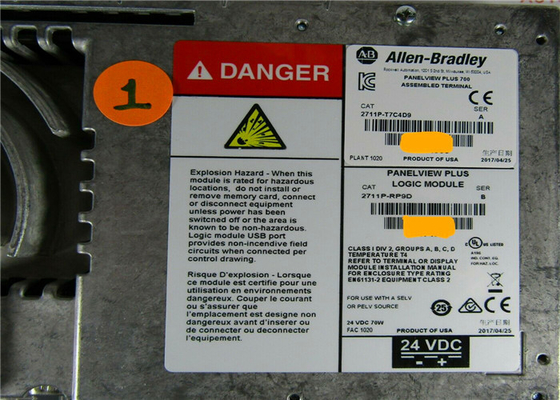

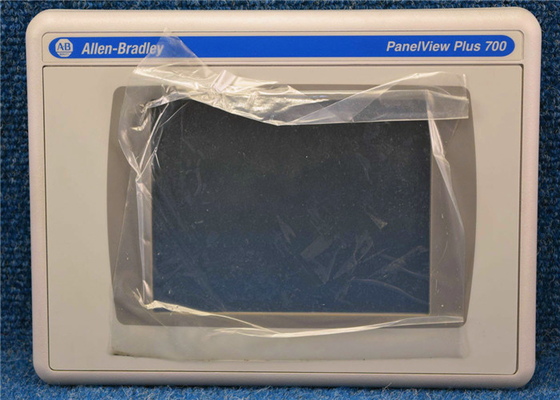

Perfect HMI Touch Screen Allen Bradley 2711P-T7C4D9 2711P-RP9D PanelView Plus 700

Large Image : Perfect HMI Touch Screen Allen Bradley 2711P-T7C4D9 2711P-RP9D PanelView Plus 700 Get Best Price

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CE
Model Number:	2711P-T7C4D9

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Brand:	AB	Model:	2711P-T7C4D9
Type:	Touch Screen	Origin Of Country:	USA
Input Power:	18 To 32 Volts DC	Firmware:	6.00 To 8.10
Highlight:	touch screen hmi panels , allen bradley display panel

NEW Allen Bradley 2711P-T7C4D9 2711P-RP9D PanelView Plus 700 Perfect Touch HMI

Quick Detials

ALLEN BRADLEY
2711P-T7C4D9
2711PT7C4D9
OPERATOR INTERFACE
PANELVIEW PLUS 700
6.5 INCH TOUCHSCREEN
COLOR
one year warranty

Description:

PanelView Plus 6 Operator interface, 700 Terminal, with a Touchscreen Color display, - Ethernet & RS-232, DC Powered Unit. The screen measures 6.5 inches and it runs on the Windows CE 6.0 operating system. Ethernet ports (10/100 Mbps, Auto-MDI/MDI-X) and RS-232 ports are embedded on this PanelView device.The 2711P-T7C4D9 measures approximately 7.04 x 9.68 x 2.18 inches.

Technical specifications:

Manufacturer	Rockwell Automation
Brand
Part Number/Catalog No.	2711P-T7C4D9
Product Line	Panelview 6 Plus
Display Size	6.5 inches
Display Color	Color
Input Type	Touchscreen
Communication	Ethernet and RS-232
Input Power	18 to 32 Volts DC

Software	FactoryTalk View Machine Edition
Memory	512 MB RAM
Backlight	2711P-RL7C2
Communication Cable	2711-NC13
Shipping Weight	8 pounds
Shipping Dimensions	14 x 11 x 8 inches
Series	Series A and Series B
Firmware	6.00 to 8.10
Operating System	Windows CE 6.0

About 2711P-T7C4D9

The 2711P-T7C4D9 HMI terminal is a part of the PanelView Plus 6 700 Terminal Series with a color active-matrix TFT screen as the display type. The screen measures 6.5 inches and it runs on the Windows CE 6.0 operating system with extended features that use the FactoryTalk software for navigation. The 2711P-T7C4D9 has a touchscreen as its input type with an actuation rating of 1 million presses. The touchscreen uses a CCFL backlight with 50,000 hours of life at a minimum temperature at 25 degrees Celsius or 77 degrees Fahrenheit. The 2711P-T7C4D9 has a replaceable backlight and it consumes 70 W maximum of power. In addition, the 2711P-T7C4D9 can be activated on an input power requirement of 18 to 32 Volts DC voltage that backs up 2.0 USB host ports for external storage devices. These ports are used for connecting a mouse, a keyboard, a printer, or USB flash drives to the terminal. Moreover, Ethernet ports (10/100 Mbps, Auto-MDI/MDI-X) and RS-232 ports are also embedded on this PanelView device for easy communication, printing, and data storage with a 2711-NC13 communication cable.

The 2711P-T7C4D9 HMI terminal uses the PanelBuilder 32 software which runs on a personal computer and operates in Basic English to increase the operator’s productivity. This 32-bit software enables the direct uploading or downloading of applications from or to a computer or over the network or by using a memory card. The 2711P-T7C4D9 measures approximately 7.04 x 9.68 x 2.18 inches in dimensions and it has 512 MB of RAM and 512 MB of nonvolatile memory with approximately 79 MB of free user memory. The 2711P-T7C4D9 weighs 8 pounds. The most common series that this terminal is available in are Series A and Series B and the most common firmware it uses include versions 6.00 to 8.10.
