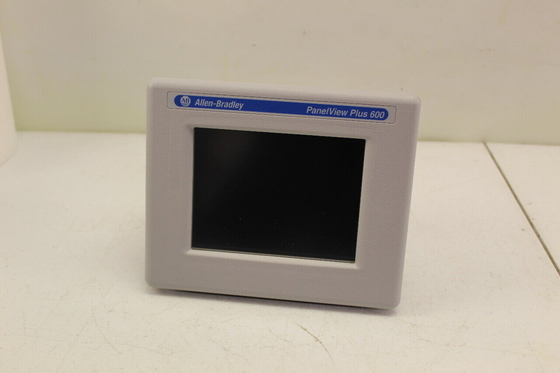

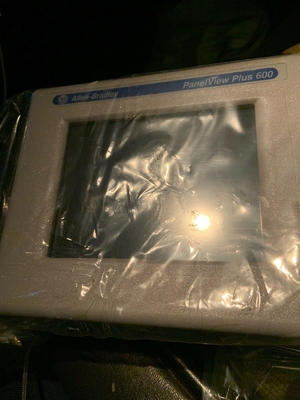

Sealed Allen Bradley 2711PC-T6M20D8 /A 2018 PanelView Plus 6 600 Terminal Touch Screen

Large Image : Sealed Allen Bradley 2711PC-T6M20D8 /A 2018 PanelView Plus 6 600 Terminal Touch Screen Get Best Price

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CE
Model Number:	2711PC-T6M20D8

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Brand:	AB	Model:	2711PC-T6M20D8
Type:	Touch Screen	Origin Of Country:	USA
Display Size:	4.4 X 3.3 In.	Input Power:	24V DC
Highlight:	touch screen hmi panels , allen bradley display panel

New Sealed Allen Bradley 2711PC-T6M20D8 /A 2018 PanelView Plus 6 600 Terminal Touch Screen

Quick Detials

ALLEN BRADLEY
2711PC-T6M20D8
2711PCT6M20D8
OPERATOR INTERFACE
5.7INCH
GRAYSCALE TOUCH SCREEN
24VDC 15W
one year warranty

Description:

PanelView Plus 6 Compact series with Monochrome display with Ethernet and RS-232 communication, 24V DC input power, FactoryTalk View Compact Machine Edition software, and 512 MB nonvolatile memory and 256 MB RAM

Technical specifications:

Manufacturer	Rockwell Automation
Brand
Part Number/Catalog No.	2711PC-T6M20D8
Product Line	PanelView Plus 6 Compact
Display Size	4.4 x 3.3 in.
Display Color	Monochrome
Input Type	Touchscreen

Communication	Ethernet and RS-232
Input Power	24V DC
Software	FactoryTalk View Compact Machine Edition
Memory	512 MB nonvolatile memory and 256 MB RAM
Enclosure Type	NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66
Dimensions	6.0 x 7.28 x 2.86 in.

About 2711PC-T6M20D8

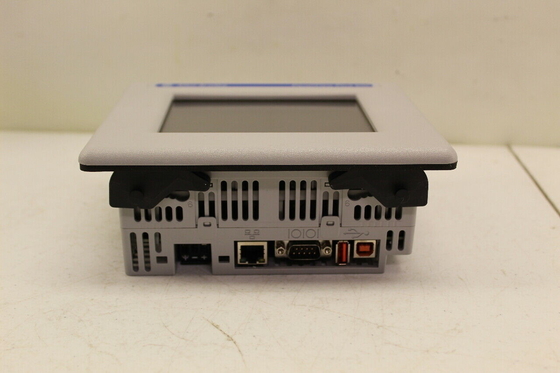

The 2711PC-T6M20D8 PanelView Plus 6 is a compact graphics terminal by . Its hardware and software meet the needs of many mid-size applications. With its compact design, it is a popular HMI for use with CompactLogix controllers. The 2711PC-T6M20D8 comes with an RS-232 serial port, an Ethernet port, and with 1 USB port for supporting serial and Ethernet communications. It can be configured with FactoryTalk software which supports up to 25 displays and 200 alarm messages. Either the RSLinx Enterprise software, version 5.20 or later or the KEPServer software can be used for making connections to a single CompactLogix controller.

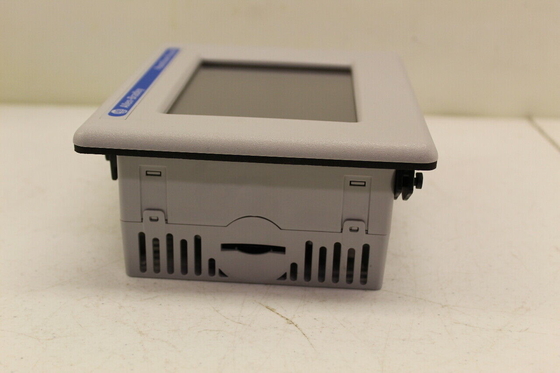

The 2711PC-T6M20D8 600 compact graphics terminal has a 5.7-inch grayscale TFT LCD display with a resistive touch input. The terminal’s display has a resolution of 320 x 240 pixels. It weighs 1.31 lbs. and has dimensions of 6 x 7.28 x 2.86 in. It contains a 512 MB non-volatile flash memory and 256 MB RAM. It also supports Secure Digital (SD) card for external storage. It requires a DC input voltage of 18 - 30V DC (24V DC nominal) and its maximum power consumption is 15 W. For installation, the 2711PC-T6M20D8 can be panel-mounted with NEMA/UL Type 12, 13, 4X, and IP66-rated enclosures.
The 2711PC-T6M20D8 terminal runs the Windows CE 6.0 operating system with a built-in pdf viewer and standard features such as Network user interface, a command processor, a VNC server etc. With additional features such as ActiveX controls, backup restoration, and remote connectivity, it provides greater user flexibility. Devices such as a mouse or keyboard can be connected to the 2711PC-T6M20D8 for better control.

The 2711PC-T6M20D8 is an Allen Bradley PanelView Plus 6 Terminal that has a 4.4 x 3.3 in. Monochrome display with a Touchscreen input.

This product has 512 MB nonvolatile memory and 256 MB RAM and its FactoryTalk View Compact Machine Edition software supports 25 displays and 200 alarm messages. It also features Ethernet and RS-232 communication ports.

There is a NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66 enclosure.
