Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1747-L514 |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Backplane Current (5 Volts DC): | 350 Milliamps | Backplane Current (24 Volts DC): | 105 Milliamps |
| High Light: | allen bradley memory module,plc processor module |
||

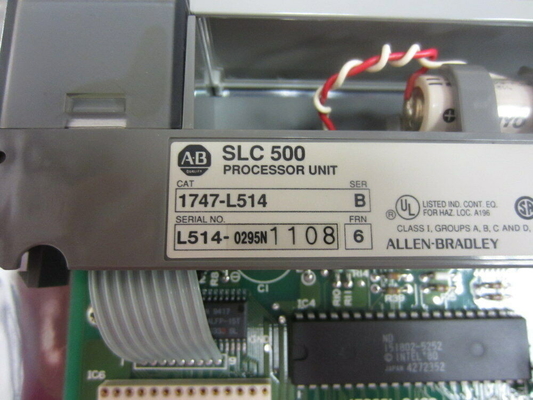

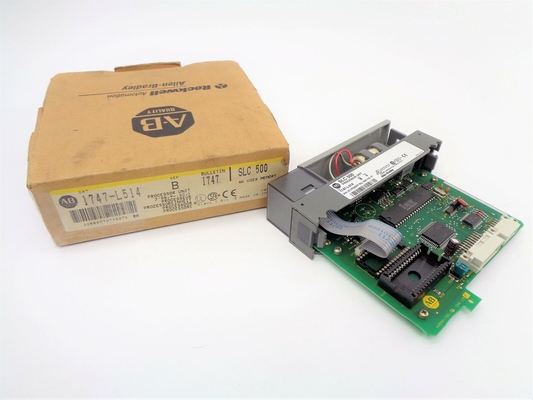

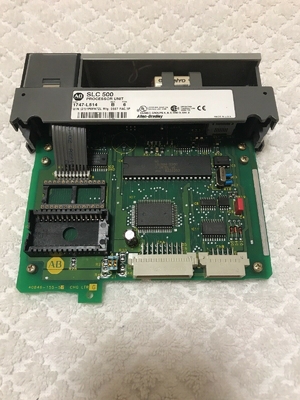

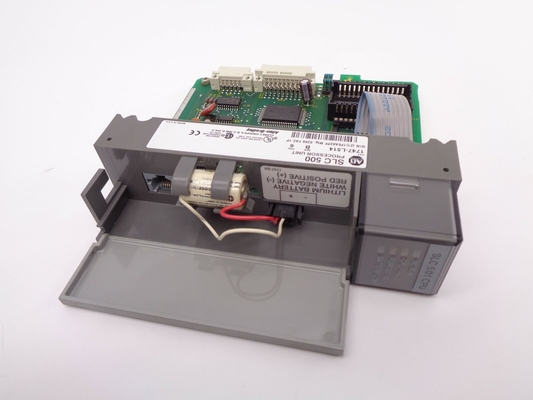

Allen Bradley 1747-L514 SLC 500 Processor Unit Ser B Digital I/O Module NEW
Quick Detials
one year warranty
SPECIFICATIONS
The 1747-L514 is a SLC 500 SLC 5/01 Processor. This SLC 5/01 Processor has 960 Maximum I/O points and 480 Analog I/O points with a User Memory of 4,000 Instructions.
The 1747-L514 SLC 5/01 Modular Processor by is a modular processor of the SLC 500 system which offers 4K of processor memory, a maximum configuration capacity of 3 Chassis with a total of 30 slots, and an I/O connection capacity range from 4-3940 I/O points. The module has a backplane current of 90mA at 5.0V DC which gets to 0mA at 24V DC and it uses the 1747-BA lithium battery assembly with a 30-minute capacitor life and a lithium battery with a 2-year lifespan for backup power for the standard RAM. The 1747-L514 offers optional EEPROM backup, and with a 4K memory, it can process a maximum of 52 programming instructions, using the RSLogix 500 programming software.
The 1747-L514 has a maximum bit execution time of 4μs and an overall module scan time of 8ms/K. During a temporary power loss, the program scan on the module can take from 20ms to 3s depending on the power supply that is loading. It comes with a base DH-485 communication capability which can only act in a slave capacity (Receiving) in the programming channel. The 1747-L514 has an ambient operating temperature range of 0-60°C (32-140°F) at 5-95% non-condensing relative humidity range, and it is designed to sustain an operational shock of 30G, and a vibration of 2.5G at 57-2000Hz. The 1747-L514 is C-UL, UL, and CE-certified, and it offers a NEMA standard ICS 2-230 industrial noise immunity.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1747-L514 |
| Series | SLC 500 |
| Module Type | SLC 5/01 Processor |
| I/O | 960 Maximum |
| Analog I/O | 480 |
| User Memory | 4,000 Instructions |
| Program Scan Time | 8 milliseconds |
| I/O Scan time | 2.6 milliseconds |
| I/O Chassis | 3 |
| Chassis Module Slots | 30 |
| Communication | DH-485 |
| Backup Memory | EEPROM |
| Backplane Current (5 Volts DC) | 350 milliamps |
| Backplane Current (24 Volts DC) | 105 milliamps |
| Operating Temperature | 0-60 Celsius |
