| Brand: | AB | Model: | 1746-IM16 |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Voltage Range: | 170-265 Volts AC | Inputs: | 16 |
| High Light: | allen bradley memory module,plc processor module |
||

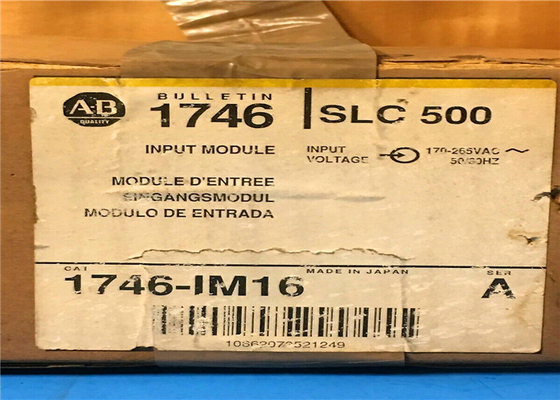

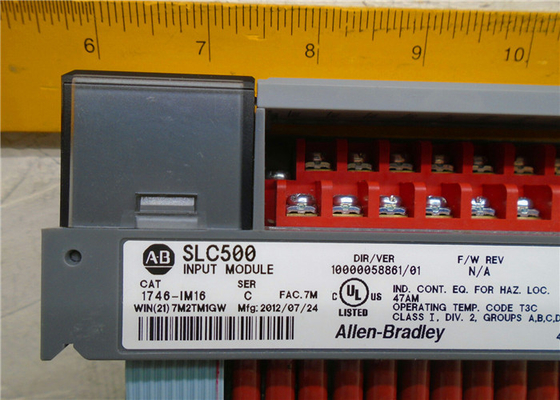

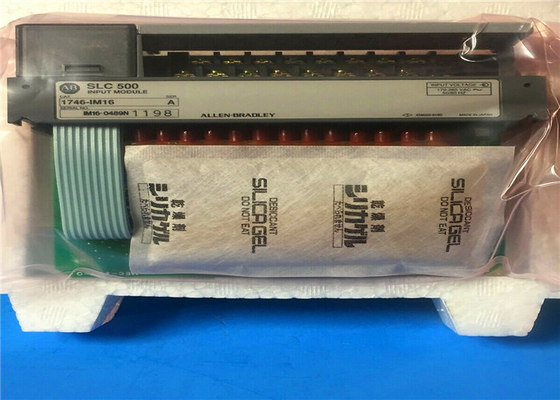

New Sealed Allen Bradley 1746-IM16 /C 1746-1M16 SLC 500 AC Input Module
Quick Detials
one year warranty
Specifications:
The 1746-IM16 is a SLC 500 Digital AC Input Module. This Digital AC Input Module has a Voltage Range of 170-265 Volts AC and 16 Inputs with a Backplane Current (5 Volts DC) of 85 milliamps.
About 1746-IM16
The 1746-IM16 SLC 500 Digital AC Input Module by is an input (AC) module with sixteen 200-240V AC inputs and is fitted into any available SLC 500 I/O chassis using an RTB (Removable Terminal Block). It has 16 points per common and an input operating voltage of 170-265V AC at 47-63Hz. It has a backplane current rating of 0.085A at 5V DC and an electrical signal delay of 35ms for ON and 45ms for OFF state around its input points. It has an OFF-state rating of 50V AC voltage loss and 2mA maximum OFF-state current.
The 1746-IM16 has an input current (nom) of 12mA around each input points and has a maximum surge current of 1.6A, which can last for a maximum duration of 0.5ms. It has a maximum power dissipation of 0.35W at each point and the total heat dissipated by the module is at 6W. It provides voltage isolation between input terminals and control logic tested at 1500V and is NEMA standard ICS 2-230-rated for noise immunity. The operating temperature of the 1746-IM16 ranges between 0 and 60 °C (32 and 140 °F) at 5-95% non-condensing humidity limits and it has a non-operational storage temperature of -40 and 85 °C (-40 and 185 °F). The 1746-IM16 has an operational shock withstand of 30G and can sustain an operating 2.5G vibration at 57-200Hz.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-IM16 |
| Series | SLC 500 |
| Module Type | Digital AC Input Module |
| Voltage Range | 170-265 Volts AC |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Signal delay | 35 or 45 milliseconds |
| Off State Current | 2 milliamps |
| Applications | General Purpose 125 Volts DC Inputs |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
