Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1746-IB16 |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Series: | SLC 500 | Inputs: | 16 |
| High Light: | allen bradley memory module,plc processor module |
||

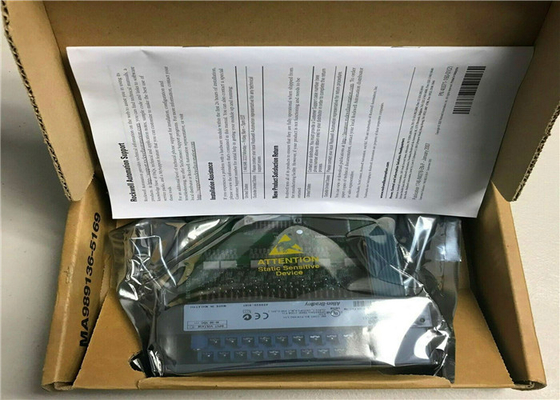

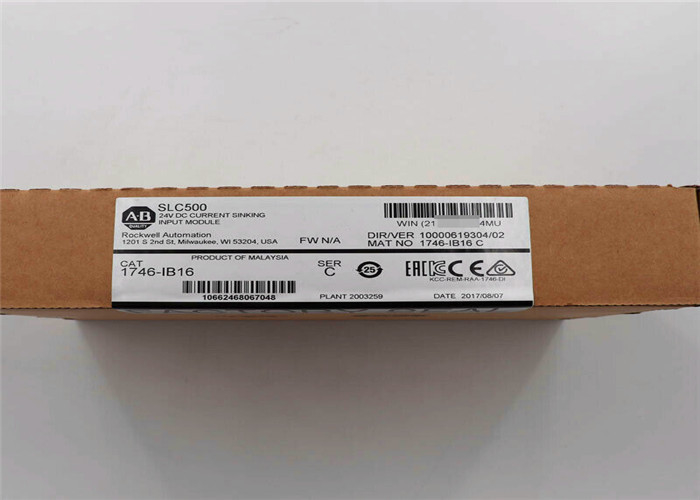

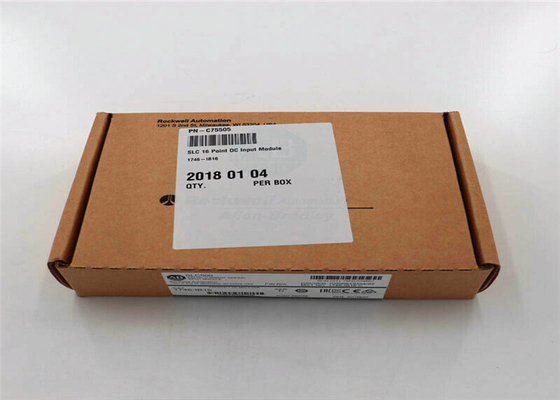

NEW 1746-IB16 | Allen Bradley | SLC 500 | 16 Channel, Digital Input Module (Sink)...
Quick Detials
one year warranty
Specifications:
The 1746-IB16 is a SLC 500 Digital DC Input Module. This Digital DC Input Module has a Voltage Range of 10-30 Volts DC Sink and 16 Inputs with a Backplane Current (5 Volts DC) of 85 milliamps.
About 1746-IB16
The 1746-IB16 SLC 500 General Purpose DC Input Module by is a digital AC input module with 16 sinking 24V DC inputs and 16 points per common. The module is located on the I/O chassis slots of the SLC 500 Chassis and uses a removable terminal block (RTB). It has a sinking operational voltage range between 10 and 30V DC and draws a maximum backplane current of 0.05A at 5V DC. The 1746-IB16 has a maximum signal delay time of 8ms for both ON and OFF on the input points, the module has a maximum drop voltage of 5V DC in the OFF state. It has a maximum leakage current of 1mA and has a nominal input current of 8mA at 24V DC across the entire module.
The 1746-IB16 has a net heat dissipation of 0.22W on each input point and a total heat dissipation on the entire module is 3.6W. It operating temperature ranges between 0 and 60 °C (32 and 140 °F) in a surrounding with 5-95% relative humidity, and when not in use, should be stored at a temperature range between -40 and 85 °C (-40 and 185 °F). The 1746-IB16 has a tested operational shock rating of 30G and is designed to withstand an operational vibration of 2.5G at 57-200 Hz operational frequency. It has a NEMA standard ICS 2-230 rated noise immunity and is UL-A196, CSA, and C-UL Class I, Division 2 Hazardous Environment-rated. It offers Electro-optical isolation tested at 1500V, between input terminals and control logic, and is UL, CSA, and CE-certified.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1746-IB16 |
| Series | SLC 500 |
| Module Type | Digital DC Input Module |
| Voltage Range | 10-30 Volts DC Sink |
| Inputs | 16 |
| Backplane Current (5 Volts DC) | 85 milliamps |
| Signal delay | 8 milliseconds |
| Off State Current | 1 milliamps |
| Applications | General Purpose DC Inputs |
| I/O Connection | 1746-HT and 1746-HCA |
| Step Response | 100 milliseconds in, 2.5 milliseconds out |
