Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-A1B |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Dimensions: | 3.5 X 6.5 X 2.0 In (89 X 165 X 51 Mm) | Weight: | 8.0 Lbs (3.6 Kg) |
| High Light: | allen bradley memory module,plc processor module |
||
1771-A1B B1771A1B B - ALLEN BRADLEY 4 SLOT I/O CHASSIS 1771-A1B B (New)
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 I/O Chasis, 4 Slots, 16 Amperes, Back Panel Mount Type

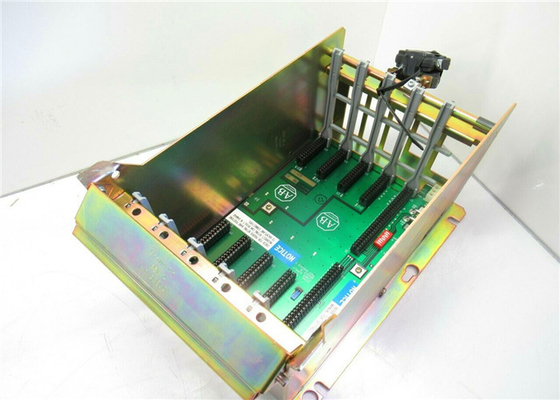

About 1771-A1B
The 1771-A1B is an PLC-5 Chassis . The 1771-A1B chassis is the backbone of every PLC-5 programmable controller system. This chassis provides a communication path between various I/O modules and either the controller or the I/O adapter module. 1771-A1B is a universal and compact enclosure for the processor, power-supply modules, remote and extended-local I/O adapter modules, and I/O modules. 1771-A1B chassis has 4 slots for mounting various modules. The far-left slot of 1771-A1B chassis is reserved for either the processor or adapter module. The other slots in the chassis are compatible with communication modules, I/O modules, and power-supply modules. It is crucial to follow the compatibility tables for each PLC-5/1771 module. Please note the 1771-A1B is part of series B. Power supplies 1771-P1, -P2, -P7 and -PS7 can be mounted on the left side plate of the 1771-A1B chassis.
The 1771-A1B chassis is designed for panel mount installation. 1771-A1B chassis can receive power through processors with integral power supplies that provide 2 to 4 amps, power supply modules that provide 3 to 8 amps, and external power supplies that provide 6.5 to 16 amps. The largest back-plane current for the 1771-A1B is 16 amps operating at 5 Volts DC. The 1771-A1B chassis must be connected to a central ground bus via grounding studs situated on the chassis itself. The chassis’ power supply is configured via the configuration jumper. The jumper has two positions: "N" - position for external power supply, and "Y" - position for power-supply module or processor with and an integral power supply. 1771-A1B chassis cannot be powered with both a power-supply module and an external power supply at the same time.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-A1B |
| Module Type | I/O Chasis |
| Number of Module I/O Slots | 4 Slots |
| Max Backplane Current (at 5 Volts DC) | 16 Amperes |
| Mount Type | Back Panel |
| Enclosure Type | Open Style |
| Operating Shock | 15 g |
| Nonoperating Shock | 30 g |
| Vibration | 2 g (at 10-500 Hertz) |
| Dimensions | 12.4 x 7.6 x 9.0 in (315 x 193 x 229 mm) |
| Weight | 8.0 lbs (3.6 kg) |
| Location | Stand-Alone |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
