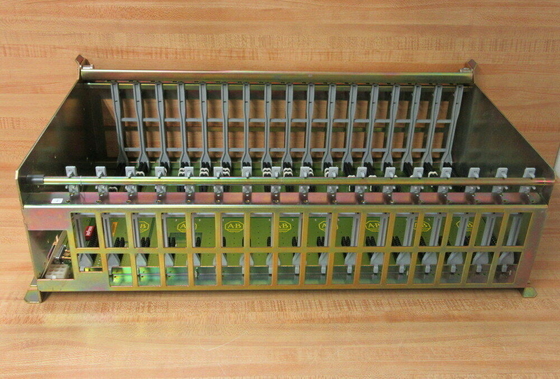

Allen Bradley 1771-A4B 16 Slot I / O Chassis 1771A4B P / N 96814806 Ser B

Large Image : Allen Bradley 1771-A4B 16 Slot I / O Chassis 1771A4B P / N 96814806 Ser B Get Best Price

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CE
Model Number:	1771-A4B

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Brand:	AB	Model:	1771-A4B
Type:	I/O Adapter Module	Origin Of Country:	USA
Dimensions:	12.4 X 7.6 X 24.0 In (315 X 193 X 610 Mm)	Weight:	14.8 Lbs (7.7 Kg)
Highlight:	allen bradley memory module , plc processor module

NEW Allen Bradley 1771-A4B 16 Slot I/O Chassis 1771A4B P/N 96814806 Ser B

Quick Detials

ALLEN BRADLEY
1771-A4B
1771A4B
RACK
16 SLOT
24 AMP
5.25 VDC
one year warranty

Specifications:

Allen Bradley PLC 5 I/O Chasis, 16 Slots, 24 Amperes, Back Panel Mount Type

About 1771-A4B

The 1771-A4B is an I/O chassis for 1771 I/O modules. The 1771 PLC-5 system is a modular system that needs a 1771 I/O chassis to allow the installation of various modules. Communication between the I/O modules and either the processor module or the I/O adapter module is provided by the backplane.
The 1771-A4B chassis has 16 I/O slots. It has dimensions of 12.4 x 24 x 7.6 in. and weighs 14.8 lbs. For installation in a 1771 PLC-5 system, it uses the back-panel mounting method with adequate spacing and an open enclosure. The chassis backplane has a power supply of 8A at 5V DC.
The 1771-A4B chassis has a universal configuration for chassis mounting and system design because of its own consistent design. 1771 I/O modules are small, flexible, cost-effective, and provide a complete range of digital, analog, and intelligent I/O modules for various applications. I/O modules come with wiring arms and remote termination panels, eliminating the need for disconnecting the wire to replace the module. For troubleshooting and diagnostics, status indicators are present on the front of the modules. For future expansion, it can be easily replaced with a larger chassis. It is intended for use in an industrial environment with a 0 - 60 °C (32 - 140 °F) operating temperature, 5-95 % noncondensing relative humidity, and a 30g operating shock.

Technical specifications:

Manufacturer	AB
Brand
Part Number/Catalog No.	1771-A4B
Module Type	I/O Chasis
Number of Module I/O Slots	16 Slots
Max Backplane Current (at 5 Volts DC)	24 Amperes
Mount Type	Back Panel
Enclosure Type	Open Style

Operating Shock	15 g
Nonoperating Shock	30 g
Vibration	2 g (at 10-500 Hertz)
Dimensions	12.4 x 7.6 x 24.0 in (315 x 193 x 610 mm)
Weight	14.8 lbs (7.7 kg)
Location	Stand-Alone
Dimensions	3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)
