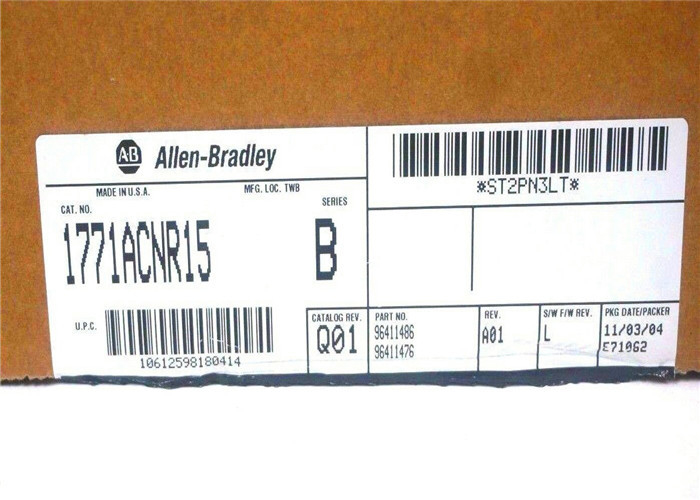

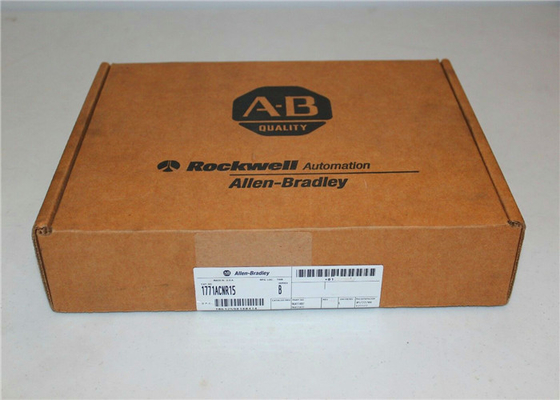

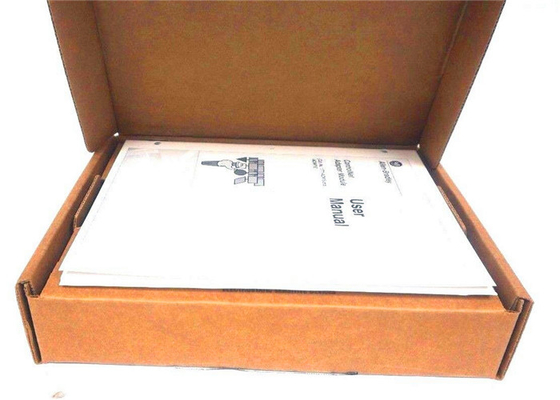

1771-ACNR 1771ACNR15 Allen Bradley 1771-ACNR15 Controlnet Adapter PLC -5

Large Image : 1771-ACNR 1771ACNR15 Allen Bradley 1771-ACNR15 Controlnet Adapter PLC -5 Get Best Price

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CE
Model Number:	1771-ACNR

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Brand:	AB	Model:	1771-ACNR
Type:	I/O Adapter Module	Origin Of Country:	USA
Weight:	2.1 Lbs (1.0 Kg)	Thermal Dissipation:	17.06 BTU/hr
Highlight:	allen bradley memory module , plc processor module

NEW SEALED 1771-ACNR 1771ACNR15 ALLEN BRADLEY 1771-ACNR15 Controlnet Adapter PLC-5

Quick Detials

ALLEN BRADLEY
1771-ACNR
1771ACNR
TWO-PORT REDUNDANT MEDIA CONTROLNET (1.0 & 1.25) COMMUNICATION INTERFACE MODULE
CONTROLNET 1.5 AND BEYOND
1771 I/O ADAPTER. ONLY THE 1771-ACNR15 CAN BE USED WITH THE CONTROLNET PLC-5 BACKUP SYSTEM (1785-CHBM)
one year warranty

Specifications:

Allen Bradley PLC 5 Remote I/O Adaptor Module, 5 Watts Power Dissipation, 1.0 Amperes Backplane Current (at 5 Volts)

About 1771-ACNR

The 1771-ACNR is a Remote ControlNet I/O Adapter Module for the 1771 PLC-5 system. It allows communication between the 1771 I/O modules in a 1771 chassis and a ControlNet scanner port over a ControlNet network. It has various features such as high-speed data transfer, diagnostic messages, and redundant media port. It has a Network Access Port (NAP) through which the user can access the local communication network for programming and maintenance.
The 1771-ACNR module has a communication rate of 5Mbps. It requires a ControlNet PLC-5 controller and must be installed in remote ControlNet chassis. It needs a backplane current of 1A at 5V DC. It has a power dissipation of 5W and thermal dissipation of 17.06 BTU/hr. It needs to be installed in the far-left slot of the I/O chassis. Keying bands prevent incorrect module insertion in the slot. Keying bands for the ControlNet adapter modules are between 54 and 56 on the upper connector and between 16 and 18 on the lower connector. For wiring, a Quad shield RG-6 coaxial cable must be used.
The 1771-ACNR module has one standard BNC connector for cable connection to the module. Two switch assemblies i.e., the ten’s switch and the one’s switch, need to be set to configure the adapter module to the network address ranging from 01-99. For troubleshooting and diagnostics, it has an OK indicator, a status indicator, and an alphanumeric display on the front panel of the adapter module. It also has a Communication Reset Pushbutton for resetting the module and resuming communication after an error.

Technical specifications:

Manufacturer	AB
Brand
Part Number/Catalog No.	1771-ACNR
Module Type	Remote I/O Adaptor Module
Power Dissipation	5 Watts
Backplane Current (at 5 Volts)	1.0 Amperes
Thermal Dissipation	17.06 BTU/hr
Upper Connector Keying	54-56

Lower Connector Keying	16-18
Operating Temperature	32-140 F (0-60 C)
Storage Temperature	-40-185 F (-40-85 C)
Upper Connector Keying	54-56
Lower Connector Keying	16-18
Weight	2.1 lbs (1.0 kg)
Dimensions	3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)
