Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-ASB |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Weight: | 1.9 Pounds (0.9 Kilograms) | Dimensions: | 3.5 X 6.5 X 2.0 Inches (89 X 165 X 51 Millimeters) |
| High Light: | allen bradley memory module,plc processor module |
||

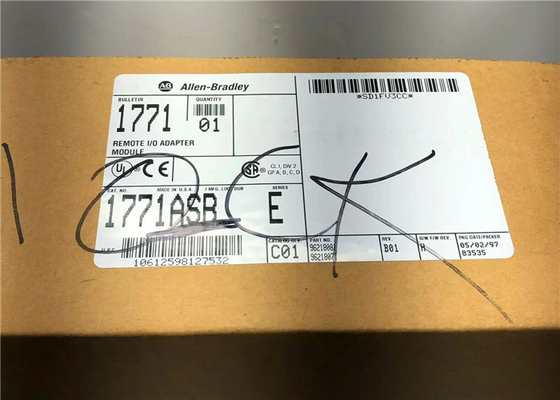

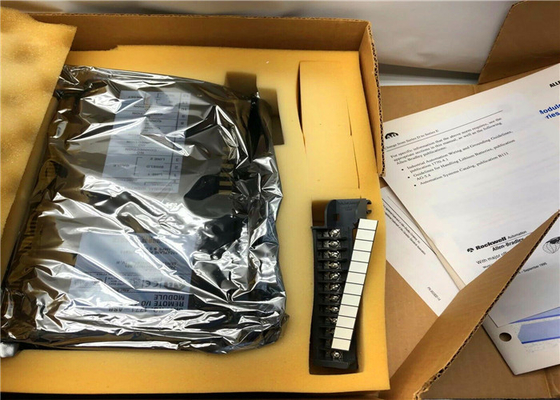

NEW LISTINGNEW 1771-ASB 1771-ASBK REMOTE I/O ADAPTER MODULE RIO 1771ASB 1771-ASB/E NIB
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 I/O Adapter Module, Universal Remote I/O Adapter with 57.6 kbit/s, 115 kbit/s, 230 kbit/s rate of communication, 1.0 Amp of backplane current (at 5 Volts DC), and with ControlNet, Ethernet, and DH+ communication networks.
About 1771-ASB

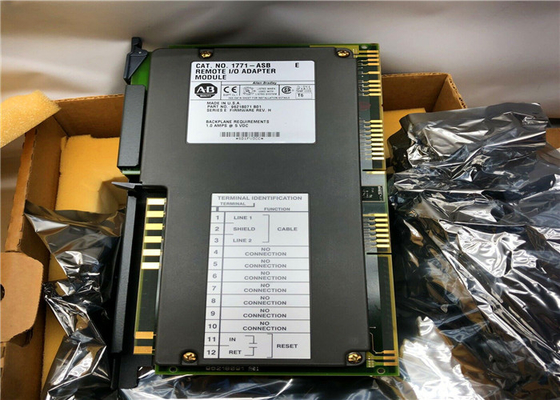

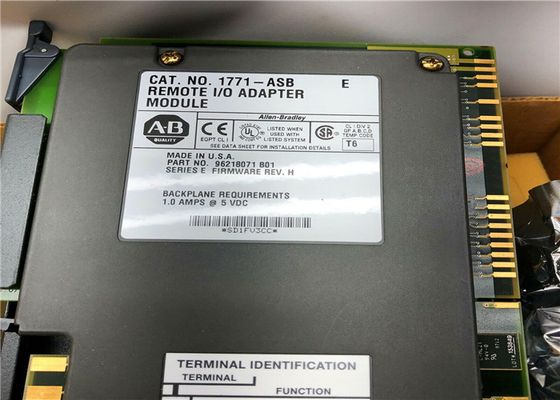

The 1771-ASB is a PLC 5 Universal Remote I/O Adapter Module. It interfaces with I/O modules in a 1771 I/O chassis with a remote scanner port for a processor over an I/O link. Using it instead of direct wiring reduces startup, installation, and maintenance costs by the I/O being closer to the actuators and sensors. The 1771-ASB supports Pass-Through and it uses the ControlNet, Ethernet, and DH+ networks for communication. It is compatible with 32 I/O-adapter devices via the I/O link and it uses 82W or 150W termination.
The 1771-ASB module has a communication rate of 57.6 Kbps, 115 Kbps, and 230 Kbps and it weighs 1.9 pounds. It has a backplane current load of 1 Amp at 5 Volts DC and a maximum power dissipation of 5.2W. It requires a remote I/O adapter port for connection. For installation, it must be mounted in the left-most slot of the 1771 chassis with the I/O modules controlled by a PLC 5 processor. For wiring, the 1770-CD Belden 9463 or equivalent cable must be used. The 1771-ASB module has Active, Adapter Fault, and I/O Rack fault diagnostic Indicators, 2 switch assemblies, and a field wiring arm. It provides faster data transmission and backplane scanning up to 2500 feet at 230.4K Baud. It supports serial communication and reads/writes data in parallel form. It supports 4, 8, 12, 16, or 32-slot I/O chassis and ½, 1 and 2-slot I/O addressing. The 1771-ASB improves scan time and I/O image space savings by scanning all slots except the last 4. It eases troubleshooting with its enhanced diagnostics features.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-ASB |
| Module Type | I/O Adapter Module |
| Port | Universal Remote I/O Adapter |
| Rate of Communication | 57.6 kbit/second, 115 kbit/second, 230 kbit/second |
| Connectors | Wiring Arm 1771-WB |
| Backplane Current (at 5 Volts) | 1.0 Amps |
| Cable | Belden 9463 |
| Operating Temperature | 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius) |
| Storage Temperature | -40 to 185 degrees Fahrenheit (-40 degrees 85 degrees Celsius) |
| Weight | 1.9 pounds (0.9 kilograms) |
| Lower Connector Keying | 16 to 18 |
| Dimensions | 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 millimeters) |
