Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-HRA |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Max Input Frequency: | 250 Kilohertz Differential Input | Outputs: | +/- 10 Volt DC Analog Command |
| High Light: | allen bradley memory module,plc processor module |
||

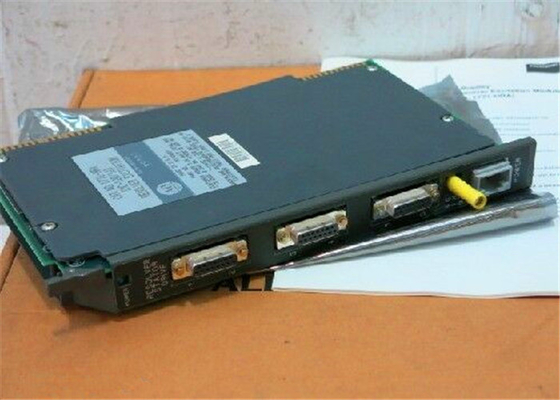

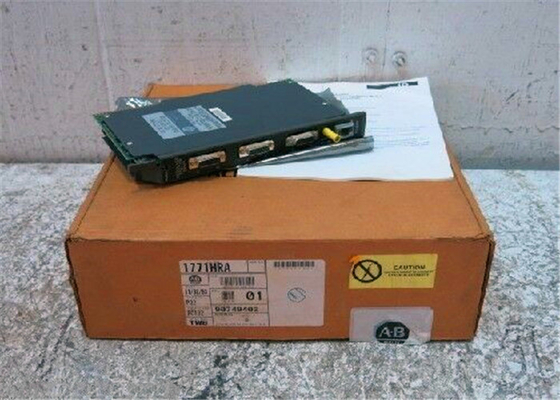

NEW ALLEN BRADLEY 1771-HRA RESOLVER EXCITATION MODULE / DRIVER MODULE (NEW IN BOX)
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Resolver Excitation Module
About 1771-HRA
The 1771-HRA Resolver Excitation Module by is a module located on the 1771 I/O chassis slot and is used with the IMC 120 System to provide Sine and Cosine Signals which excite the Stator of the IMC 120 Resolver Feed-back and provide position feedback to controller modules. The 1771-HRA uses the 1771-PS7 power supply module which provides 5V, 15V, and 24V DC power using the 1771-CAS cable connected to the 12-pin Latch and Lock connector of the 1771-HRA and it has a backplane power consumption of 0.4W. It has a Green LED indicator light to show the power status, and it uses the 1771-CAPR 12ft cable to connect to the termination panel. It has a Sinusoid output amplitude of 6.72V (RMS) minimum and a maximum amplitude of 7.42V (RMS) and it has 0.3% maximum Sine-Cosine matching amplitude. The 1771-HRA has a maximum OFFSET voltage of 0.01V DC with 0.1% TDH signal distortion and an output frequency of 2.5 KHz. Its Sine-to-Cosine relationship stays at 900 for 4.5 minutes, with a Sine Phase OFFSET of 0.450, and a Sine Drift of -+5.4 minutes. It has a maximum output inductive load of 80 Ohms at 800 and it has an output current limit of 0.81A (min) and 0.35A (max). The 1771-HRA has a maximum signal delay time of 2s from Power-up to Output.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-HRA |
| Module Type | Resolver Excitation Module |
| Fuse Voltage | 120 Volts |
| Max Input Frequency | 250 Kilohertz Differential Input |
| Outputs | +/- 10 Volt DC Analog Command |
| Slots | 2 Slots Per ES |
| Module Update Period | 2 ms/axis |
| Backplane Current | 1.7 Amperes |
| Wiring Arm | 1771-WB |
| Wiring Arm | 1771-WA |
| Pulse Capture Time | 50-9.999 Microseconds |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
