| Brand: | AB | Model: | 1771-IA |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| AC Operating Voltage: | 87-138 Volts | DC Operating Voltage: | 97-138 Volts |
| High Light: | allen bradley memory module,plc processor module |
||

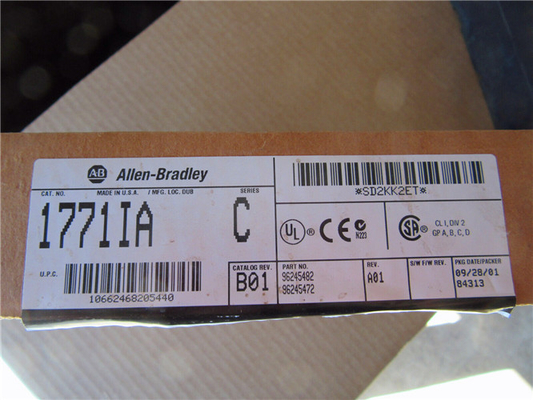

Allen Bradley 1771IA 1771-IA Input Module AC/DC 120V NEW!!! in Box with Manual
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Digital AC/DC Input Module, 8 Inputs, 120 Volts AC/DC Voltage Category, 75 Miliamperes Backplane Current
About 1771-IA

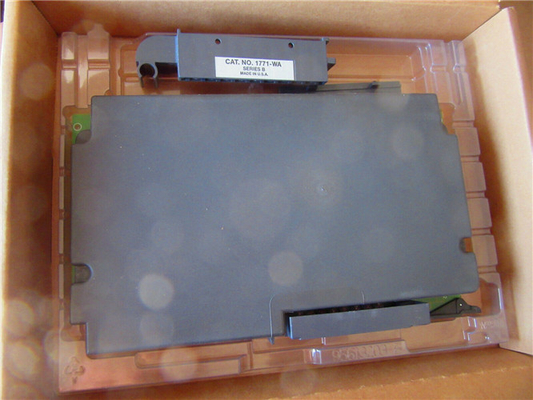

The 1771-IA is a PLC 5 Digital AC/DC Input Module. It converts AC signals provided by user devices to the logic level needed by the processor. It controls the state of corresponding bits in the PLC data table. It contains various input devices such as pushbuttons, limit switches, pilot lights, motor starters, and annunciators to interface with on/off sensors and actuators. It provides a modular design with space-saving and pocket-friendly means to add input to a PLC control system. It comes with a 1771-WA wiring arm to replace the module, eliminating the need to disconnect any wiring. It is a series C module and supports ½, 1, and 2 slot I/O addressing. It has applications with AC/DC proximity switches.
The 1771-IA module has 8 inputs with a 120V AC/DC voltage category. It has an operating voltage range of 87 - 138V AC or 97 - 138V DC. It has a typical signal delay of 24ms (±10) at on/off AC state and 10ms (±4) at on and 20ms (±9) at off DC state. It has a maximum Off-state current of 2.8mA and a backplane current load of 75mA. It has a maximum power dissipation of 10.7W and a thermal dissipation of 36.5 BTU/hr. It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are between pins 10 and 12 for upper connector and pins 4 and 6 for the lower connector.

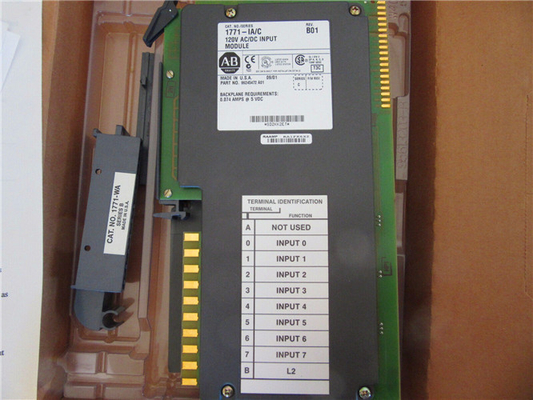

The 1771-IA module has 8 orange status indicators for field side indication at the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-IA |
| Module Type | Digital AC/DC Input Module |
| Number of Inputs | 8 Inputs |
| Voltage Category | 120 Volts AC/DC |
| AC Operating Voltage | 87-138 Volts |
| DC Operating Voltage | 97-138 Volts |
| Backplane Current | 75 Miliamperes |
| Max AC Off-State Current | 2.8 Miliamperes |
| Max DC Off-State Current | 2.8 Miliamperes |
| Typical AC Signal Delay (On) | 24 (+/- 10) ms |
| Typical DC Signal Delay (On) | 10 (+/- 4) ms |
| Typical AC Signal Delay (Off) | 24 (+/- 10) ms |
| Typical DC Signal Delay (Off) | 20 (+/- 9) ms |
| Wiring Arm | 1771-WA |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
