Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-IBD |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Backplane Current: | 130 Miliamperes | Voltage Category: | 10 To 60 Volts DC, Sink (Source Load) |
| High Light: | allen bradley memory module,plc processor module |
||

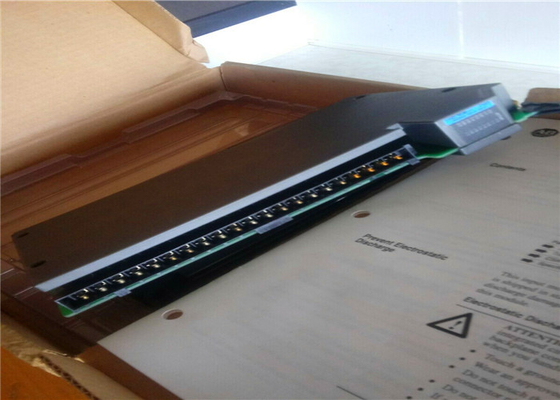

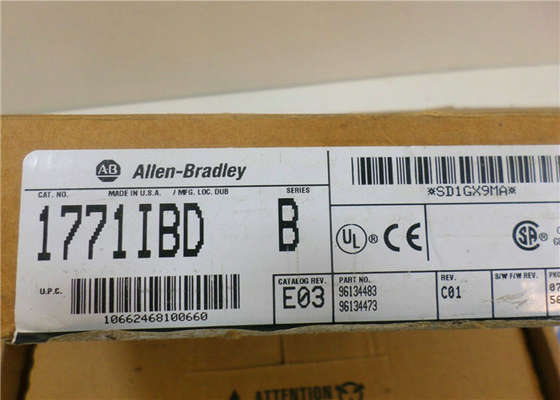

ALLEN BRADLEY 1771-IBD, SERIES B, INPUT MODULE, 10/30VDC, 16 POINT, NEW #120147
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Digital DC Input Module, 16 Inputs, 10-30 Volts DC Operating Voltage, 130 Miliamperes Backplane Current
About 1771-IBD

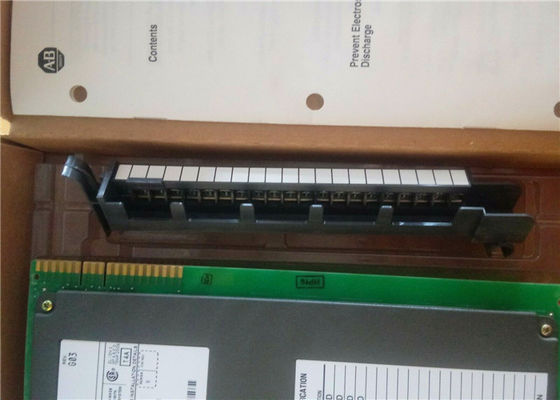

The 1771-IBD is a PLC 5 digital DC input module. It converts DC signals provided by user devices to the logic level needed by the processor. It directly controls the state of corresponding bits in the PLC data table. It provides a modular design with space-saving and pocket-friendly features that add input to a PLC control system. The 1771-IBD comes with a 1771-WH wiring arm for replacing the module, thus eliminating the need to disconnect the wiring first. It is a series B module and it supports ½, 1, and 2-slot I/O addressing. It is compatible with source-switching devices such as dry-contact switches, electro-mechanical transmitters, and panel-switching devices like selector switches and pushbutton.
The 1771-IBD module has 16 inputs with a 10 to 30 Volts DC Sink (Source load) voltage category. It has an operating voltage range of 10 to 30 Volts DC. It has a typical signal delay of 1.3 milliseconds (±0.1) at an on-DC state and 1.3 milliseconds (±0.1) at an off-DC state. It has a maximum off-state current of 2mA and a backplane current load of 130 mA. It has a maximum power dissipation of 6W and a thermal dissipation of 20.3 BTU/hour. It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are found between pins 16 and 18 for the upper connector and between pins 10 and 12 for the lower connector. The 1771-IBD module has 1 green status indicator and 16 red status indicators for customer-side indication at the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-IBD |
| Module Type | Digital DC Input Module |
| Number of Inputs | 16 Inputs |
| Voltage Category | 10 to 60 Volts DC, Sink (Source Load) |
| DC Operating Voltage | 10 to 30 Volts |
| Backplane Current | 130 Miliamperes |
| Max DC Off-State Current | 2.0 Miliamperes |
| Typical DC Signal Delay (On) | 1.3 (+/- 0.1) milliseconds |
| Typical DC Signal Delay (Off) | 1.3 (+/- 0.1) milliseconds |
| Wiring Arm | 1771-WH |
| Typical DC Signal Delay (On) | N/A |
| Typical AC Signal Delay (Off) | 20 (+/- 15) milliseconds |
| Typical DC Signal Delay (Off) | N/A |
| Wiring Arm | 1771-WN |
| Dimensions | 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 millimeters) |
