Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Model: | 1771-ID16GM |
|---|---|---|---|
| Type: | I/O Adapter Module | Origin Of Country: | USA |
| Power Dissipation: | Min 0.3 Watts, Max 7.0 Watts | Typical AC Signal Delay (Off): | 9 Or 18 Ms |
| High Light: | allen bradley memory module,plc processor module |
||

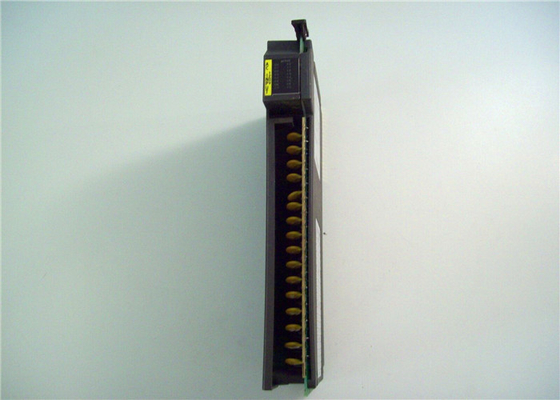

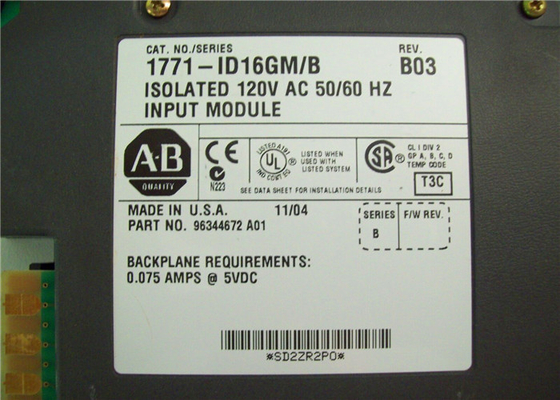

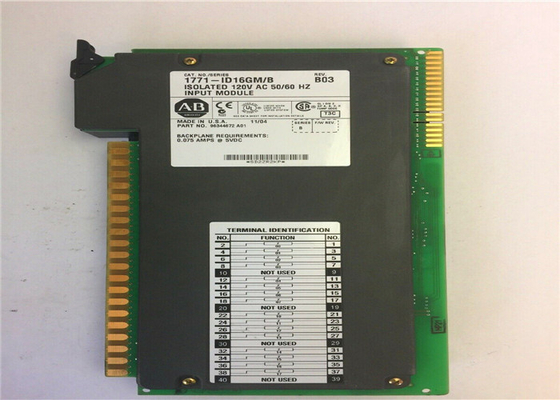

New ALLEN BRADLEY 1771-ID16GM/B INPUT MODULE REV B03 ISOLATED 120 VAC 50/60 HZ
Quick Detials
one year warranty
Specifications:
Allen Bradley PLC 5 Isolated Input Module, 16 Inputs, 120 Volts AC Nominal Input Voltage, 2.5 Miliamperes AC Nominal Input Current, 75 Miliamperes max Backplane Current
The 1771-ID16GM is a 120V AC Isolated Input Module that is designed specifically for use in General Motors devices only. It has 16 inputs per module and can be used with a Series B I/O chassis or later and it is not compatible with the 1771-AL I/O adapter. Plus, it has been qualified for Bulletin 700P style 120V AC relay circuits only. It features selectable input filtering that limits the effects of voltage transients for minimized electrically-related downtime, optimal product life, and enhanced power quality.
The 1771-ID16GM General Motors AC Isolated Input has specific current requirements. It has a nominal current of 2.5mA and a nominal voltage of 120V AC. The On-state current ranges from a minimum of 2mA at 105V AC to 0.8mA at 66V AC. It is powered by the backplane via a power supply with 75mA maximum backplane current. It has an input voltage range of 105-120V AC at 47-63Hz.
For proper circuit operation with the 1771-ID16GM, all solenoid or inductive input loads must provide external surge suppression. The 17 indicators of the module consist of 1 active indicator and 16 input status indicators. It has 2 customer-selectable for the input filter time jumpers –one for inputs 00-07, and the other sets the input filter time for inputs 10-17.
Technical specifications:
| Manufacturer | AB |
| Brand | |
| Part Number/Catalog No. | 1771-ID16GM |
| Module Type | Isolated Input Module |
| Inputs Per Module | 16 Inputs |
| Input Voltage Range | 105-120 Volts AC, 47-63 Hertz |
| Nominal Input Voltage | 120 Volts AC |
| Nominal Input Current | 2.5 Miliamperes AC |
| Power Dissipation | Min 0.3 Watts, Max 7.0 Watts |
| Backplane Current | 75 Miliamperes max |
| Wiring Arm | 1771-WN |
| Typical AC Signal Delay (On) | 1 ms |
| Typical DC Signal Delay (On) | 1 ms |
| Typical AC Signal Delay (Off) | 9 or 18 ms |
| Typical DC Signal Delay (Off) | 9 ms |
| Wiring Arm | 1771-WN |
| Dimensions | 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm) |
