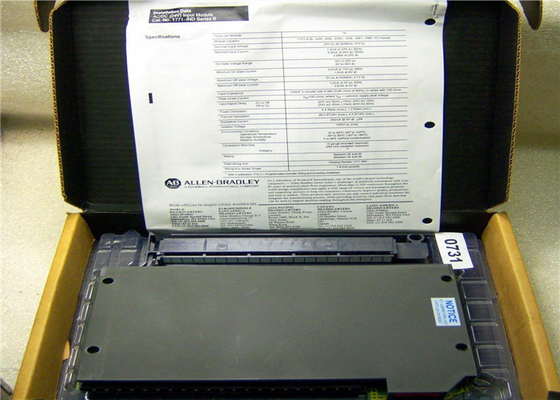

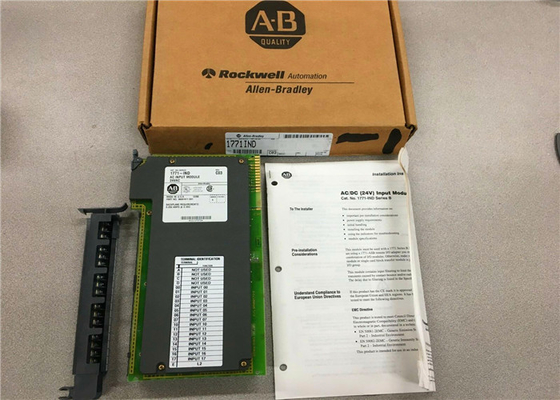

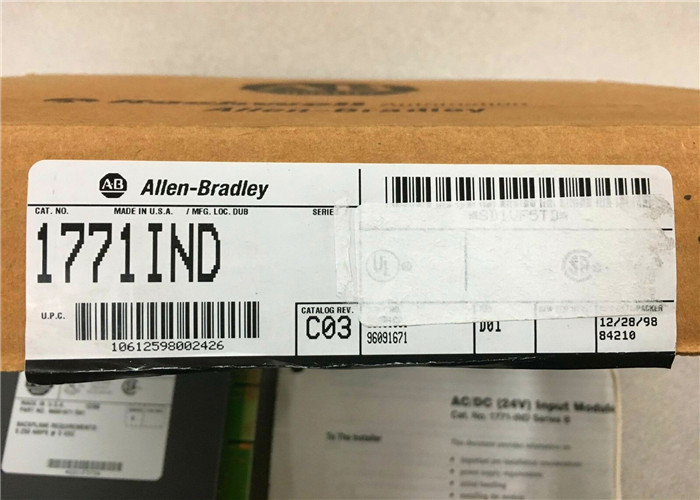

PLC-5 Digital Input Module 1771-IND WITH 1771-WH SWING ARM

Large Image : PLC-5 Digital Input Module 1771-IND WITH 1771-WH SWING ARM Get Best Price

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CE
Model Number:	1771-IND

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Brand:	AB	Model:	1771-IND
Type:	I/O Adapter Module	Origin Of Country:	USA
AC Operating Voltage:	16-30 Volts	Voltage Category:	24 Volts AC/DC
Highlight:	allen bradley memory module , plc processor module

NEW IN BOX PLC-5 INPUT MODULE 1771-IND WITH 1771-WH SWING ARM

Quick Detials

ALLEN BRADLEY
1771-IND
1771IND
INPUT MODULE
16POINT
24VAC
PLC5
one year warranty

Specifications:

Allen Bradley PLC 5 Digital AC/DC Input Module, 16 Inputs, 24 Volts AC/DC Voltage Category, 250 Miliamperes Backplane Current

About 1771-IND

The 1771-IND module supports 16 units and 24 volts of AC/DC voltage on 250 mA backplane current. The module has a long life of around 20-100 million operations.
The 1771-IND supports applications of 10-276V AC because it belongs to the AC solid-state series of digital I/O modules. The AC operating voltage of the 1771-IND is 16-30 volts while the DC operating voltage range is 9-30 volts. The maximum AC off-state current is 1.5 mA and maximum DC off-state current is 0.6mA.
This input module also features a typical AC signal delay in the ON-state is 35(+/- 10) ms and the DC signal delay is 10ms in the ON-state. The AC signal delay in an OFF-state is 45(+/- 15) ms and the DC signal delay in the same state is 50ms. The convenient design of this 1771-IND makes it easy to mount in a rack.
The basic purpose of this device is to convert the AC signals to the appropriate logic level from the user devices within the processor. They include special points like limit switches, proximity switches, float switches, selector switches, and pushbutton switches. These devices compile a wide variety of input terminals for each module. The unique input filtering feature allows the user to limit the effect of voltage transients which are caused by electrical noise and/or contact bounce.

Technical specifications:

Manufacturer	AB
Brand
Part Number/Catalog No.	1771-IND
Module Type	Digital AC/DC Input Module
Number of Inputs	16 Inputs
Voltage Category	24 Volts AC/DC
AC Operating Voltage	16-30 Volts
DC Operating Voltage	9-30 Volts
Backplane Current	250 Miliamperes

Max AC Off-State Current	1.5 Miliamperes
Max DC Off-State Current	0.6 Miliamperes
Typical AC Signal Delay (On)	35 (+/- 10) ms
Typical DC Signal Delay (On)	10 ms
Typical AC Signal Delay (Off)	45 (+/- 15) ms
Typical DC Signal Delay (Off)	50 ms
Wiring Arm	1771-WH
Mounting	Rack Mountable
