Product Details:
Payment & Shipping Terms:
|
| Brand: | Yaskawa | Model: | SGM-A5A312 |
|---|---|---|---|
| Type: | AC Servo Motor | Country Of Origin: | Japan |
| Power: | 50W | Current: | 0.6A |
| Output Speed: | 3000RPM | Voltage: | 200V |
| High Light: | Industrial Servo Motor 5.5KW,1500RPM Industrial Ac Servo Motor,Torque AC Industrial Servo Motors |
||

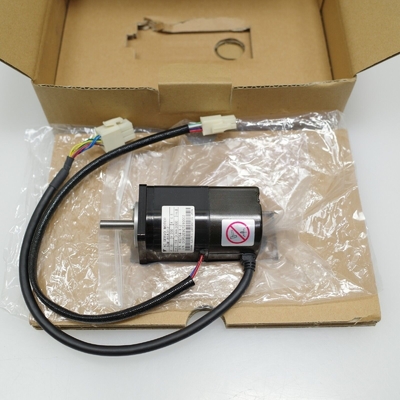

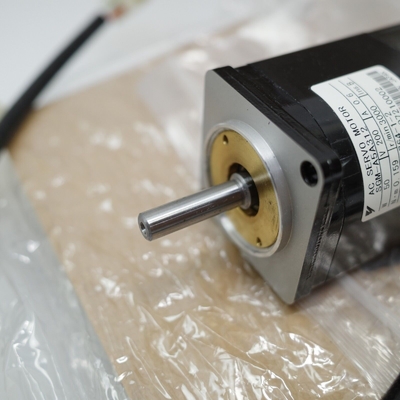

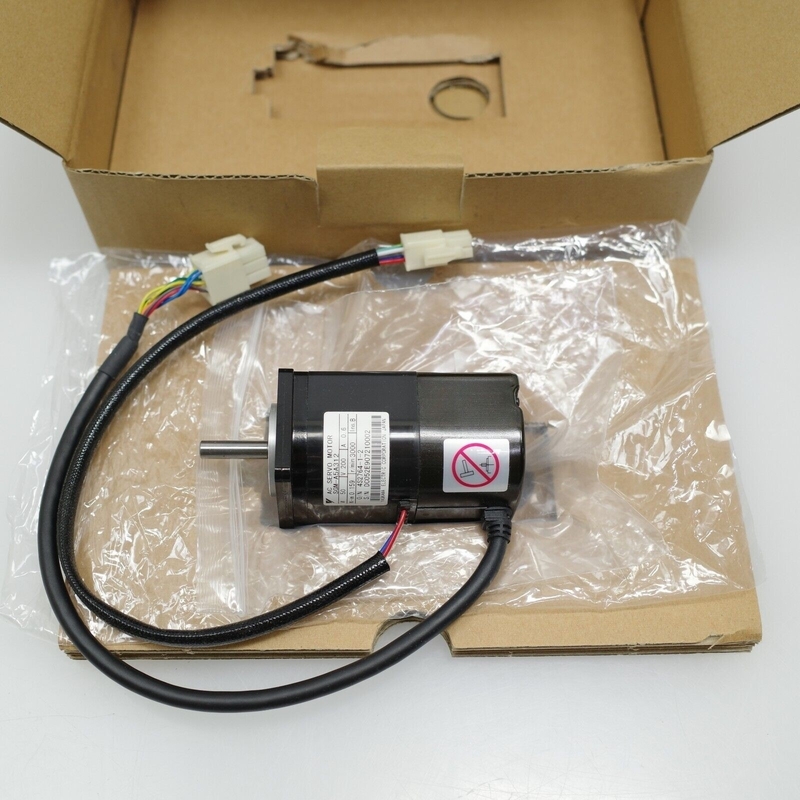

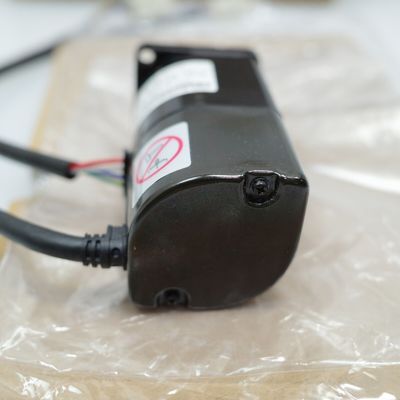

YASKAWA SGM-A5A312 AC Servo Motor 50W 0.6A 200V 3000RPM NEW
Specifications Of SGM-A5A312
| Description | SGM-A5A312 is a Motors-AC Servo produced by Yaskawa |
| Servomotor Type | SGM |
| Rated Output | 50W (0.07HP) |
| Power Supply | 200V Standard |
| Encoder Specifications | 2048 P/R Incremental Encoder |
| Revision Level | Standard or CE Specification |
| Shaft Specifications | Staight without keyway |
| Options | None |
SGM Of SGM-A5A312
0.45kW to 15kW, Rated Speed 1,500 RPM
The SGMGH Sigma II servo motor is a legacy product and no longer promoted in the Americas. The SGMGH had a medium-inertia rotor and incorporated the segmented stator design, which dramatically reduced overall size.
|
Specifications |
|||
|---|---|---|---|
|
Time Rating: |
Continuous |
Ambient Humidity: |
20 to 80% (non-condensing) |
|
Insulation: |
Class F |
Rated Speed: |
1500rpm |
|
Vibration: |
15mm or less |
Maximum Speed: |
0.45 to 7.5kW: 3000rpm |
|
Withstand Voltage: |
1500VAC |
Excitation: |
Permanent magnet |
|
Insulation Resistance: |
10MW minimum at 500VDC |
Drive Method: |
Direct drive |
|
Enclosure: |
Totally-enclosed, self-cooled |
Mounting: |
Flange-mounted |
|
Ambient Temperature: |
0 to 40ºC |
||
Features Of SGM-A5A312
1. Compact
* Small sized motor
2. Higher Speed and acceleration
* Up to 3000rpm maximum
* High torque to inertia ratio
3. Encoders
*17-bit(32,768 ppr x 4) incremental encoder(standard)
*17-bit absolute encoder (optional)
4. Enhanced Environmental Resistance
* Totally enclosed, self-cooled IP67(excluding shaft)
* Shaft seal(optional)
5. Application Emphasis
6. Certified International Standards
* UL, cUL recognized(File #: E165827) CE compliance
Specifications Of SGM-A5A312
|
MOTORS: SGMGH- |
SGMGH-Rated Output |
Rated Torque |
Instantaneous Peak Torque |
Rated Current |
Instantaneous Maximum Current |
||
|
kW (hp) |
N.m |
Lbf.in(KG.cm) |
N.m |
Lbf.in(KG.cm) |
Arms |
Arms |
|
|
05A*A |
0.45 (0.6) |
2.84 |
25 (29) |
8.92 |
79 (91) |
3.8 |
11 |
|
09A*A |
0.85 (1.1) |
5.39 |
48 (55) |
13.8 |
122 (141) |
7.1 |
17 |
|
13A*A |
1.3 (1.7) |
8.34 |
74 (85) |
23.3 |
207 (238) |
10.7 |
28 |
|
20A*A |
1.8 (2.4) |
11.5 |
102 (117) |
28.7 |
254 (293) |
16.7 |
42 |
|
30A*A |
2.9 (3.9) |
18.6 |
165 (190) |
45.1 |
400 (460) |
23.8 |
56 |
|
44A*A |
4.4 (5.9) |
28.4 |
252 (290) |
71.1 |
629 (725) |
32.8 |
84 |
|
55A*A |
5.5 (7.4) |
35 |
310 (357) |
87.6 |
775 (894) |
42.1 |
110 |
|
75A*A |
7.5 (10) |
48 |
425 (490) |
119 |
1053 (1210) |
54.7 |
130 |
|
1AA*A |
11 (15) |
70 |
620 (714) |
175 |
1550 (1790) |
58.6 |
140 |
|
1EA*A |
15 (20) |
95.4 |
845 (974) |
224 |
1988 (2290) |
78 |
170 |
Applications:
Transfer Machine, Food Processing Machines, Material Handling Equipment, Machine tools and woodworking machines, Packaging machines, Gantry robots, Press automation, Thermoforming
