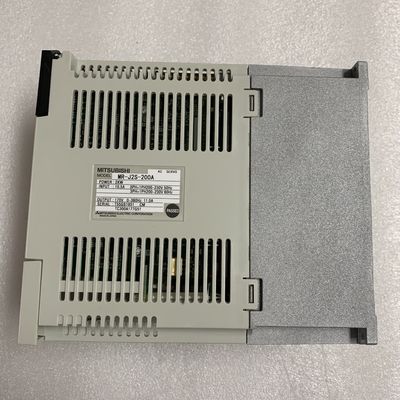

Mitsubishi MR-J2S-200A Industrial Servo Drives 2KW 10.5A 50/60HZ NEW

The Mitsubishi MR-J2S-200A (MRJ2S200A) is a Melservo MR-J2 series servo amplifier with an output wattage of 2kW. The amplifier contains a digital pulse train and two analog reference inputs which assists three disparate pulse trains. There is 3 phases in the servo amplifier which are analog and digital inputs. It inputs 200-230 Volts with the frequency 50-60Hz and outputs 170 Volts with the frequency 0-360Hz, and yields 2kW. The MR-J2S-200A servo amplifier has a torque limit, which is regulated by parameters or its external non-digital input, the maximum torque’s voltage ranges from 0 to +10VDC. The MR-J2S-200A analog input has a command speed’s maximum torque of 0 to ±8VDC whose feed-in impedance extends between 10 to 12 kilo-ohms and the pulse command of the MR-J2S-200A is 0 to ±10000 pulses.

The MR-J2S-200A output servo amplifier also has a PC interface RS-232C/RS-422 cable. The MR-J2S-200A is usually fitted to an encoder and motor by the CN2 connector. This servo amplifier may be paired with a number of motors, and it made to function well with certain motors, and they are these, the: HC-SFS152, HC-SFS, HC-RFS153, and HC-RFS103. A PC may be concatenated to a CN3 connector and/or a terminal block that is junctional with a CN1B connector in the MR-J2S-200A. There is a battery compartment for a discretionary A6BAT Battery.

The area of the MR-J2S-200A servo amplifier should maintain an ambient temperature between 0 and 55°C (32 to 131°F) in order for it to sustain its normative operations.



Technical Specifications Of MR-J2S-200A

Part Number: MR-J2S-200A (MRJ2S200A)
Module Type: Output Servo Amplifier
Voltage/Frequency: 200-230VAC, 50/60Hz, 3 Phase
Output Wattage: 2kW
Weight: 4.4lbs (2.0kg)
