Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model: | HC-KFS73B |
|---|---|---|---|
| Type: | AC Servo Motor | Voltage: | 103 V |
| Rotated Speed: | 3000 RPM | Power: | 750 W |
| Current: | 5.6 A | Origin Of Country: | Japan |

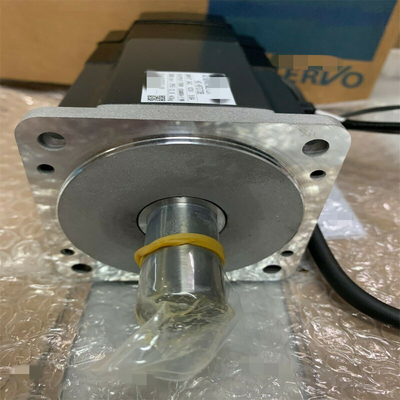

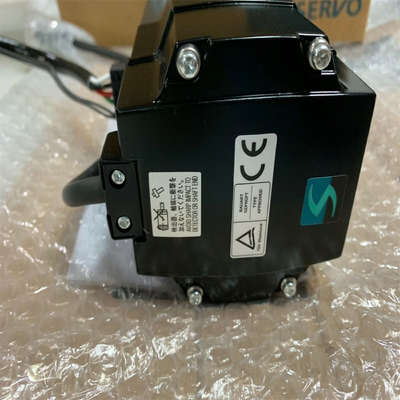

Mitsubishi HC-KFS73B AC Servo Motor 3AC 103V 5.6A 3000RPM 750W NEW
Specifications Of HC-KFS73B
| Description | HC-KFS73B is a Motors-AC Servo produced by Mitsubishi |
| Brand | Mitsubishi |
| Model | HC-KFS73B |
| Servomotor Type | HC-KFS Series; Low inertia,small capacity,high resolution |
| Rated Output | 750W |
| Rated speed | 3000 rpm; 103V |
| Electromagnetic brake | with brake |
| Reduction Gear | Without |
| Shaft type | Standard (straight shaft) |
| Compliance with Standard | Standard model |
| Origin Of Country | Japan |
| Condition | New |
| Warranty | 1 Year |
| Current | 5.6A |
MITSUBISHI HC-KFS73B Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia small power motor
Model: HC-KFS73B
Motor series: low inertia, low power.
Rated output power: 0.75kw.
Rated speed: 3000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 15.0kw.
Interface type: SSCNET type III fiber communication.
Power specification: three phase AC200V.
High speed serial communication between the SSCNET and the servo amplifier by using the fastest up to 0.44ms communication cycle,
A fully synchronous control system can be constructed MITSUBISHI HC-KFS73B.
It is only necessary to insert the special optical fiber into the joint to form SSCNET III network, which greatly reduces the wiring work and reduces the possibility of false wiring HC-KFS73B
Due to the adoption of the optical fiber communication, the anti noise ability can be greatly improved and the long distance wiring of 50 meters (maximum 800 meters x 16 axes) can be realized MITSUBISHI HC-KFS73B.
A servo amplifier to meet the full closed loop control function MR-J3-B-RJ006.
Suitable for mechanical servo optimization and adjustment!
More advanced optimization adjustment function and control function to maximize mechanical properties. Motor series: low inertia, low power.
Rated output power: 0.1kw.
Rated speed: 3000r/min.
Whether with brake: No.
Shaft end: Standard (straight) MITSUBISHI HC-KFS73B.
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resollution ensures excellent performance and stability at low speed HC-KFS73B.
All motor dimensions are the same as before and all are compatible with the wiring. The length of the line: 2M.
IP level: IP65.
Cable lead out direction: motor shaft differennt side HC-KFS73B.
Bending life: standard.
The cable is not shielded.
Encoder with cable (motor side); for HF-KP/HF-MP series (motor shaft with side extraction).
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
model Of HC-KFS73B
| HC-MFS/KFS13K | HC-MFS/KFS13D |
| HC-MFS/KFS13B | HC-MFS/KFS13BD |
| HC-MFS/KFS13G1(1/5) | HC-MFS/KFS13G1(1/12) |
| HC-MFS/KFS13G1(1/20) | HC-MFS/KFS13BG1(1/5) |
| HC-MFS/KFS13BG1(1/12) | HC-MFS/KFS13BG1(1/20) |
| HC-MFS/KFS13G2 (1/5) | HC-MFS/KFS13G2 (1/9) |
| HC-MFS/KFS13G2 (1/20) | HC-MFS/KFS13G2 (1/29) |
| HC-MFS/KFS13BG2 (1/5) | HC-MFS/KFS13BG2 (1/9) |
| HC-MFS/KFS13BG2 (1/20) | HC-MFS/KFS13BG2 (1/29) |
| HC-MFS/KFS43K | HC-MFS/KFS43B |
| HC-MFS/KFS43BK | HC-MFS/KFS43G1(1/5) |
| HC-MFS/KFS43G1(1/12) | HC-MFS/KFS43G1(1/20) |
| HC-MFS/KFS43G1(1/20) | HC-MFS/KFS43BG1(1/12) |
| HC-MFS/KFS43BG1(1/20) | HC-MFS/KFS43G2 (1/5) |
| HC-MFS/KFS43G2 (1/9) | HC-MFS/KFS43G2 (1/20) |
| Item Id | Item Description |
|---|---|
| HC-KFS053BD | SRVMTR 50W, BRAKE, D-SHAFT |
| HC-KFS053BG1 1/12 | SRVMTR 50W, BRAKE, GEAR 1/12 |
| HC-KFS053BG1 1/20 | SRVMTR 50W, BRAKE, GEAR 1/20 |
| HC-KFS053BG1 1/5 | SRVMTR 50W, BRAKE, GEAR 1/5 |
| HC-KFS053BG2 1/20 | SRVMTR 50W, BRAKE, GEAR 1/20 |
| HC-KFS053BG2 1/29 | SRVMTR 50W, BRAKE, GEAR 1/29 |
| HC-KFS053BG2 1/5 | SRVMTR 50W, BRAKE, GEAR 1/5 |
| HC-KFS053BG2 1/9 | SRVMTR 50W, BRAKE, GEAR 1/9 |
| HC-KFS053BK | SRVMTR 50W BRK KEY |
| HC-KFS053D | Servo Motor D Shaft |
| HC-KFS053G1 1/12 | SRVMTR 50W, GEAR 1/12 |
| HC-KFS053G1 1/20 | SRVMTR 50W, GEAR 1/20 |
| HC-KFS053G1 1/5 | SRVMTR 50W, GEAR 1/5 |
| HC-KFS053G2 1/20 | SRVMTR 50W, GEAR 1/20 |
| HC-KFS053G2 1/29 | SRVMTR 50W, GEAR 1/29 |
| HC-KFS053G2 1/5 | SRVMTR 50W, GEAR 1/5 |
| HC-KFS053G2 1/9 | SRVMTR 50W, GEAR 1/9 |
| HC-KFS053K | SRVMTR 50W, KEY |
| HC-KFS13 | Servo Motor 100w |
| HC-KFS13B | Motor-SWLL |
