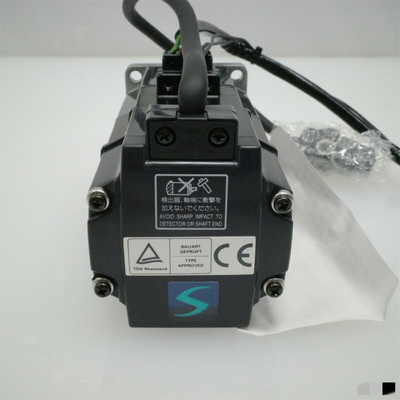

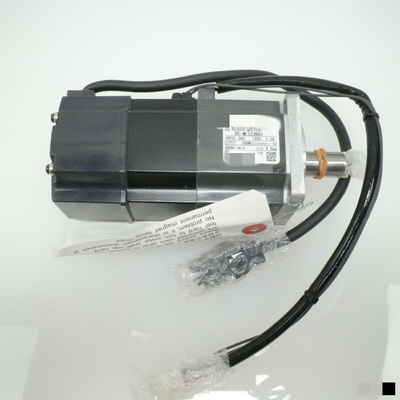

Mitsubishi HC-MFS23BG1 AC Servo Motor 3AC 1.5A 120V 3000RPM NEW

Protection level: IP55 does not include the shaft part and the connector.

Features: ultra low inertia is suitable for high frequency operation.

Application examples: the insertion device, the assembly machine.

Motor series: low inertia, medium and small capacity.

Using a serial absolute / incremental encoder.

Rated output power: 0.75kw.

Rated speed: 2000rpm.

With a brake band.

Shaft end: straight shaft.

Comparison of single phase induction motor and servo motor.

The working principle of the AC servo motor is similar to that of the single phase induction motor,

But the rotor resistance of the former is much larger than that of the latter,

So the servo motor is compared with the single machine asynchronous motor,

There are three notable features:

1, large starting torque MITSUBISHI HC-MFS23B

2, a wide range of operation.

3, no rotation phenomenon.

AC servo motor running smoothly, low noise.

But the control characteristic is non-linear, and because the rotor resistance is big, the loss is big, the efficiency is low,

Therefore, compared with the same capacity DC servo motor, the volume is large and the weight is heavy,

So it is only suitable for 0 MITSUBISHI HC-MFS23B. 5-100W small power control system. MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.

Rated output: 0.2kw.

Universal interface.

Voltage: 3 phase AC200VAC or single phase AC230V MITSUBISHI HC-MFS23B.

Super function, excellent performance.

High performance CPU integration, greatly improve product responsiveness.

Due to the application of high performance CPU, so that the response can be greatly improved.

Speed loop frequency response increased to more than 550HZ.

MR-J2-Super series is the best device for high speed positioning applications.

Easy adjustment.

Model adaptive control / advanced real time automatic tuning.1 axis servo amplifier.

MITSUBISHI general AC servo amplifier MELSERVO-J4 series.

Rated output: 0.75kw.

Interface: SSCNET III /H.

Power supply: three phase AC200V.

Servo amplifier supporting SSCNET III /H.

Complete synchronization system capable of using high speed serial optical communication.

Can be combined with the servo system controller to maximize the performance of the servo system.

2 low frequency vibration can be suppressed at the same time by supporting the seismic algorithm of 3 inertial equipment.

Configurator2 MR to achieve convenient adjustment.

Effectively restrain the low frequency aftershock effect produced by the front end of the boom or the main body of the device 100Hz HC-MFS23B.

Can effectively shorten the time to control the stability of the aftershock.

In the XY design of trajectory control, improve the accuracy of arc track.

At the same time, it can eeffectively control the phenomenon of quadrant protrusion caused by the rotation direction of the servo motor, which is caused by friction and twisting HC-MFS23B.
