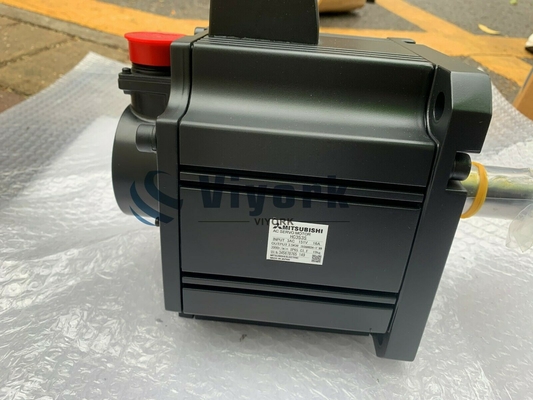

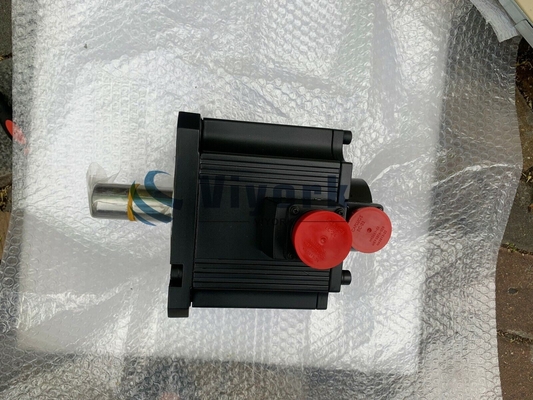

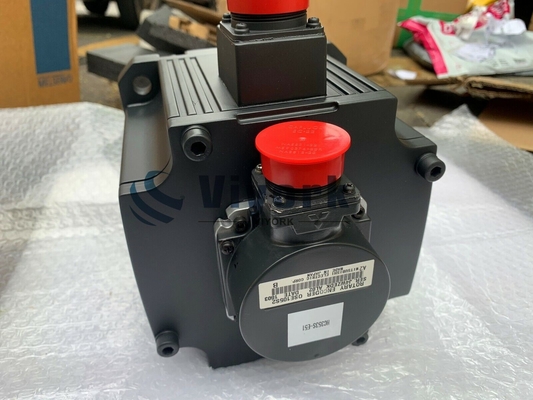

Mitsubishi HC-RFS203 AC Servo Motor 3 PHASE 14A 118V 3000RPM 2KW NEW

Control complex, easy to achieve intelligent,
The electronic commutation method is flexible and can be changed by square wave or sine wave.
Motor maintenance free, high efficiency, low operating temperature,
Electromagnetic radiation is very small, long life, can be used in a variety of environments HC-RFS203 datasheet PDF catalog HC-RFS203 PDF datasheet HC-RFS203
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
Synchronous machines are commonly used in motion control,
Its power range, you can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation HC-RFS203 datasheet PDF catalog HC-RFS203 PDF datasheet.

The rotor of the servo motor is permanent magnet,
Drive controlled U/V/W three phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field,
At the same time the motor comes with the encoder feedback signal to the drive,
According to the feedback value and the target value, the driver is compared,
Adjust the rotor rotation angle HC-RFS203 datasheet PDF catalog HC-RFS203 PDF datasheet.
The accuracy of the servo motor is determined by the accuracy of the encoder. Motor series: low inertia, low power.
Rated output power: 0.2kw.
Rated speed: 3000r/min.
Whether with brake: No.
Shaft end: key shaft (open slot).


Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Applicationn example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine HC-RFS203 datasheet PDF catalog HC-RFS203 PDF datasheet.
High resolution encoder 131072p/rev (17 bit).
The encoder with high reesolution ensures excellent performance and stability at low speed HC-RFS203 datasheet PDF catalog HC-RFS203 PDF datasheet.
All motor dimensions are the same as before and all are compatible with the wiring.
