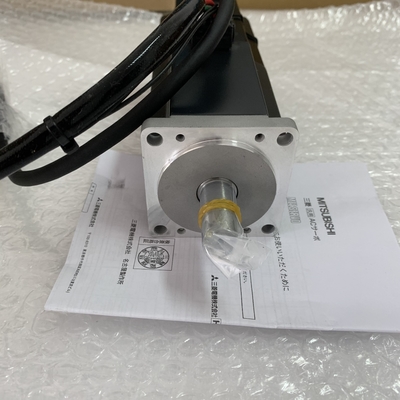

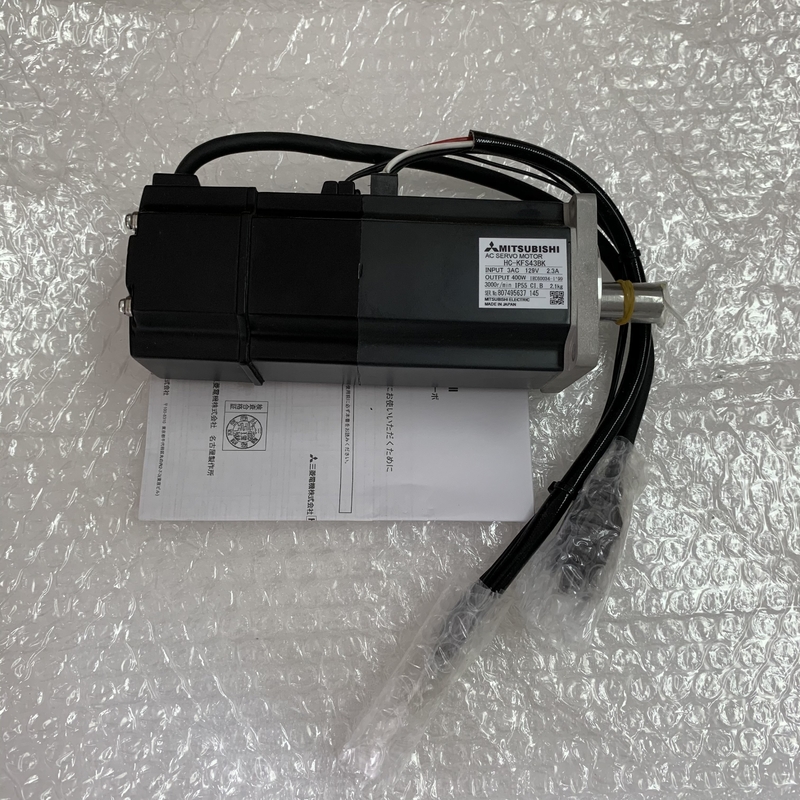

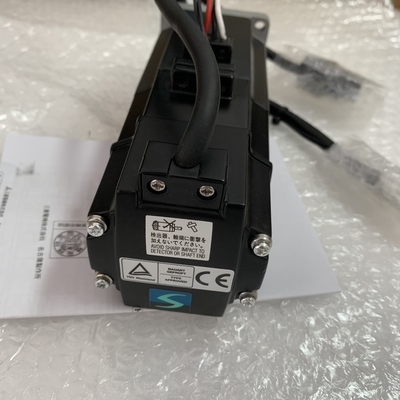

Mitsubishi HC-KFS43BK AC Servo Motor 3 PHASE 3000RPM 400W 129V NEW

MITSUBISHI HC-KFS43BK Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia small power motor
Model: HC-KFS43BK
Motor series: low inertia, low power.
Rated output power: 0.4kw.
Rated speed: 3000r/min.
Whether to bring the brakes: with.
Shaft end: key shaft (open slot).
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery.


Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

Servo motor series: low inertia, medium power.
Rated output: 0.5kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia is widely used in general machinery.
IP level: IP65.


Application example:
1, roller type feeding equipment.
2, loading / unloading equipment MITSUBISHI HC-KFS43BK .
3, high frequency transmission system.
Abundant motor product line can optimize the performance of the machine HC-KFS43BK
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor. Servo motor series: medium inertia, medium power.
Rated output: 2.0kw.
Rated speed: 1000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis) MITSUBISHI HC-KFS43BK .
Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.


Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor MITSUBISHI HC-KFS43BK .


Characteristic

(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!Motor series: medium inertia, medium power.


Rated output power: 2.0kw.
Rated speed: 2000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).
Features: medium inertia froom low speed to high speed three modes for selection, suitable for different applications HC-KFS43BK .
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high reesolution ensures excellent performance and stability at low speed HC-KFS43BK .
All motor dimensions are the same as before and all are compatible with the wiring.
