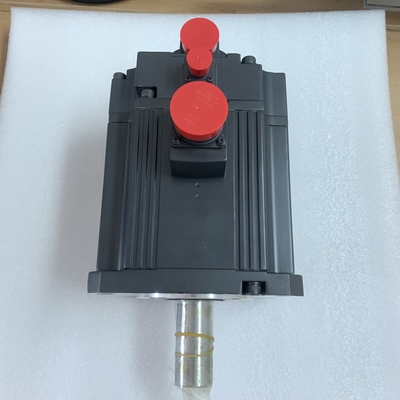

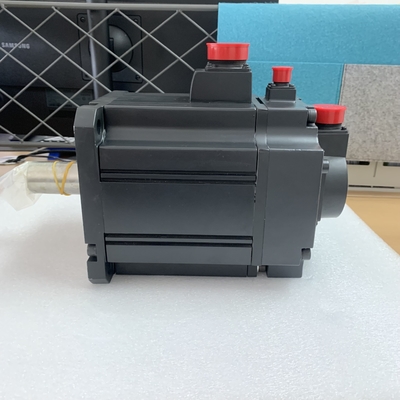

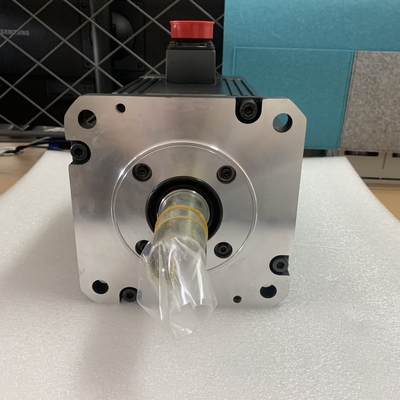

Mitsubishi HC-SFS502B AC Servo Motor 3 PHASE 5KW 133V 2000RPM 26A NEW

MITSUBISHI HC-SFS502B Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS502B
Motor series: medium inertia, medium power.
Rated output power: 5.0kw.
Rated speed: 2000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).


Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

"1 axis servo amplifier.
MITSUBISHI general AC servo amplifier MELSERVO-J4 series.


Rated output: 0.1kw.
Interface: General purpose.
Power supply: three phase AC200V or single phase AC200V power supply.
Single phase AC200V is limited to 0.75kW following servo amplifier.
Servo amplifier supporting universal interface MITSUBISHI HC-SFS502B.
Servo amplifier for universal interface.
Speed / torque control of position control and analog voltage command can be carried out by using pulse train command HC-SFS502B
Support Max instruction pulse frequency 4 Mpulses/s.
Not only inherited the original product of high performance and high reliability, but also made a further improvement beyond imagination.


MELSERVO-J4 grand debut.
Servo market for the star of tomorrow MITSUBISHI HC-SFS502B. World class servo products.
The new generation of MELSERVO should be what kind of? The answer to this question is already floating
Out of the water. MELSERVO-J4, it represents the whole digital, the original high performance based on an evolutionary.
Is also fully meet the requirements of human beings and the environment MELSERVO latest masterpiece.
For example, the safety and environmental requirements for the safety of human use and the safety specifications and "to Use Easy" design MITSUBISHI HC-SFS502B.


To meet the needs of the environmental protection era of energy-saving performance.
Beyond the performance of the evolution of MELSERVO-J4, shocking debut! "Servo motor series: low inertia, small capacity.
Rated output: 0.4kw.
Rated speed: 3000r/min.
Electromagnetic brake: incidental.
Oil seal: incidental (Note 1, note 2, note 3).
Power supply: 200V.


Note 1 through HG-KR and HG-MR series 0.1kW and HG-SR series can be supported.
Note 2 with the speed reducer case, do not configure the oil seal.
Note 3 with oil seal HG-KR, HG-MR series servo motor''s appearance size standard is different.
The rated speed is 3000r/min, the maximum speed is 6000r/min.
The maximum torque of 350% of the rrated torque, high torque in the field of high rotation, only to support the HG-KR series products HC-SFS502B.

Standard high resolution absolute position encoder (4194304p/rev (22bit)).
To achhieve a higher accuracy of the positioning function HC-SFS502B.
Improve the environmental performance of HG-KR, HG-MR, HG-RR, HG-UR series of products using IP65.
