Product Details:
Payment & Shipping Terms:
|
Brand: | Mitsubishi | Model: | HF-KP23 |
---|---|---|---|
Type: | AC Servo Motor | Voltage: | 111 V |
Rotated Speed: | 3000 RPM | Power: | 200 W |
Current: | 1.4 A | Frequency: | 150 HZ |

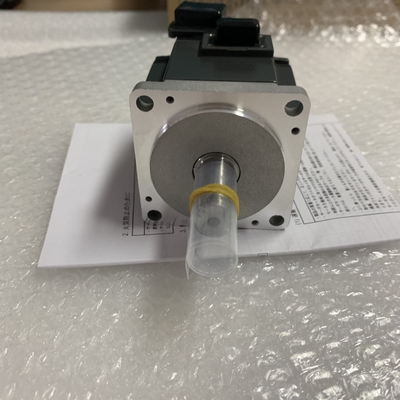

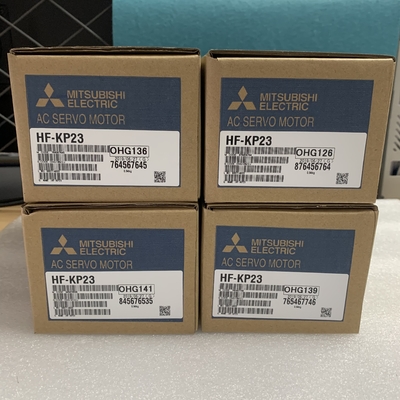

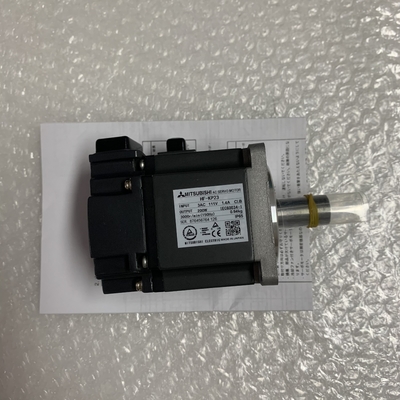

Mitsubishi HF-KP23 AC Servo Motor 3 PHASE 200W 111V 3000RPM 150HZ NEW
Specifications Of HF-KP23
Description | HF-KP23 is a Motors-AC Servo produced by Mitsubishi |
Servomotor Type | HF-KP Series; low inertia,small capacity |
Rated Output | 200W |
Rated speed | 3000 rpm; 111V |
Current | 1.4A |
Brand | Mitsubishi |
Warranty | 1 Year |
Origin Of Country | Japan |
Condition | New |
Electromagnetic brake | none |
Shaft end | Standard (Straight shaft) |
Options | none |
MITSUBISHI HF-KP23 Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia small power servo motor
Model: HF-KP23
Servo motor series: low inertia, low power.
Rated output: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia is widely used in general machinery.
IP level: IP65.
Application example:
1, belt drive.
2, industrial robots.
3, assembly machinery.
4, industrial sewing machine.
5, X-Y working table.
6, food processing machinery.
7, semiconductor manufacturing equipment.
8, knitting machine and embroidery machine.
Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).
The length of the line: 5M.
IP level: IP65.
Cable outlet direction: the same side of the motor shaft.
Bending life: standard.
Encoder with cable (motor side); for HF-KP/HF-MP series (motor shaft with side extraction). MITSUBISHI universal AC servo amplifier MELSERVO-JE series.
Rated output: 0.4kw.
Interface: General purpose MITSUBISHI HF-KP23.
Compatible motor: HG-KN43J-S100, HG-KN43BJ-S100.
MR-JE-A is equipped with a positioning function!
Be able to realize the positioning of the point set list and the way of the program
At the same time, it also has a simple cam, encoder to follow, mark detection and other equipment can achieve high performance of the advanced functional group.
Without positioning module, the controller can build a positioning system, which can simplify the system MITSUBISHI HF-KP23.
Command interface using DI/O and RS-422/RS-485 serial communication (maximum 32 axis),
Can simply set the positioning data through the Configurator2 MR. Type: HA-SE series.
Rated output: 1.0KW.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Control complex, easy to achieve intelligent,
The electronic commutation method is flexible and can be changed by square wave or sine wave MITSUBISHI HF-KP23.
Motor maintenance free, high efficiency, low operating temperature,
Electromagnetic radiation is very small, long life, can be used in a variety of environments.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
Synchronous machines are commonly used in motion control,
Its power range, you can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation.
The rotor of the servo motor is permanent magnet,
Driive controlled U/V/W three phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field,
At the same time the motor comes with the encoder feedback signal to the drive,
According to the feedback value and thhe target value, the driver is compared,
Adjust the rotor rotation angle HF-KP23 HF-KP23.
The accuracy of the servo motor is determined by the accuracy of the encoder.
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
