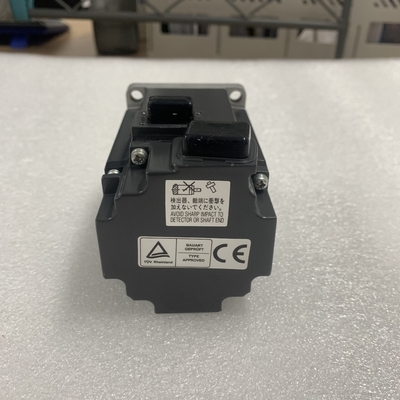

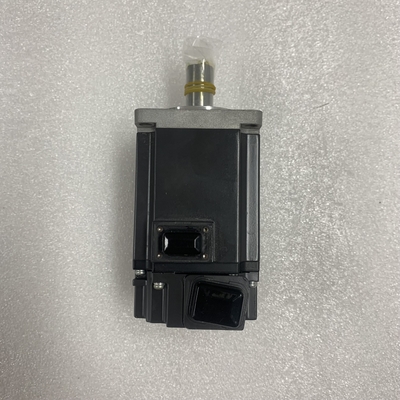

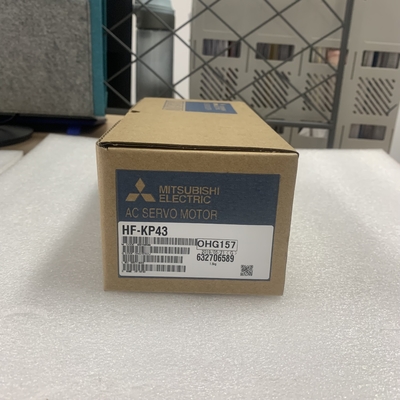

Mitsubishi HF-KP43 AC Servo Motor 3 PHASE 400W 102V 3000RPM 150HZ NEW

MITSUBISHI HF-KP43 Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia small power servo motor
Model: HF-KP43
Servo motor series: low inertia, low power.
Rated output: 0.4kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia is widely used in general machinery.
IP level: IP65.


Application example:
1, belt drive.
2, industrial robots.
3, assembly machinery.
4, industrial sewing machine.
5, X-Y working table.
6, food processing machinery.
7, semiconductor manufacturing equipment.
8, knitting machine and embroidery machine.


Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 5.0kw.
Interface type: general pulse interface type.
Power specification: three phase AC200V.
Pulse train and analog input as universal interface.
Can choose the position, speed and torque control mode.


The use of advanced tuning features such as advanced vibration suppression control and adaptive filter,
Greatly improve the performance of the machine MITSUBISHI HF-KP43
MR-J3, your partner.
Higher performance, more features, more convenient to use.
Highest performance in the industry.
Speed response frequency up to 2.1kHz. MITSUBISHI universal AC servo amplifier MELSERVO-JE series.
Rated output: 0.2kw.
Interface: General purpose MITSUBISHI HF-KP43.
Compatible motor: HG-KN23J-S100, HG-KN23BJ-S100.
MR-JE-A is equipped with a positioning function!


Be able to realize the positioning of the point set list and the way of the program.
At the same time, it also has a simple cam, encoder to follow, mark detection and other equipment can achieve high performance of the advanced functional group.
Without positioning module, the controller can build a positioning system, which can simplify the system MITSUBISHI HF-KP43.
Command interface using DI/O and RS-422/RS-485 serial communication (maximum 32 axis),
Can simply set the positioning data through the Configurator2 MR. Cable length: 2m.


For MR-J2S-700A (4) /CP/CL or less.
Encoder for HC-KFS; HC-MFS; 3000r/min HC-UFS servo motor.
-H products have a long flex life. MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.4kw.
SSCNET interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Complete synchronization system with SSCNET high speed serial communication,
The communication cycle between the controller and the servo amplifier is the longest 0.888ms.


Such systems will be able to provide high reliability and high performance.

When connecting the servo system with SSCNET,
In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.
Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.


This simple connection method reduces the routing time and helps to prevent noise HF-KP43.
Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.
It is only necessary to add a battery on the serrvo amplifier, which can form the absolute value system HF-KP43.
Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use.
