Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model: | MDS-DH-CV-370 |
|---|---|---|---|
| Type: | POWER SUPPLY UNIT | Voltage: | 380-440 V |
| Warranty: | 1 Year | Power: | 30 KW |
| Current: | 70 A | Frequency: | 50/60 HZ |
| High Light: | Redundant Power Supply Module 30kw,3 Phase Redundant Power Supply Module,Mds-Dh-Cv-370 Redundant Power Supply Module |
||

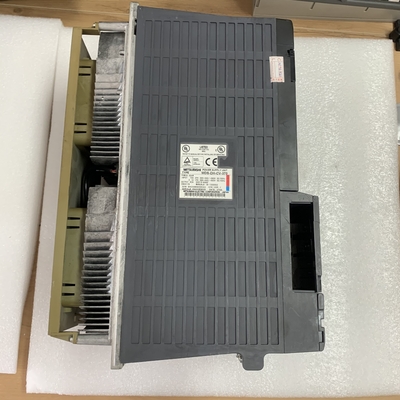

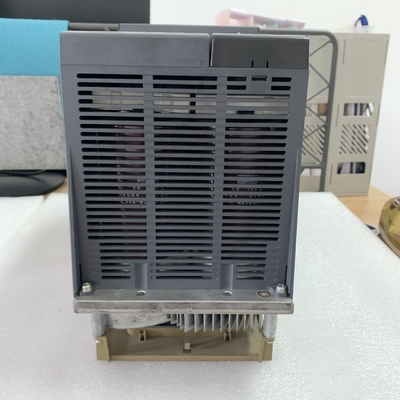

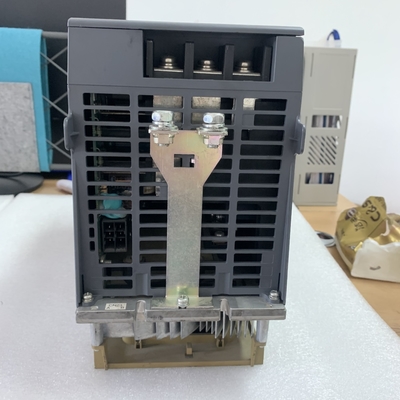

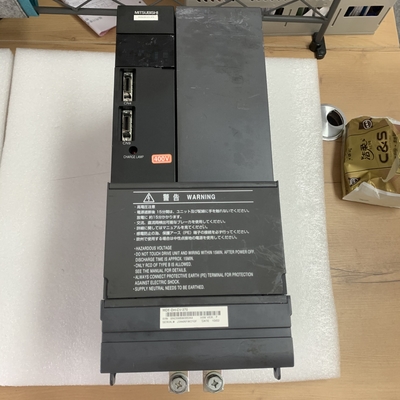

Mitsubishi MDS-DH-CV-370 POWER SUPPLY 30KW 70A 3 PHASE 50/60HZ CNC NEW
Specifications Of MDS-DH-CV-370
| Description | MDS-DH-CV-370 is a Drives-AC Spindle produced by Mitsubishi |
| Unit Type | MDS-DH-CV AC Converter/Power Supply for MDS-DH Systems |
| Power Supply Capacity | 37.0kW |
MITSUBISHI MDS-DH-CV-370 (MDS-DH-CV-370) This is a Power supply units that supplies the DC currents to the MITSUBISHI MDS Servo drives and MITSUBISHI Spindle drives cnc-shopping for your CNC Machine-Tools. This MITSUBISHI MDS-DH-CV-370 is mounted and must be placed next to the MDS Spindle drive unit as shown on the connecting drawing from the MDS manual in order of drive capacity size.

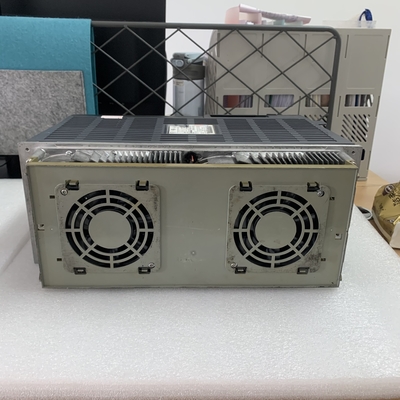

The MDS-DH-CV-370 Power supply unit operates a cooling fan on the rear side of the unit.
Buy online the MITSUBISHI Electric MDS-DH-CV-370 400V series, it comes with a warranty to get your machine running up as soon as possible.
Always make sure than neither of the link bars are short circuited and connected.
Connect the largest-capacity spindle drive unit to the final axis of the NC communication bus in order to control the power supply unit. The spindle drive unit must be installed adjacent to the power supply unit. In the system with servo only, a servo drive unit for controlling unbalance axis must be installed in the same manner in the same way..
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
