Product Details:
Payment & Shipping Terms:
|
| Model: | SGDB-44ADG | Type: | AC SERVO AMPLIFIER |
|---|---|---|---|
| Brand: | Yaskawa | Voltage: | 200-230 V |
| Power: | 4.4 KW | Warranty: | 1 Year |
| Frequency: | 50/60 HZ | Current: | 24/32.8 A |

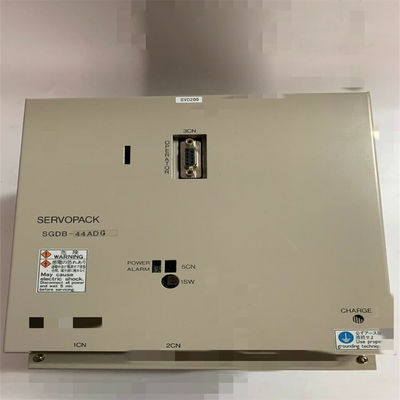

Yaskawa SGDB-44ADG AC SERVO AMPLIFIER 4.4KW 24/32.8A 3 PHASE NEW
Specifications Of SGDB-44ADG
| Description | SGDB-44ADG is a Drives-AC Servo produced by Yaskawa |
| Drive Type | SGDB AC Servo Drive |
| Rated Output | 4.4kW |
| Supply Voltage | 200V |
| Model | Torque, Speed, Position Control |
| Applicable motor series | SGMG (1500 RPM) |
| Option Specifications | None |
| Modification | None |
Security module.
Maximum applicable motor capacity: 0.05kw.
Power supply voltage: three phase AC200V.
Interface: MECHATROLINK- III communication command type (rotary servo motor).
Design sequence: B.
Hardware specification: base mounting type (standard).
Matching (software): no matching (standard) SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Matching (parameters): no matching (standard) SGD7S-2R8A20A
Optional module: security module.
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first) SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Can easily achieve the best security design of mechanical systems.
Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.
In addition, the monitoring time and other items can be changed through the parameter SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized. SGMCS small c
capacity type of direct drive servo motor.
Rated torque: M / 17N.
Servo motor outside diameter size: 290mm.
Serial encoder: 20 bit absolute value type (absolute value of 1 circles) (standard).
Design sequence: the size of the outer diameter of the service motor is marked as E model.
Flange specifications: face C, reverse load side (lead).
Optional specifications: no matching.
Under the condition of no speed reducer, the load is directly driven.
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 6 ~ 600N / m, maximum speed: 250 ~ 500r/min).
By using 20 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.
Use example:
Semiconductor manufacturing equipment.
Liquid crystal circuit board manufacturing equipment.
Various inspection and test equipment.
Electronic part packaging machine.
IC information processor.
IC inspection equipment.
A variety of automated machinery.
Robot.
Small capacity ratings and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: A.
Insulation withhstand voltage: AC1500V 1 minutes SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Protection mode: fully enclosed self cooling type IP42 (except for the rotating part of the output shaft).
The use of environmental humidity: 20 ~ 80%% (not dew) SGD7S-2R8A20A datasheet PDF catalog SGD7S-2R8A20A PDF datasheet.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
