Product Details:
Payment & Shipping Terms:
|
| Model: | SGM-02V312 | Type: | AC Servo Motor |
|---|---|---|---|
| Brand: | Yaskawa | Series: | SGM |
| Current: | 2 A | Voltage: | 200 V |
| Rotated Speed: | 3000 Rpm | Power: | 200 W |

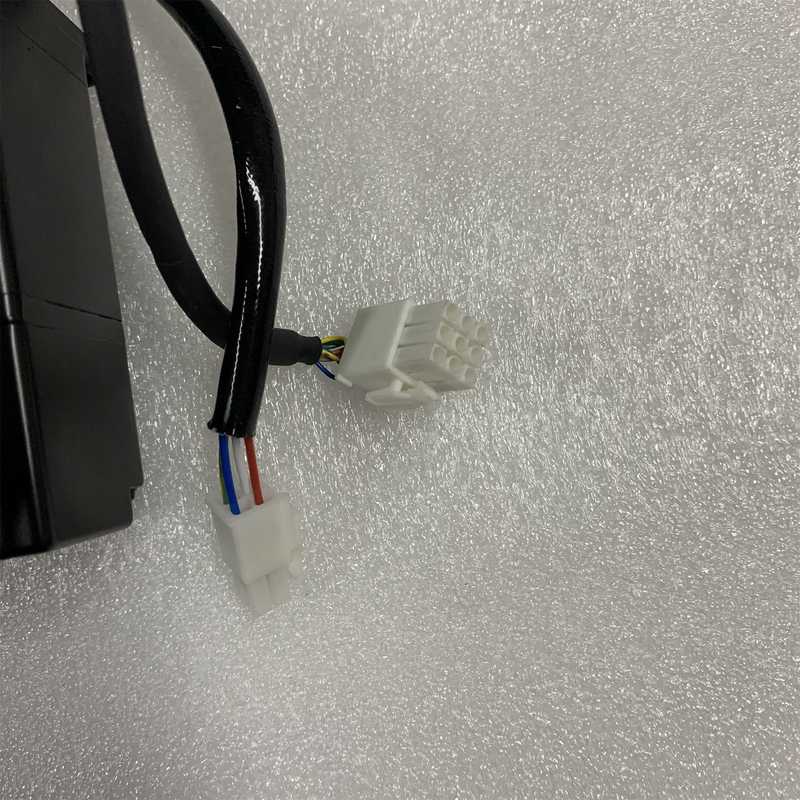

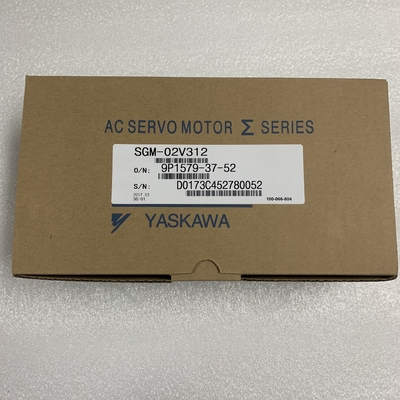

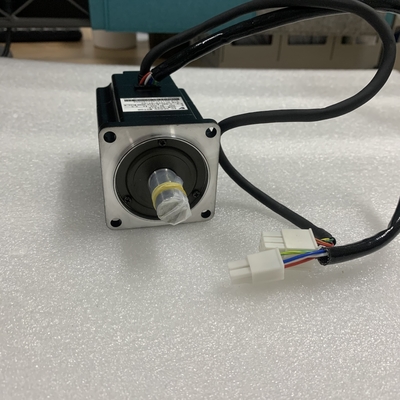

Yaskawa SGM-02V312 AC SERVO MOTOR 200W 200V 2A 3000RPM NEW
Specifications Of SGM-02V312
| Description | SGM-02V312 is a Motors-AC Servo produced by Yaskawa |
| Servomotor Type | SGM |
| Rated Output | 200W (0.25HP) |
| Power Supply | 200V CE European Specification |
| Encoder Specifications | 2048 P/R Incremental Encoder |
| Revision Level | Standard or CE Specification |
| Shaft Specifications | Staight without keyway |
| Options | None |
Sigma -V series servo motor SGMGV.
Rated output: 1.8kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: Standard (bolt for silver).
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal, with the brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed) SGDV-R90A01B Design and Maintenance Manual SGDV-R90A01B USER'S MANUAL SGDV-R90A01B
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C SGDV-R90A01B Design and Maintenance Manual SGDV-R90A01B USER'S MANUAL.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationHigh performance, use the best type of servo unit (purpose type) SGDV-R90A01B Design and Maintenance Manual SGDV-R90A01B USER'S MANUAL.
Maximum applicable motor capacity: 3.0kw.
Power supply voltage: three phase AC400V.
Interface: MECHATROLINK-II communication command type (linear servo motor).
Design sequence: A.
Hardware specifications: paint.
Function: pressure feedback control function.
Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models.
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.
FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device.
FT005 (support for rotary table purposes): with the rotation of the coordinate function and fixed point througgh the output function, can be smooth and high-precision control of rotary table SGDV-R90A01B Design and Maintenance Manual SGDV-R90A01B USER'S MANUAL.
FT006 (fixed point through the output function): no need to pass through the upper device can bee set through the output (Chu Fa) SGDV-R90A01B Design and Maintenance Manual SGDV-R90A01B USER'S MANUAL.
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller.
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
