Product Details:
Payment & Shipping Terms:
|
Model: | SGMAV-04ADA61 | Type: | AC Servo Motor |
---|---|---|---|
Brand: | Yaskawa | Warranty: | 1 Year |
Current: | 2.6 A | Voltage: | 200 V |
Rotated Speed: | 3000 Rpm | Power: | 400 W |

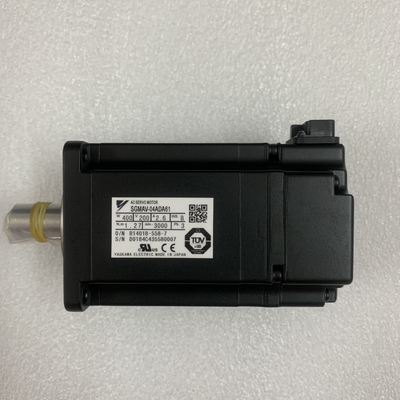

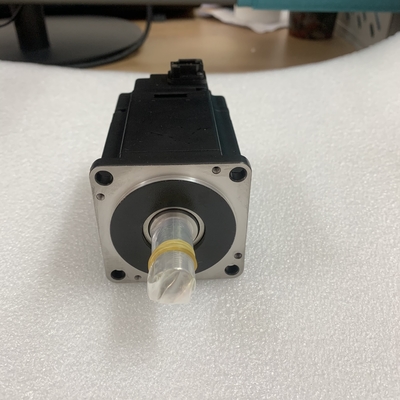

Yaskawa SGMAV-04ADA61 AC SERVO MOTOR 3 PHASE 400W 200V 2.6A NEW
Specifications Of SGMAV-04ADA61
Description | SGMAV-04ADA61 is a Motors-AC Servo produced by Yaskawa |
Servomotor Type | SGMAV Sigma V Low-inertia and high dynamics |
Brand | Yaskawa |
Warranty | 1 Year |
Condition | New |
Origin Of Country | Japan |
Current | 2.6A |
Rated Output | 400W |
Power Supply Voltage | 200VAC |
Serial Encoder | 20-bit Incremental |
Design Revision Order | Standard |
Shaft End | Straight with key and tap |
Options | Without options |
Control | Standard |
Yaskawa SGMAV-06ADA61 Product information and technical parameters:
Brand: Yaskawa
Name: Ultra low inertia servo motor
Model: SGMAV-06ADA61
Sigma -V series servo motor SGMAV.
Rated output: 0.6kw (600W).
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.
Super power rate.
Small capacity.
Ultra low inertia
Instantaneous maximum torque (rating 300%).
Equipped with a high resolution serial encoder (20 bit).
Max speed up to 6000r/min.
Variety is complete (50W ~ 1.0kw, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
SGM7P type (rated speed: 3000r/min) of inertia and flat servo motor with speed reducer.
Rated output: 0.75kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit delta.
Design sequence: IP55.
Type of speed reducer: precision HDS planetary reducer.
Reduction ratio: 1/5.
Shaft end: straight shaft, no keyway Yaskawa SGMAV-06ADA61.
Optional parts: no purchase pieces.
YASKAWA Electric is a professional manufacturer in the field of motion control,
Is Japan''s first to do the servo motor company,
The product is known for its steady and rapid price, and its price is high,
Is the world''s largest sales, the use of the industry''s largest servo brand SGMAV-06ADA61
In China, Yaskawa servo for many years occupied the largest market share Yaskawa SGMAV-06ADA61.
With the industry''s highest amplifier response, greatly reduced the set time.
YASKAWA Electric is the world''s leading manufacturer of power transmission products.
With the continuous deepening of China''s reform and opening up and economic development,
Many world-class companies have settled in Shanghai, and quickly expand its businessSigma -V series servo motor SGMGV.
Rated output: 5.5kw Yaskawa SGMAV-06ADA61.
Power supply voltage: AC400V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: with oil seal.
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
HHeat resistance grade: F SGMAV-06ADA61.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) SGMAV-06ADA61.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
