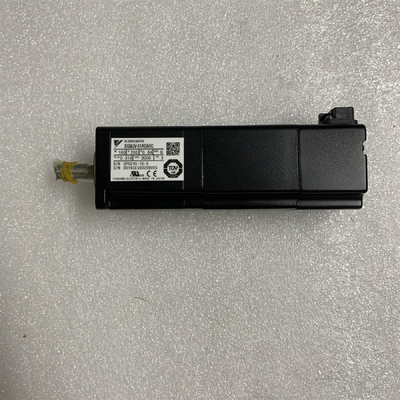

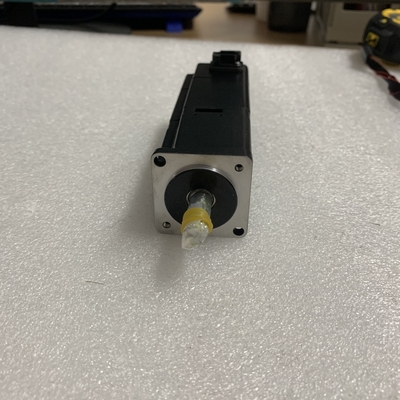

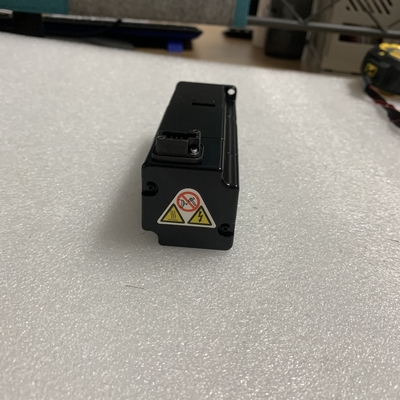

Yaskawa SGMJV-01ADA6C AC SERVO MOTOR 0.84A 100W 3000RPM 200V NEW

Yaskawa SGMJV-06ADA61 Product information and technical parameters:
Brand: Yaskawa
Name: Middle inertia rotary servo motor
Model: SGMJV-06ADA61


Sigma -V series servo motor SGMJV.
Rated output: 0.6kw (600W).
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.
Medium inertia.


Instantaneous maximum torque (rating 350%).
Equipped with a high resolution serial encoder (13/20 bit).
Max speed up to 6000r/min.
Variety is complete (50 ~ 750W, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,


Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.


Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

Security module.
Maximum applicable motor capacity: 0.1kw.
Power supply voltage: single phase AC100V.
Interface: analog voltage, pulse sequence type (rotary servo motor).


Design sequence: A.
Hardware specification: base mounting type (standard).
Matching (software): no matching (standard).
Matching (parameters): no matching (standard) Yaskawa SGMJV-06ADA61.
Optional module: security module SGMJV-06ADA61
European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.


Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first) Yaskawa SGMJV-06ADA61.
Can easily achieve the best security design of mechanical systems.
Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)


Equipped with 2 security functions, can be set (distribution) security functions.
In addition, the monitoring time and other items can be changed through the parameter Yaskawa SGMJV-06ADA61.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized. Servo motor SGMGH type.
Rated speed: 1000r/min.
Power: 1.2kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.


Design sequence: high precision machine tool.
Shaft end: straight shaft with screw key.
Optional parts: with oil seal, DC90V brake.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGMJV-06ADA61.
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number tthan the original product reduced by 1/2 SGMJV-06ADA61.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed control
