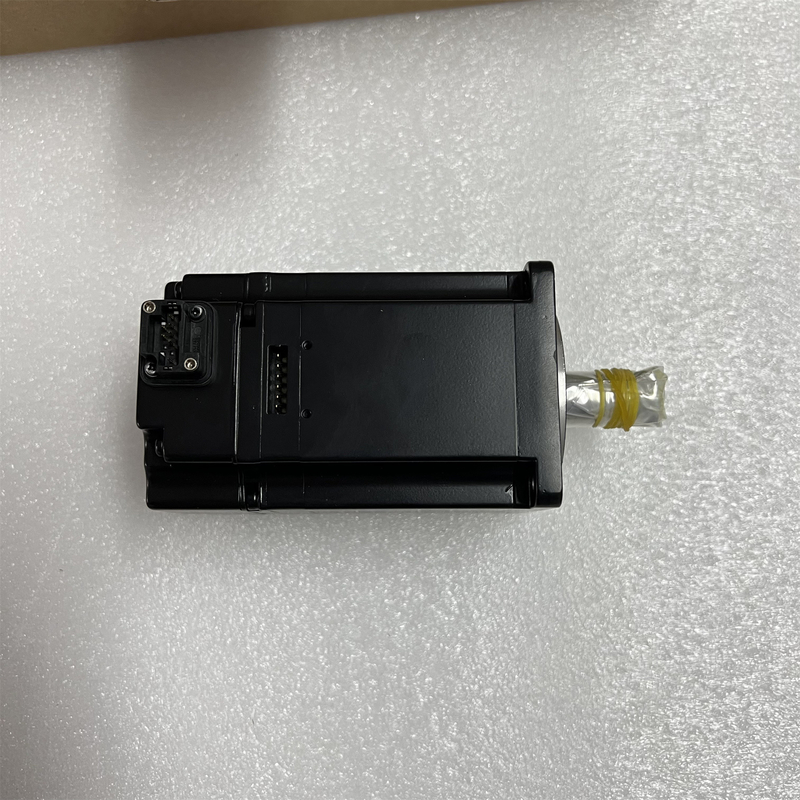

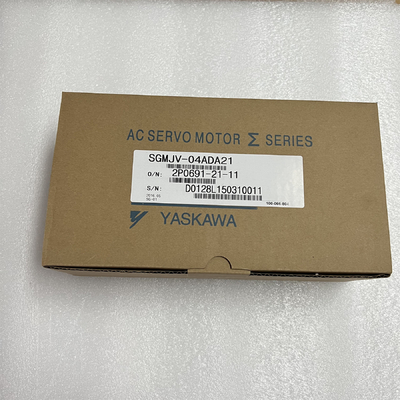

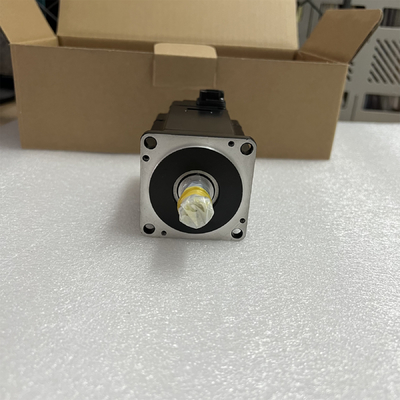

Yaskawa SGMJV-04ADA21 AC SERVO MOTOR 2.7A 400W 3000RPM 200V NEW

Yaskawa SGMJV-04ADA21 Product information and technical parameters:
Brand: Yaskawa
Name: Middle inertia rotary servo motor
Model: SGMJV-04ADA21


Sigma -V series servo motor SGMJV.
Rated output: 0.4KW (400W).
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: no matching.


Medium inertia.
Instantaneous maximum torque (rating 350%).
Equipped with a high resolution serial encoder (13/20 bit).
Max speed up to 6000r/min.
Variety is complete (50 ~ 750W, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.


Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: B.


Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation.

Capacity type of direct drive servo motor SGMCS.
Rated torque: M / 110N.
Servo motor outside diameter size: 280mm.


Serial encoder: 20 bit absolute value type (absolute value of 1 circles) (standard).
Design sequence: the outer diameter size of the servo motor is marked as N and M.
Flange specification: face C, load side Yaskawa SGMJV-04ADA21.
Optional specifications: no matching.
Under the condition of no speed reducer, the load is directly driven SGMJV-04ADA21
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 6 ~ 600N / m, maximum speed: 250 ~ 500r/min).
By using 20 bit high resolution encoder, the high precision can be carried out.


The use of hollow structure, convenient wiring and piping Yaskawa SGMJV-04ADA21.
Use example:
Semiconductor manufacturing equipment.
Liquid crystal circuit board manufacturing equipment.
Various inspection and test equipment.
Electronic part packaging machine.
IC information processor.
IC inspection equipment.


A variety of automated machinery.
Robot.
Capacity rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above Yaskawa SGMJV-04ADA21.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.


Heat resistance grade: A.
Insulation withstand voltage: AC1500V 1 minutes.

Protection mode: fully enclosed self cooling type IP42 (except for the rotating part of the output shaft).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSecurity module.
Maximum applicable motor capacity: 15kw.
Power supply voltage: three phase AC400V.


Interface: analog voltage, pulse sequence type (rotary servo motor).
Design sequence: A.
Hardware specification: rack mounting type.
Matching (software): no matching (standard).
Matching (parameters): no matching (standard).
Optional module: security module.


European EC standards: Based on the integration of mechanical instructions standard ISO13849-1 EN,
Security module with individual standard 61800-5-2 IEC specified security function.
Through the combination of the SGDV servo unit, the best safety design of the mechanical system is realized.
Suitable for AC servo drive, with the following safety features specified in the international standard IEC61800-5-2 (Japan''s first).
Can easily achieve the best security design of mechannical systems SGMJV-04ADA21.


Torque Off Safe (STO)
Stop Safe 1 (SS1)
Stop Safe 2 (SS2)
Limited Speed Safely (SLS)
Equipped with 2 security functions, can be set (distribution) security functions.
In addition, the monitoring time and other itemms can be changed through the parameter SGMJV-04ADA21.
With the use of the servo unit with a security module, so that the system can be simplified and miniaturized.
