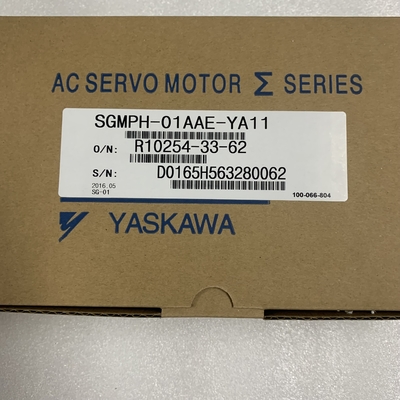

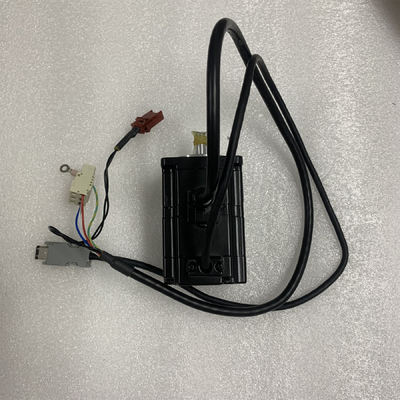

Yaskawa SGMPH-01AAE-YA11 AC SERVO MOTOR 0.89A 100W 3000RPM 200V NEW

Yaskawa SGMJV-08AAA61 Product information and technical parameters:
Brand: Yaskawa
Name: Middle inertia rotary servo motor
Model: SGMJV-08AAA61


Sigma -V series servo motor SGMJV.
Rated output: 0.75KW (750W).
Power supply voltage: AC200V.
Serial encoder: 13 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft with keyway, with screw (optional).
Optional: no matching.
Medium inertia.


Instantaneous maximum torque (rating 350%).
Equipped with a high resolution serial encoder (13/20 bit).
Max speed up to 6000r/min.
Variety is complete (50 ~ 750W, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.


Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.


Heat resistance grade: B.
Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation.

Direct drive type servo motor SGMCV type.


Rated torque: M / 10N.
Servo motor diameter: diameter of 175mm.
Serial encoder: 22 bit (multi ring absolute encoder).
Design sequence: A.
Flange: reverse load side.
Optional parts: do not buy pieces.


Under the condition of no speed reducer, the load is directly driven Yaskawa SGMJV-08AAA61.
Can be realized from low speed to high speed of the strong smooth running
(instantaneous maximum torque: 12 ~ 75N / m, maximum speed: 500 ~ 600r/min) SGMJV-08AAA61
By using 22 bit high resolution encoder, the high precision can be carried out.
The use of hollow structure, convenient wiring and piping.


Use example:
Semiconductor manufacturing apparatus.
Liquid crystal circuit board manufacturing device Yaskawa SGMJV-08AAA61.
Various inspection and test equipment.
Electronic component packaging machine.
C information processor.
C inspection equipment.


A variety of automated machinery.
ManipulatorHigh performance, use the best type of servo unit (purpose type).
Maximum applicable motor capacity: 0.2kw.
Power supply voltage: single phase AC100V.
Interface: MECHATROLINK-III communication command type (rotary servo motor) Yaskawa SGMJV-08AAA61.
Design sequence: B.
Hardware specification: base mounting type (standard).
Function: pressure feedback control function.


Use the best type of sigma -V-FT series
According to different uses, there are 5 equipped with a convenient function of the servo unit models.
FT001 (vibration suppression function to upgrade specifications): by strengthening the vibration suppression function, shorten the positioning time.


FT003 (pressure feedback function): high precision pressure control, to promote the high performance of the device.
FT005 (support for rotary table purposes): with the rootation of the coordinate function and fixed point through the output function, can be smooth and high-precision control of rotary table SGMJV-08AAA61.
FT006 (fixed point through the output function): no need to pass through the upper device can bee set through the output (Chu Fa) SGMJV-08AAA61.
FT008 (absolute value system support): the absolute value of the system can be constructed by any upper controller.
