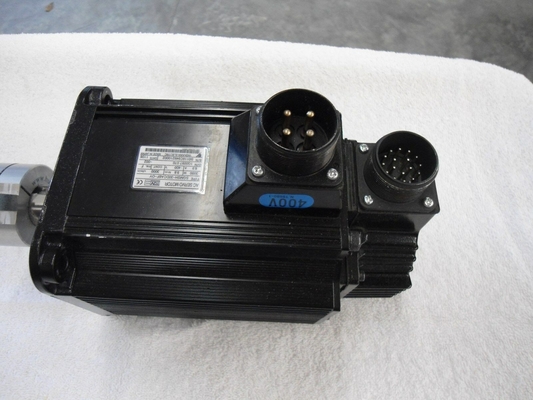

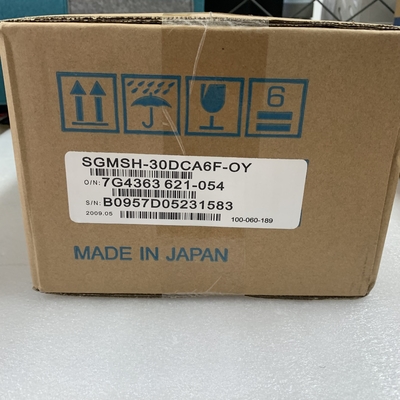

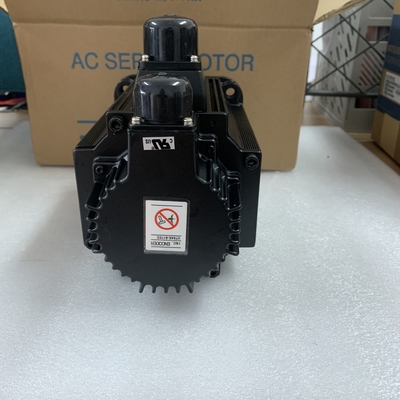

Yaskawa SGMSH-30DCA6F-OY AC SERVO MOTOR 8.9A 3KW 3000RPM 400V NEW

Yaskawa SGMGH-20ACA61 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMGH-20ACA61
Servo motor SGMGH type.
Rated speed: 1500r/min.
Power: 1.8kw.


Power supply voltage: three phase AC200V.
Serial encoder: 17 bit relative value.
Design sequence: A.
Shaft end: straight shaft with screw key.
Optional parts: no brake oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain.
Parameter setting device.


The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed control

Equipped with DeviceNet communication function type servo unit (external power supply drive type)
Maximum applicable motor capacity: 0.75kw.
Power supply voltage: three phase AC200V.
Interface: instruction selection and installation (rotary type servo motor).
Matching (hardware): base mounting type (standard) Yaskawa SGMGH-20ACA61.
Matching (software): standard.
Matching (parameter): standard.


Optional modules: DeviceNet module (external power driver) SGMGH-20ACA61
Communication specifications for DeviceNet based on open field network.
The combination of the DeviceNet controller and the V can be used to implement motion control in a simple way.
Can make use of the city''s rich DeviceNet support software.
Can use the upper controller to manage the servo information Yaskawa SGMGH-20ACA61.
Through the network from the host controller to monitor the running status of the servo drive, alarm information.


Using the upper controller to manage the servo information, which can improve the maintenance (shorten the debugging time, improve the efficiency of maintenance operations).
Save wiring, reduce the cost and improve the reliability.
Because the upper controller and the servo unit are connected through the communication network, the connection is greatly saved Yaskawa SGMGH-20ACA61.
Built in rich positioning function.
Can be from the upper controller (PLC or computer) to carry out a variety of simple positioning action.


Equipped with simple positioning, continuous rotation, and return to the origin of continuous rotary motion positioning, running and other rich positioning function.No speed reducer in inertia, high speed servo motor type SGM7J (rated speed 3000r/min).
Rated output: 600W.
Power supply voltage: AC200V.
Serial encoder: 24 bit delta.
Design sequence: C.
Shaft end: straight shaft with keyway, with screw.


Optional parts: with oil seal, with the brake (DC24V).

Cantilever state and moment of inertia.
After the change, can still maintain stable action.
Improvement of responsiveness.
Without adjustment, it can be achieved in the past about 2 times the response.
Improvement of stability.
The action is still stable for the presence of load fluctuations.
No gain adjustment.


Zero tuning time to ensure performance SGMGH-20ACA61.
Protection system from the impact of temperature anomalies.
Servo unit and servo motor equipped with temperature sensor.
Monitor the temperature of the product directly through the sensor, as soon as possibble to detect and prevent failure SGMGH-20ACA61.
In addition, the temperature state of the system can be monitored by the machine controller, which is safe and secure
