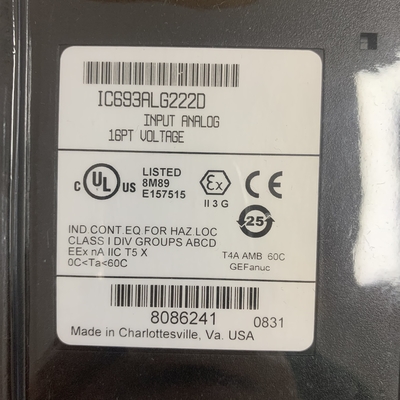

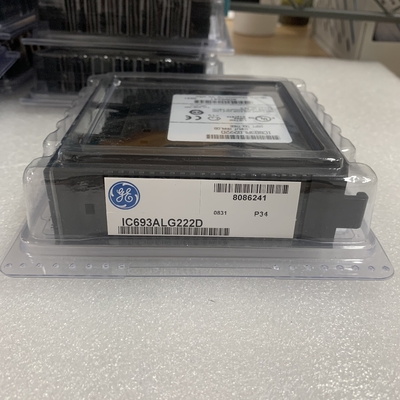

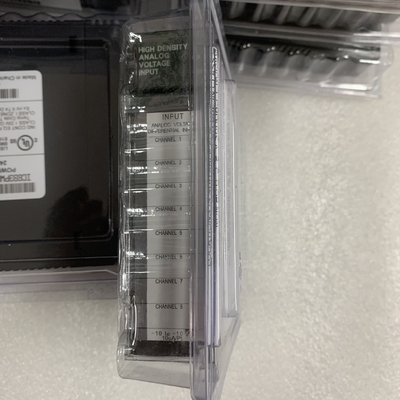

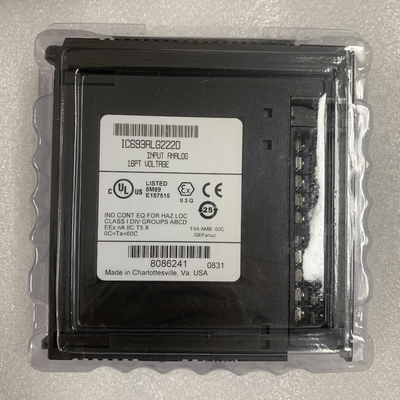

GE IC693ALG222 INPUT MODULE ANALOG 16 CHANNEL CONFIGURABLE NEW

The IC693ALG222 is a 16-Channel Analog Voltage Input module for the GE Fanuc 90-30 Series. This PLC will give you 16 single-ended or 8 differential input channels. The Analog Input features easy-to-use configuration software for 2 input ranges: from -10 to +10 and 0 to 10 volt. This module converts the analog signals into digital signals. The IC693ALG222 receives two input signals which are unipolar and bipolar. The unipolar signal ranges from 0 to +10 V whereas bipolar signal ranges from -10V to +10V.This module can be set up in any of the I/O slots in a 90-30 Programmable control system. There will be connector block mounted on module for connecting to user devices.

The number of channels in the IC693ALG222 may be single ended (1 to 16 channel) or differential (1 to 8 channel). The power requirement for this module is 112mA from 5V bus, and also it requires 41V from 24V DC supply to power the converters. The two LED indicators indicate the status of user power supply the module’ status. These two LEDs are MODULE OK, which gives the status regarding power-up, and POWER SUPPLY OK, which checks whether the supply is above the minimum required level. The IC693ALG222 module is configured either using logic master programming software or via Handheld programming. If the user chooses to program the module via Handheld programming, he can only edit active channels, not active scanned channels. This module uses the %AI data table to record analog signals for the use of the programmable logic controller.

Technical Specifications of IC693ALG222

No. of channels:1 to 16 single-ended or 1 to 8 differentialInput Voltage Range:0 to +10V or -10 to +10VCalibration:Factory calibrated to: 2.5mV per count or 5 mV per countUpdate Rate:6 msec (all 16) or 3 msec (all 8)Input Filter Response:41 hz or 82 HzPower Consumption:112 mA from +5VDC bus or 41mA from +24 VDC bus

The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
