Product Details:
Payment & Shipping Terms:
|
| Model: | IC693MDR390 | Type: | I/O Module |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Brand: | GE | Voltage: | 24VDC |

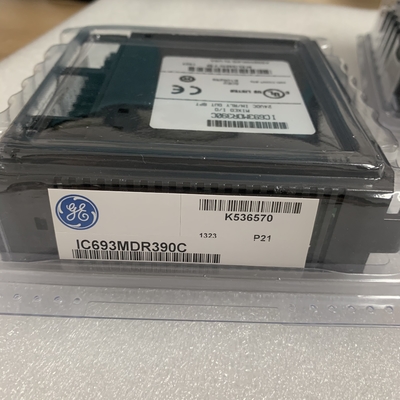

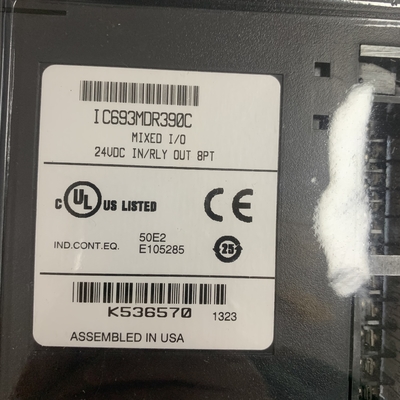

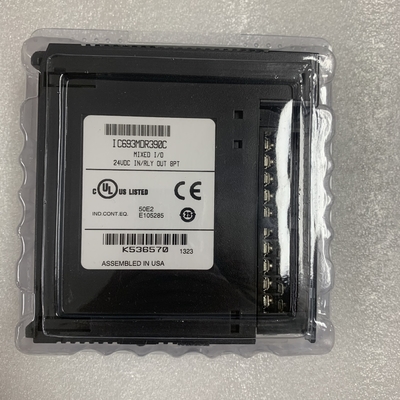

GE IC693MDR390 I/O MODULE 8 POINT INPUT 8 POINT OUTPUT 24 VDC NEW
Specifications of IC693MDR390
| Description | IC693MDR390 is a I/O Module produced by GE |
| Type | I/O Module |
| Voltage | 24VDC |
| Brand | GE |
| Origin Of Country | USA |
| Condition | New |
| Warranty | 1 Year |
The IC693MDR390, manufactured by GE Fanuc, is a 24 volts DC Input/Output Relay module. This module provides 8 inputs and 1 common power input terminal and 8 normally-open relay circuits in the same module. The input circuits are compatible with either negative or positive characteristics in which they source or sink between input devices and the common user. These input circuits are arranged into one group for every 8 inputs. The circuits for relay output are arranged as two groups having four circuits for both. There is a common terminal for power output per group. Input characteristics are compatible with a huge range of devices. Proximity switches, push buttons, and limit switches are some of the devices compatible with the IC693MDR390 that may be useful for the user’s system. Field devices operate on user-supplied power.
The user provided output loads are controlled by relay circuits that are normally-open. Every output has two amps of switching capacity output. Relay outputs can control a wide variety of load devices supplied by the user, such as indicators, motors, and solenoids. The backplane has a +24 volts DC bus which provides the power for the relay circuits, which are internal. The field devices operate on AC source or DC source for power which must be supplied by the user. This module has no fuses. The module has indicators to provide the status of the device, indicating whether the device is ON or OFF. These indicators are LEDs which are ordered in rows and are green. There are labels for input points and output points and color-coding schemes on insert panels to avoid handling errors. This module is installable on every Input/output slot with either 5-slots baseplate or 10-slots baseplate.
| Rated Voltage: | Inputs: 24 volts DC. Outputs: 24VDC or 120/240 VAC |
| # of Outputs: | 16 (8 Inputs and 8 Outputs) |
| Freq: | 50/60 Hz with AC |
| Output Current: | 2 Amps per circuit, 4 amps per common |
| Input Current: | 7.5 mA at rated voltage |
| Output Voltage Range: | 5 to 30 volts DC, 5 to 250 volts AC |
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
