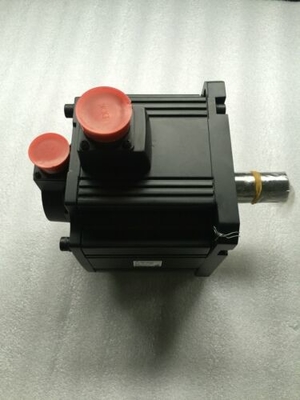

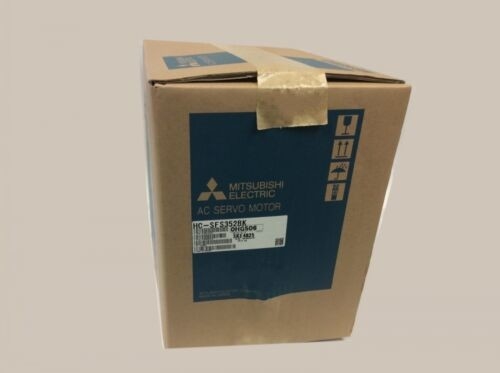

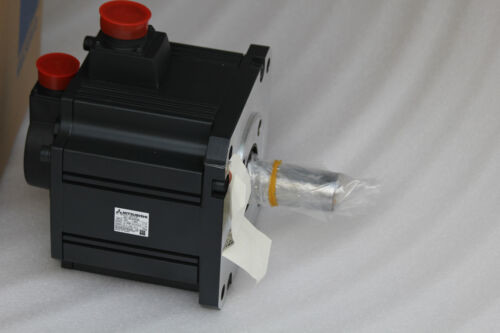

Mitsubishi HC-SFS352 AC Servo Motor 3.5KW 2000RPM 17A 146V NEW

MITSUBISHI HC-SFS352 Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS352
Motor series: medium inertia, medium power.
Rated output power: 3.5kw.
Rated speed: 2000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).

Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

Servo motor series: low inertia, medium and large capacity.
Rated output: 15.0kw.
Rated speed; 1500r/min.
Electromagnetic brake: incidental.
Power supply: 200V.

Most suitable for medium and large capacity, low inertia type products in high frequency operation or acceleration and deceleration operation HC-SFS352.
Improve the environmental performance of HG-SR, HG-JR series of products using IP67.
High speed & high torque HC-SFS352 Shorten the positioning time, achieve high-speed equipment.
100 scene, there are 100 different drive control.
In order to meet the needs of the diverse and detailed field,
MR-J4 product line configuration, providing a wealth of servo amplifier and servo motor products.
Can meet the different needs of different customers HC-SFS352. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 0.6kw.
Interface type: SSCNET type III fiber communication.
Special features: integrated driver security.
Power specification: single phase AC200V.

STO function as a security feature is added to the SSCNET III fiber communication type servo amplifier.
By using the STO function, the electromagnetic contactor used in the past to prevent the motor from accidentally starting is no longer needed HC-SFS352.
SS1 functions can be realized by using the MR-J3-D05 security logic unit.
MR-J3-BS uses a full closed loop control system.
Compatibility with MR-J3-B.
MR-J3-BS installation, wiring and connectors are the same as the MR-J3-B, so do not change the existing connection will be easy to MR-J3-B
Change to MR-J3-BS.
Security functions are connected to the CN8 interface through an external security circuit to increase the MR-J3-BS driver security.
Compatible full closed loop control system.

MR-J3-BS has a full closed loop control system version. "MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 5.0kw.
SSCNET interface.
Voltage: 3 phase AC400V.
Complete synchronization system with SSCNET high speed serial communication,
The communication cycle between the controller and the servo amplifier is the longest 0.888ms.
Such systems will be able to provide high reliability and high performance.

When connecting the servo system with SSCNET,
In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.
Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.
This simple connnection method reduces the routing time and helps to prevent noise HC-SFS352.
Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.
It is only necessary to add a battery on the servvo amplifier, which can form the absolute value system HC-SFS352.
Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use. "
