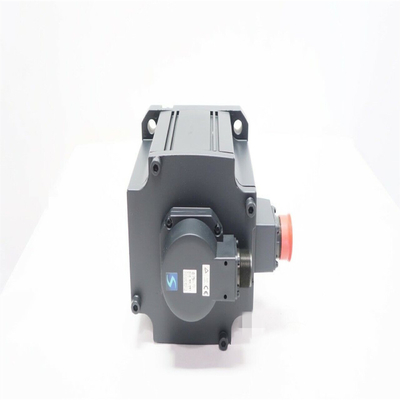

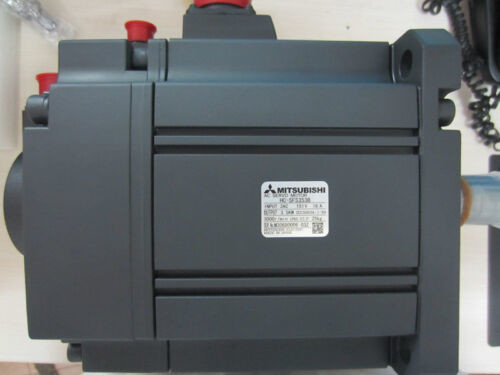

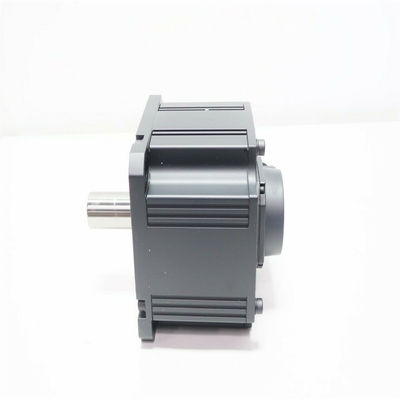

Mitsubishi HC-SFS353 AC Servo Motor 3 PHASE 3.5KW 3000RPM MAX NEW

Name: Mitsubishi HC-SFS353 AC Servo Motor 3 PHASE 3.5KW 3000RPM MAX NEW
Brand: Mitsubishi
SKU: HC-SFS353
Price: 1 USD
Availability: InStock
Rating: 4.6 (152 reviews)

Large Image : Mitsubishi HC-SFS353 AC Servo Motor 3 PHASE 3.5KW 3000RPM MAX NEW Get Best Price

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	HC-SFS353

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	1-500USD
Packaging Details:	orginal box
Delivery Time:	2-3 days
Payment Terms:	T/T, Western Union
Supply Ability:	30 PCS/ PER Month

Contact Now

Detailed Product Description

Model:	HC-SFS353	Brand:	Mitsubishi
Type:	AC Servo Motor	Rotated Speed:	3000 RPM
Power:	3.5 KW	Warranty:	1 Year

Mitsubishi HC-SFS353 AC Servo Motor 3 PHASE 3.5KW 3000RPM MAX NEW

Specifications Of HC-SFS353

Description	*HC-SFS353* is a Motors-AC Servo produced by Mitsubishi
Servomotor Type	HC-SFS Series; Medium inertia,medium capacity,high resolution
Rated Output	3.5kW
Rated speed	3000 rpm
Voltage	200V
Electromagnetic brake	none
Reduction Gear	Without
Shaft type	Standard (straight shaft)

Descriptions Of HC-SFS353

MITSUBISHI HC-SFS353 Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS353
Motor series: medium inertia, medium power.
Rated output power: 3.5kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).

Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

Motor series: low inertia, medium power.
Rated output power: 11.0kw.
Rated speed: 2000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Voltage: 400V type.
Protection level: IP65 (IP67).

Features: low inertia from low speed to high speed, three modes can be selected, suitable for different application range MITSUBISHI HC-SFS353. As a standard port, 30KW or greater power is suitable for flange (type) installation and support foot mounting HC-SFS353
Application example: injection molding machine, semiconductor manufacturing equipment, large conveyor machinery.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring MITSUBISHI HC-SFS353. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 1.0kw.
Interface type: SSCNET type III fiber communication.
Full closed loop control.
Power specification: three phase AC200V.

High precision and high response location control.
Full closed loop control can be realized by double feedback control method MITSUBISHI HC-SFS353.
Dual feedback control can be performed between the servo motor encoder and the load side encoder.
MR-J3-B-RJ006 can be used in conjunction with a number of manufacturers of linear encoder,
Users can build the system according to their own accuracy requirements. ABS type linear encoder using serial interface,
No need to install the battery on the servo amplifier can easily build the absolute position detection system.
Flexible system configuration.
Can achieve higher load side positioning accuracy!MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 1.0kw.

Interface type: SSCNET type III fiber communication.
Special specification: suitable for linear servo motor.
Power specification: three phase AC200V.
More advanced real-time automatic tuning by setting response values,
Including the position gain and the gain of speed, all the gain can be adjusted automatically.
32 segment response level can be set.
AAdvanced vibration suppression control HC-SFS353.
An optimal vibration control filter value is automatically set by the automatic tuning function to effectively suppress the vibration of the 100Hz frequency that occurs when the driving part stops.
TThe automatic tuning function can effectively restrain the vibration of the end of the mechanical arm and reduce the residual vibration in the machine HC-SFS353.

The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
