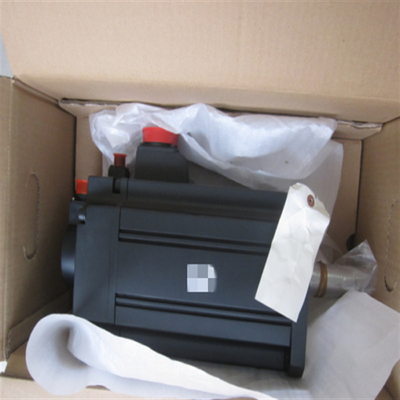

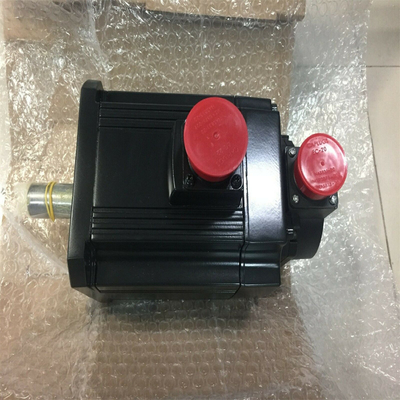

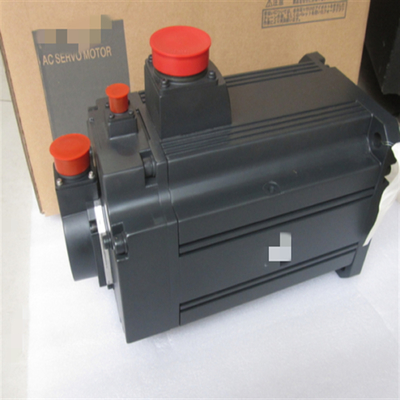

Mitsubishi HC-SFS702B AC Servo Motor 3 PHASE 7KW 144V 35A 2000RPM NEW

MITSUBISHI HC-SFS702B Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power motor
Model: HC-SFS702B
Motor series: medium inertia, medium power.
Rated output power: 7.0kw.
Rated speed: 2000r/min.
Whether to bring the brakes: with.
Shaft end: Standard (straight).
Protection level: IP65 (IP67).

Features: medium inertia from low speed to high speed three modes for selection, suitable for different applications.
Application examples: transmission machinery, robots, X-Y working platform.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed.
All motor dimensions are the same as before and all are compatible with the wiring.

Drive unit.
MITSUBISHI universal AC servo amplifier MELSERVO-J4 series.
Rated output: 37kw.
Interface: universal type.
Power supply: three phase AC200V.

Special specifications: full closed control 4 wire / support mechanical end encoder ABZ phase input / support positioning mode.
Support position control, speed control, torque control MITSUBISHI HC-SFS702B.
Position control to follow the position instructions HC-SFS702B
When the control is inserted, the position control is performed.
Speed control follows the speed command to control the speed within a certain range.
Torque control to follow the torque command to control the stable torque.
Function of switching amplitude. The increase in the process of switching and stopping,

And in the operation of the use of the switching signal, switching growth MITSUBISHI HC-SFS702B. Motor series: low inertia, medium and small capacity.
Using a serial absolute / incremental encoder.
Rated output power: 0.2kw.
Rated speed: 3000rpm.
With the brake: without.
Shaft end: straight shaft.
Comparison of single phase induction motor and servo motor.
The working principle of the AC servo motor is similar to that of the single phase induction motor,

But the rotor resistance of the former is much larger than that of the latter,
So the servo motor is compared with the single machine asynchronous motor,
There are three notable features:
1, large starting torque MITSUBISHI HC-SFS702B.
2, a wide range of operation.
3, no rotation phenomenon.
AC servo motor running smoothly, low noise.

But the control characteristic is non-linear, and because the rotor resistance is big, the loss is big, the efficiency is low,
Therefore, compared with the same capacity DC servo motor, the volume is large and the weight is heavy,
So it is only suitable for 0.5-100W small power control system. Servo motor series: medium inertia, small capacity.
Rated output: 1.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Oil seal: incidental (Note 1, note 2, note 3).
Power supply: 200V.

Note 1 through HG-KR and HG-MR series 0.1kW and HG-SR series can be supported.
Note 2 with the speed reducer case, do not configure the oil seal.
Note 3 with oil seal HG-KR, HG-MR series servo motor''s appearance size standard is different.
Stable driving of medium capacity and medium inertia type products.
Through the optimization of structural design, to achieve the minimum length of the indusstry HC-SFS702B.
High speed & high torque. Shorten the positioning time, achieve high-speed equipment.
Reducing the electric torque ripple.
Through the combination of the optimal number of the motor and the slot number, the torque ripple is greaatly reduced,
To further realize the smooth constant speed device HC-SFS702B.
Improve the environmental performance of HG-SR, HG-JR series of products using IP67.
