Product Details:
Payment & Shipping Terms:
|
| Brand: | Mitsubishi | Model: | HF-MP23 |
|---|---|---|---|
| Type: | AC Servo Motor | Voltage: | 113 V |
| Rotated Speed: | 3000 RPM | Power: | 200 W |
| Current: | 1.4 A | Warranty: | 1 Year |

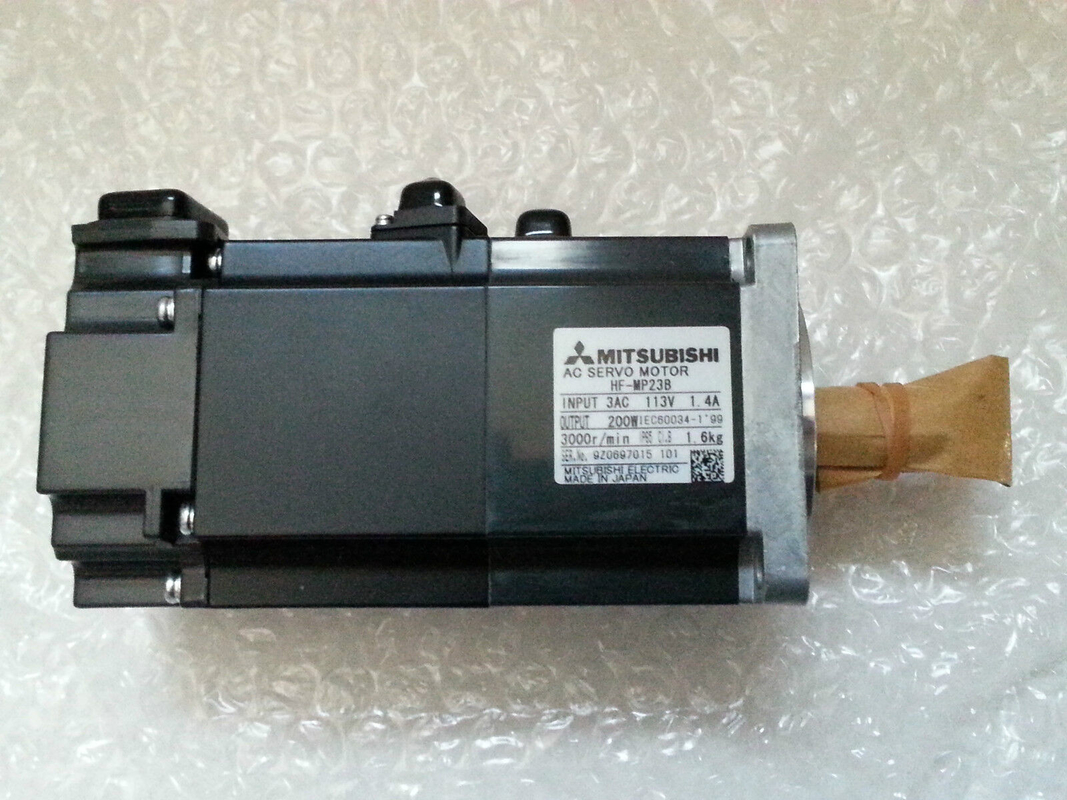

Mitsubishi HF-MP23 AC Servo Motor 3 PHASE 200W 113V 3000RPM NEW
Specifications Of HF-MP23
| Description | HF-MP23 is a Motors-AC Servo produced by Mitsubishi |
| Servomotor Type | HF-MP Series; Ultra-low inertia,small capacity |
| Rated Output | 200W |
| Rated Speed | 3000 rpm; 200V |
| Electromagnetic brake | none |
| Shaft end | Standard (Straight shaft) |
MITSUBISHI HF-MP23 Product information and technical parameters:
Brand: MITSUBISHI
Name: Ultra low inertia small power servo motor
Model: HF-MP23
Servo motor series: ultra low inertia, low power.
Rated output: 0.2kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: ultra low inertia is very suitable for high frequency operation.
IP level: IP65.
Application example:
1, insert machine.
2, assembly machinery.
Rotary servo motor.
Numerous motor series and wide motor power range can be used to meet different applications.
The protection level of the HF-KP/HF-MP/HC-LP/HC-RP/HC-UP servo motor to improve the environmental safety is IP65 (except the shaft part).
Servo motor series: low inertia, medium / high power.
Rated output: 15kw.
Rated speed: 1500r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery MITSUBISHI HF-MP23.
2, printing machine.
3, injection molding machine (11KW, 15KW)
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines MITSUBISHI HF-MP23.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reduced by using the power source connector.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning and acceleration / deceleration operations, especially for injection molding machines and large presses MITSUBISHI HF-MP23.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min. Type: general purpose AC servo amplifier MR-E series.
Rated output: 0.2kw.
Interface type: analog input interface.
KH003 special mark for Super MR-E.
Servo amplifier terminals are used to reduce the required wiring time.
The connector is located in front of the servo amplifier, which is convenient for cable connection.
The gain adjustment can be easily carried out by the real-time automatic tuning function.
Wide use.
Machining equipment and machine tool feed.
Used for food, packaging equipment and feeding device.
For textile machinery, etc..
Can improve the performance of equipment. Motor series: low inertia, medium and small capacity.
Using a serial absolute / incremental encoder.
Rated output power: 0.75kw.
Rated speed: 2000rpm.
With the brake: without.
Shaft end: straight shaft.
Comparison of single phase induction motor and servo motor.
The working principle of the AC servo motor is similar to that of the single phase induction motor,
But the rotor resistance of the former is much larger than that of the latter,
So the servo motor is compared with the single machine asynchronous motor,
There are three notable features:
1, large starting torque.
2, a wide range of operation HF-MP23.
3, no rotation phenomenon.
AC servo motor running smoothly, low noise.
But the control characteristic is non-linear, and because the rotor resistance is big, the loss is big, the efficiency is low,
Therefore, comparred with the same capacity DC servo motor, the volume is large and the weight is heavy,
So it is only suitable for 0 HF-MP23. 5-100W small power control system.
The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
