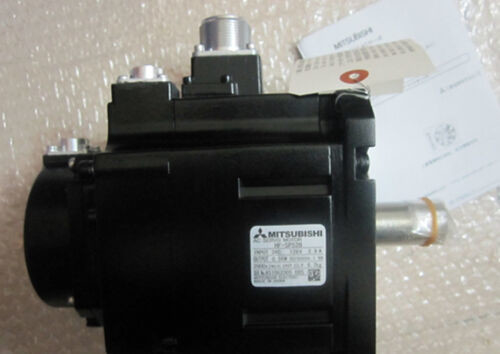

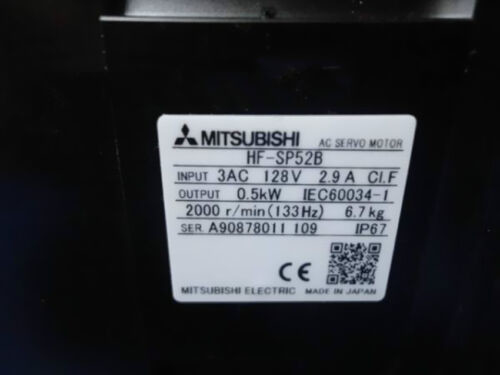

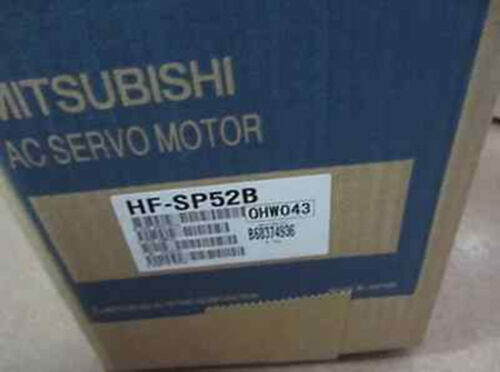

Mitsubishi HF-SP52B AC Servo Motor 3 PHASE 0.5KW 128V 2000RPM NEW

MITSUBISHI HF-SP52B Product information and technical parameters:
Brand: MITSUBISHI
Name: Medium inertia power servo motor
Model: HF-SP52B
Servo motor series: medium inertia, medium power.
Rated output: 0.5kw.
Rated speed: 2000r/min.
Electromagnetic brake: with.
Shaft end specification: Standard (straight axis).

Characteristics: medium inertia has two types of low speed and high speed, suitable for different applications.
IP level: IP67.
Application example:
1, material handling system.
2, industrial robots.
3, X-Y working table.
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Motor capacity selection soft (MRZJW3-MOTSZ111E)
Friendly interface design, only in the mechanical description window input constant and operation mode can choose the best servo amplifier,
The servo motor and the regenerative braking options, but also in the selection window in the selection of linear servo motor and direct drive motor.

Characteristic
(1) 10 typical mechanical transmission structure can be used to choose
(2) user defined operating modes (location and speed control)
(3) in the selection process, the feed speed and torque can be displayed in a graphical format.
(4) the calculation process can be displayed
Can easily calculate the power of the servo motor free software!

MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 7.0kw.
Interface type: SSCNET type III fiber communication.
Full closed loop control.
Power specification: three phase AC200V.
High precision and high response location control.

Full closed loop control can be realized by double feedback control method MITSUBISHI HF-SP52B.
Dual feedback control can be performed between the servo motor encoder and the load side encoder
MR-J3-B-RJ006 can be used in conjunction with a number of manufacturers of linear encoder,
Users can build the system according to their own accuracy requirements. ABS type linear encoder using serial interface,
No need to install the battery on the servo amplifier can easily build the absolute position detection system MITSUBISHI HF-SP52B.
Flexible system configuration.
Can achieve higher load side positioning accuracy!MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 5.0kw.
Interface type: SSCNET type III fiber communication.
Full closed loop control.

Power specification: three phase AC400V.
High precision and high response location control.
Full closed loop control can be realized by double feedback control method MITSUBISHI HF-SP52B.
Dual feedback control can be performed between the servo motor encoder and the load side encoder.
MR-J3-B-RJ006 can be used in conjunction with a number of manufacturers of linear encoder,
Users can build the system according to their own accuracy requirements. ABS type linear encoder using serial interface,
No need to install the battery on the servo amplifier can easily build the absolute position detection system.
Flexible system configuration.
Can achieve higher load side positioning accuracy!Length: 0.5 meters.
Purpose: MR-JE-A, MR-TB50 connection with. Drive unit.

MITSUBISHI universal AC servo amplifier MELSERVO-J4 series.
Rated output: 37kw.
Interface: universal type.
Power supply: three phase AC200V.
Special specifications: full closed control 4 wire / support mechanical end encoder ABZ phase input / support positioning mode.
Support position control, speed control, torque control.
Position control to follow the position instructionns HF-SP52B.
When the control is inserted, the position control is performed.
Speed control follows the speed command to control the speed within a certain range.
Torque control to follow the torque command to control the stable torque.
Function of switching amplitude HF-SP52B. The increase in the process of switching and stopping,
And in the operation of the use of the switching signal, switching growth.
