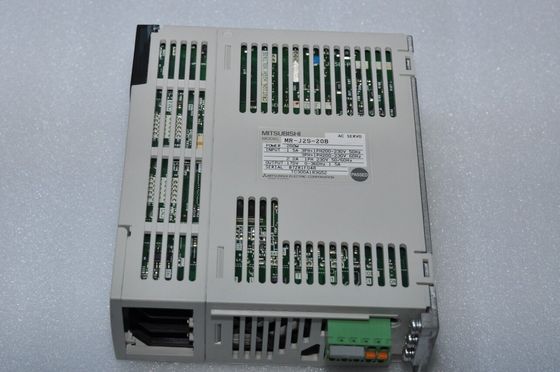

Mitsubishi MR-J2S-20B SERVO AMPLIFIER 1.5/2.2A 200W MR-J2S SERIES NEW

MITSUBISHI MR-J2S-20B Product information and technical parameters:
Brand: MITSUBISHI
Name: SSCNET interface servo amplifier
Model: MR-J2S-20B
"MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 0.2kw.
SSCNET interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Complete synchronization system with SSCNET high speed serial communication,
The communication cycle between the controller and the servo amplifier is the longest 0.888ms.
Such systems will be able to provide high reliability and high performance.
When connecting the servo system with SSCNET,

In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.
Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.
This simple connection method reduces the routing time and helps to prevent noise.
Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.
It is only necessary to add a battery on the servo amplifier, which can form the absolute value system.
Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use. "

Servo motor series: medium inertia, small capacity.
Rated output: 7.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Power supply: 400V.
Stable driving of medium capacity and medium inertia type products.

Through the optimization of structural design, to achieve the minimum length of the industry MITSUBISHI MR-J2S-20B.
High speed & high torque. Shorten the positioning time, achieve high-speed equipment
Reducing the electric torque ripple.
Through the combination of the optimal number of the motor and the slot number, the torque ripple is greatly reduced,
To further realize the smooth constant speed device.
Improve the environmental performance of HG-SR, HG-JR series of products using IP67. MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series MITSUBISHI MR-J2S-20B.
Rated output: 2.0kw.
Interface type: CC-Link communication type (built-in positioning function).
Power specification: three phase AC200V.

Positioning operation by setting position and rotational speed data in the positioning table and receiving the start signal from the main controller.
The setting of the position and speed of the positioning table, as well as the start and stop operation can be completed through CC-Link communication MITSUBISHI MR-J2S-20B.
By using the MR-J3-D01 extension IO unit, the DI/O instruction can be used to select and locate the table.
(CC-Link can not be used for MR-J3-D01 communications).
With built-in positioning function of the servo amplifier, can be set through the CC-Link communications and speed data. (corresponding to the CC-Link version: Ver.1.10)
Can be achieved through the CC-Link communications to start, stop and monitoring and other operations.
Serial communication reduce wiring.
Distributed servo control system can be built by CC-Link communication.

The parameters of unit MR-PRU03 (optional) the parameter setting, operation and monitoring more convenient.
The servo amplifier can be used for speed control operation.
When the two stations are occupied, the speed can be set directly by the remote register. Servo motor series: ultra low inertia, small capacity.
Rated output: 0.1kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Power supply: 200V.
The rated speed is 3000r/min, the maximum speed is 6000r/min.
The maximum torque of 350% of the rrated torque, high torque in the field of high rotation, only to support the HG-KR series products MR-J2S-20B.
Built in absolute position encoder with high resolution.
Standard high resolution absolute position encoder (4194304p/rev (22bit)).
To achhieve a higher accuracy of the positioning function MR-J2S-20B.
Improve the environmental performance of HG-KR, HG-MR, HG-RR, HG-UR series of products using IP65.
