Product Details:
Payment & Shipping Terms:
|
Model: | MR-J2S-100CP-S084 | Type: | AC SERVO AMPLIFIER |
---|---|---|---|
Brand: | Mitsubishi | Condition: | New |

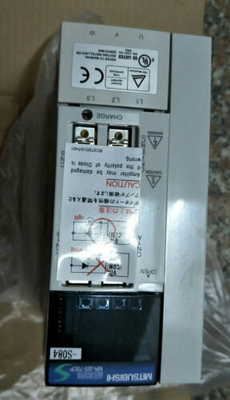

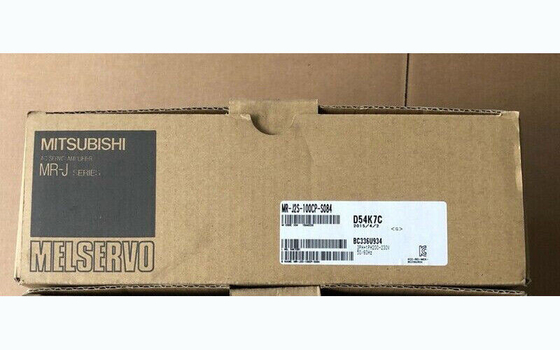

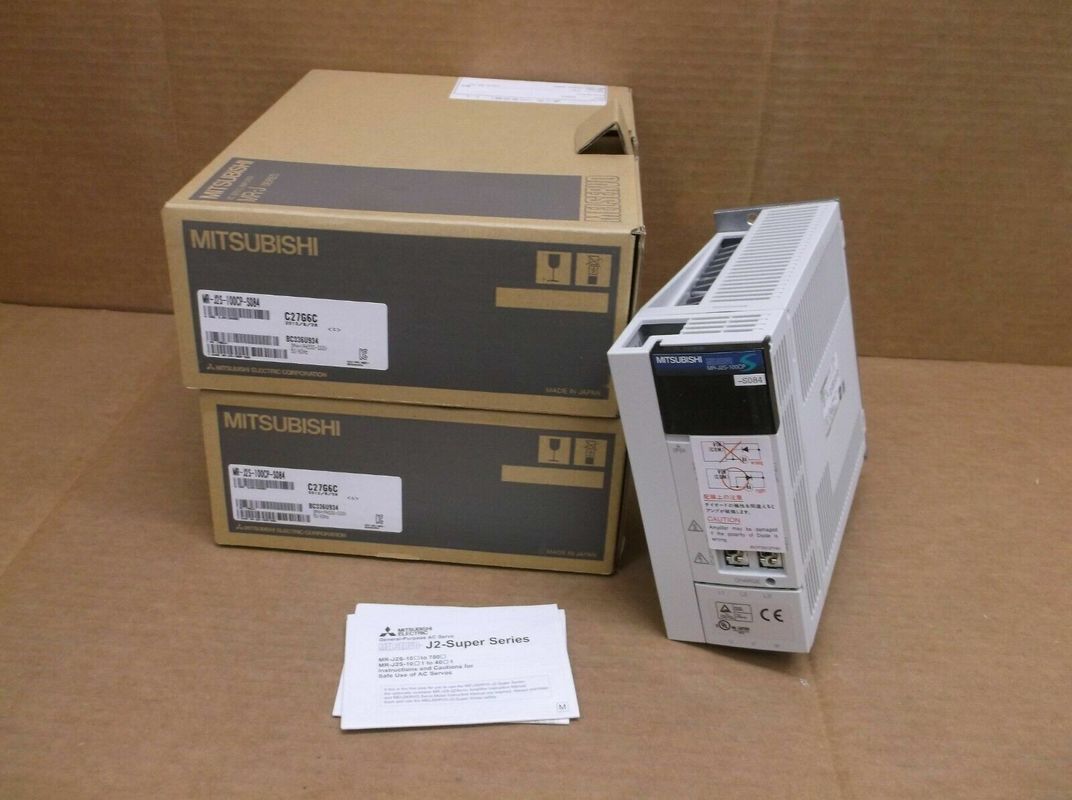

Mitsubishi MR-J2S-100CP-S084 AC SERVO AMPLIFIER CC WITH MOTION TABLE
Specifications Of MR-J2S-100CP-S084
Description | MR-J2S-100CP-S084 is a Drives-AC Servo produced by Mitsubishi |
Drive Type | MR-J2S AC Servo Drive |
Rated Capacity | 1.0kW |
Type | CP |
Power Supply | 200-230 VAC |
Modification | S084 |
Options | None |
MITSUBISHI MR-J2S-100CP-S084 Product information and technical parameters:
Brand: MITSUBISHI
Name: Built in positioning function servo amplifier
Model: MR-J2S-100CP-S084
"MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 1.0kw.
Built in positioning function.
Voltage: 3 phase AC200VAC or single phase AC230V.
Compatible with "MR-J2S- CP-S084" - servo amplifier and interface unit "MR-J2S-TO1" positioning by CC-Link
Simply setting the point table.
AC servo can be used as the driving source of the field network.
Using servo amplifier built-in positioning function, position data and speed data, you can set the CC-Link.
Start, stop and display can also be transmitted through the CC-Link.
Serial communication reduces wiring.
AC servo distributed control system can be easily constructed. "
Motor series: ultra low inertia, low power.
Rated output power: 0.2kw.
Rated speed: 3000r/min.
Whether to take the brake: No.
Shaft keyway: (open slot).
Protection level: IP55 does not include the shaft part and the connector.
Features: ultra low inertia is suitable for high frequency operation.
Application examples: the insertion device, the assembly machine MR-J2S-100CP-S084.
Motor series: low inertia, low power
Rated output power: 0.1kw.
Rated speed: 3000r/min.
Whether to bring the brakes: with.
Shaft end: key shaft (open slot).
Protection level: IP55 does not include the shaft part and the connector.
Features: low inertia is particularly suitable for high speed motor (6000 or 12000 RPM / min) of general industrial machinery MR-J2S-100CP-S084.
Application example 1: drive belt drive, robot.
Application example 2: assembly machine, sewing machine, X-Y working table.
Application example 3: food manufacturing machinery, semiconductor manufacturing equipment, knitting machine and embroidery machine.
High resolution encoder 131072p/rev (17 bit).
The encoder with high resolution ensures excellent performance and stability at low speed MR-J2S-100CP-S084.
All motor dimensions are the same as before and all are compatible with the wiring. Type: HF-KE servo motor, low inertia, low power.
Rated output power: 0.4kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Oil seal: have.
Encoder resolution: 131072p/r.
S100 representative: Super MR-E special motor.
KH003 special mark for Super MR-E.
Servo amplifier terminals are used to reduce the required wiring time.
The connector is located in front of the servo amplifier, which is convenient for cable connection.
The gain adjustment can be easily carried out by the real-time automatic tuning function.
Wide use.
Machining equipment and machine tool feed.
Used for food, packaging equipment and feeding device.
For textile machinery, etc..
Can improve the performance of equipment.
High performance and easy to operate, reduce work load.
Enhanced system cost performance.
High performance, higgh precision positioning (servo motor encoder resolution: 131072) MR-J2S-100CP-S084.
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface MR-J2S-100CP-S084.
The analog input interface is used for speed control and torque control.
The goods is original goods with international standard brand. We supply standard parts number with international standard brand .
If you want to double check the price and shipping cost . Pls. Leave messages to me.
Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.
We also have a varity of industrial parts for sale ,you could contact me for long cooperation
For more information, pls. contact with me by email nancy@viyorktech.com
