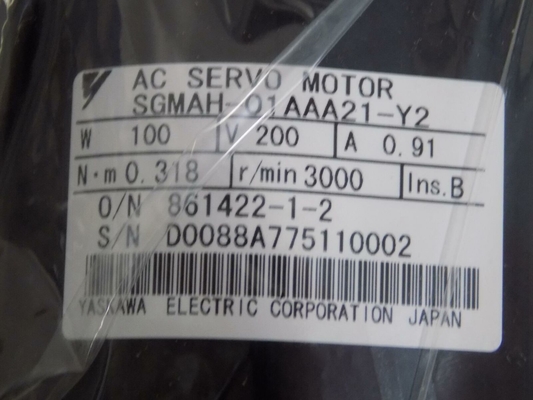

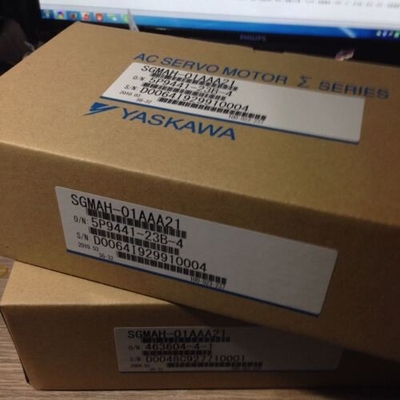

Yaskawa SGMAH-01AAA21 AC SERVO MOTOR 100W 200V 0.91A 3000RPM NEW

Yaskawa SGMAH-01AAA21 Product information and technical parameters:
Brand: Yaskawa
Name: servo motor
Model: SGMAH-01AAA21
Servo motor type SGMAH (speed: 3000r/min).
Power: 0.1kw.
Power supply voltage: single phase AC200V.
Serial encoder: 13 bit relative value.
Design sequence: A.
Shaft end: straight shaft without key.
Optional parts: no brake oil seal.
Improve mechanical properties.

In order to achieve a higher production efficiency, SGDMAH type to the best control to explore the highest performance of the machine,
Compared with the original models, CPU computing time for its 1/2, through the expansion of the new control algorithm,
Positioning time is shortened to the original product of 1/3, to achieve a good response.
The parameter setting and maintenance time is shortened.
In order to establish a high degree system in a short time, the use of the simplicity of the.
Flexible use of online automatic adjustment function,
Automatic adjustment of servo system with mechanical characteristics.
Then use the main loop / control circuit power separation and alarm tracking memory function, can be simple to carry out maintenance

Servo motor type SGMPH (speed: 3000r/min).

Power: 0.1kw.
Power supply voltage: single phase AC100V.
Serial encoder: 16 bit relative value.
Design sequence: A.
Shaft end: straight shaft with key.
Optional parts: with oil seal, DC24V brake.
Partial flat series: the need to install the servo motor in a small space Yaskawa SGMAH-01AAA21.
Flexible user system.
For you to build the best system to enrich the product line to support you
Products with single phase 200V, single phase 100V, three-phase 200V,

And for the absolute value encoder, a variety of motor with brake, belt speed reducer.
And then, because of its compliance with international standards, in the world can be assured that the use of.
Smooth running, there is a very seasonal rate of observation and control,
The speed fluctuation of the motor is greatly reduced, and the speed of the motor can be smoothly operatedLarge capacity SGMVV type servo motor Yaskawa SGMAH-01AAA21.
Rated output: 30KW.
Voltage: three phase AC200V.
Serial encoder: 20 bit delta.
Rated speed: 1500r/min.
The main mechanical structure: flange type, straight shaft (with keyway and screw).
Optional parts: with dust Yaskawa SGMAH-01AAA21.

The use of small, low inertia servo motor, also can give full play to the strength of the mechanical properties.
The new model SGMVV with a rated output of 22~55KW, the amount of passenger speed 800r/min and 1500r/min products.
After the motor is installed, the phase is started to run immediately.
Even if the servo is not adjusted, as long as the moment of inertia is within the allowable range,
Even if the load changes, it can be driven stably, and the vibration will not happenSigma -V series servo motor SGMJV.
Rated output: 0.75KW (750W).
Power supply voltage: AC200V.
Serial encoder: 20 bit Delta (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC24V).
Medium inertia.

Instantaneous maximum torque (rating 350%).
Equipped with a high resolution serial encoder (13/20 bit).
Max speed up to 6000r/min.
Variety is complete (50 ~ 750W, with hold brake).
Use example:
Semiconductor manufacturing equipment,
Placement machine,
Punch printed circuit board,
Robot,
Handling machinery,
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.

Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Innstallation method: flange type SGMAH-01AAA21.
Heat resistance grade: B.
Insulation withstand voltage: AC1500V 1 minutes.
Protection mode: fully enclosed self cooling type IP65 (except shaft through part).
The use of environmental humidity: 20 ~ 80%% (not dew) SGMAH-01AAA21.
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation

The goods is original goods with international standard brand. Ｗe supply standard parts number with international standard brand .

If you want to double check the price and shipping cost . Pls. Leave messages to me.

Price is only for 1pc, one item. Pls. leave a message the part number that you need after you place order.

​We also have a varity of industrial parts for sale ,you could contact me for long cooperation

For more information, pls. contact with me by email nancy@viyorktech.com
